Year: | 2020; | Type: | Open Mixing Mill; |
Dimension(L*W*H): | 1100*600*1250mm; | Power (kW): | 5.5; |
Voltage: | 380V; | Power(W): | 5.5kw; |
Weight: | 650kg; | Showroom Location: | Bangladesh; |
Weight (KG): | 650 KG; | After-sales Service Provided: | Video technical support,Field installation, commissioning and training,Online support,Engineers available to service machinery overseas; |
Diameter of Roll(mm): | 160; | Place of Origin: | Anhui China; |
Condition: | New; | Length of Roll(mm): | 320; |
Brand Name: | FYI; | Payment Terms: | L/C,T/T,Western Union; |
Cooling Mode: | Water cooling; | Applicable Industries: | Manufacturing Plant; |
Supply Ability: | 1000 Set/Sets per Year; | Certification: | CE ISO; |
Package Preview: | ; | Port: | BY NEGOTIATION; |
Packaging Detail: | Standard packaging of two roll mill; | Warranty: | 1 YEAR; |
Rubber and plastic testing: | laboratory rubber two roll mill; | Key Selling Points: | Sustainable; |
After Warranty Service: | Video technical support,Online support; | Local Service Location: | Bangladesh,United Kingdom,Indonesia; |
DW5110 Laboratory Rubber Two Roll Mill
SHORT DESCRIPTION of Two Roll Mill
Two Roll Mill also named rubber two roll mill,open mixing mill,two roll mixing mill,etc. Two roll mill can be divided into oil heating and electric heating according to the heating mode.The user also can choose whether the two roll mill is cooled with water or not when purchasing.
APPLICATION of Two Roll Mill
Laboratory rubber two roll mill. It is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch. It consists of roll, bearing, gap adjusting device, electric control system, safety device, etc.
FEATURES of Two Roll Mill
1, Cylindrical center-adjustable bearing;
2, Hard chromeplated steel rolls, rapid heat transfer, high hardness, high corrosionresistance;
3, Adjustable gap between the two rolls, high accuracy;
4, Electric heating optional for plastics experiments, sensitively and uniformly temperature control, high accuracy;
5, Water cooling optional for rubbers experiments;
6,The two roll mill designed with safety device.
KEY SPECIFICATION of Two Roll Mill
Roll hardness | HRC 55~60 |
Roll diameter of open mixing mill | 160mm |
Roll length | 320mm |
Roll linear speed | 0~20m.p.m |
Roll speed of rubber open mixing mill | 0~40rpm |
Gap adjusting device | manual, 0.1~6mm |
Feeding quantity | 1~2kg |
Reducer of two roll mixing mill | gear reducer |
Safety device | touch type of emergency stop |
Electric power request | 3ph~380V, 26A |
Rubber two roll mill | Plastics experiment | Rubbers experiment |
Speed ratio (front roll: back roll) | 1.25:1 | 1.35:1 |
Motor power | 1.5kw | 5.5kw |
Heating or cooling | Electric heating, 7kw | Water cooling |
Working temperature | Room temperature~300°C | Room temperature |
Temperature accuracy | ±3.5°C |
|
Dimensions(L×W×H) | 1000×550×1250mm | 1100×600×1250mm |
Weight | Approx. 600kg | Approx. 650kg |
STANDARD CONFIGURATION of lab Two Roll Mill:
No. | Item | Quantity |
1. | Main machine | 1 set |
2. | Stainless steel salver | 1 pc |
3. | Tool kit | 1 pc |

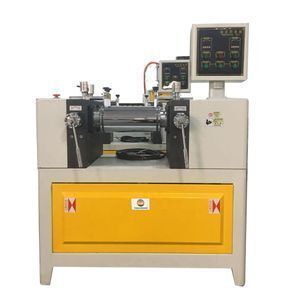

laboratory rubber two roll mill : Main machine(old and new type)
DW5110 Two roll mill---Old type
DW5110 Two roll mill---New type
