Ring Spinning Tester Lab Mini Spinning Machine DW7040H

Supplier: Hefei Fanyuan Instrument Co., Ltd.
Region: Anhui, China
Contact: Ms MIN LIU
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom Location:	Indonesia,Bangladesh;	Yarn density range:	6~99tex (6~100Ne);
Power:	1500w;	Number of spindles:	6;
Packaging Detail:	Standard packaging of ring spinning machine;	Port:	BY NEGOTIATION;
Twist direction:	S or Z;	Supply Ability:	1000 Set/Sets per Year;
Local Service Location:	Indonesia,Bangladesh;	Automatic:	yes;
Function:	Cotton spinning machine;	Package Preview:	;
Payment Terms:	L/C,T/T,Western Union;	Condition:	New;
Control mode:	Touch screen & PLC;	Color:	Blue;
Key words:	Yarn spinning tester;	After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training;
Weight:	430 kg;	Dimension(LWH):	1,0007501,700mm;
Spinning Method:	Ring Spinning;	Product name:	Yarn Spinning Machine;
Ring diameter:	42mm;	After Warranty Service:	Video technical support,Online support;
Application:	Yarn Spinning Machine;	Type:	Spinning Production Line;
Place of Origin:	China;	Production Capacity:	95%-100%;
Certification:	CE ISO;	Brand Name:	FYI;
Applicable Industries:	Manufacturing Plant;	Spinning Equipment:	Wool spinning machine;
Warranty:	1 Year;

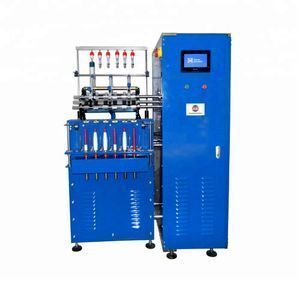

DW7040H Ring Spinning Machine

Application of Ring Spinning Machine:

Ring Spinning Machine is used to spin roving to be spun yarn through drafting and ring spinning. It’s the ideal system for teaching, researching, etc.

Features of Ring Spinning Machine:

l Delta brand PLC, drive, servo motor;

l Use S/Z twist turning;

l Rotation speed of spindle accurate to ±1%;

l Aluminum profile body frame with four casters, free to move;

l Modular independent drive for drafting, spindle blade and flyer;

l PLC + touch screen control, easy to learn and operate;

l Use touch screen as man-machine interface, input technical parameters and show machine running state by touch screen;

l Multi-functional design, easy to clean, set and maintain;

Key Specification of Ring Spinning Machine:

l Control mode	Touch screen & PLC
l Number of spindles	6
l Applicable fiber length	22~50mm
l Draft range	10~50
l Draft control	Automatic
l Roller diameter	Front roller: Φ25mm, middle roller: Φ25mm, back roller: Φ25mm
l Center distance of rollers	Front and middle: 43mm Front and back: 143mm
l Pressure mode	Spring cradle
l Twist settable range	200~2000 twist/m
l Twist direction	S or Z
l Max. speed of spindle	12,000rpm
l Spindle gauge	70mm
l Spindle length	205mm
l Ring diameter	Φ42mm
l Yarn density range	6~99tex (6~100Ne)
l Capacity of ring spinning machine	Approx. 0.25~1kg/h
l Power supply	AC220V, 50Hz
l Dimensions	1,0007501,700mm
l weight of ring spinning machine	430kg
