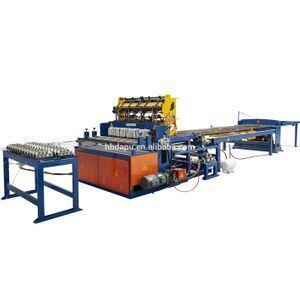

Full automatic wire mesh welding machine for panel and roll

Supplier: Hebei Dapu Import & Export Trade Co., Ltd.
Region: Hebei, China
Contact: Ms Laura Lee
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Place of Origin:	Hebei China;
Color:	As you wish;	Weight (KG):	5000;
Wire diameter:	0.65-12mm;	Packaging Detail:	1. Use steel rope to fix the machine in the container. 2. Wooden package for the electric control cabinet and spare parts. 3. The bottom of the machine is fixed by wooden.;
After-sales Service Provided:	Free spare parts,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;	Certification:	CE;
Wire Diameter (mm):	0.4 - 13;	Welding Speed:	60-180 times/min;
Machine type:	Resistance welding;	Wire materials:	GI, SS, Black wire;
Usage:	Produce Wire Mesh;	Supply Ability:	300 Set/Sets per Year Full automatic wire mesh welding machine for panel and roll;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Farms,Construction works ,Fence;	Payment Terms:	L/C,T/T,Western Union,RMB;
Port:	Xingang Port, China;	Brand Name:	DAPU;
Container needed:	120GP or 140GP;	Warranty:	2 Years;
Voltage:	220V/380V/415V/440V;	Key Selling Points:	Advanced machine technologies;
Production Capacity:	500 sets per year;	Model Number:	DP-FP;
Power (kW):	5.5;	Finished product:	Panel mesh or roll mesh;

Different types of wire mesh machines

Mesh welding machine series:

Reinforcing mesh welding machine, 3D fence panel welding machine, chicken cage welding machine, steel grating welding machine, roll mesh welding machine, cold rolling steel bar ribbed machine, wire straightening and cutting machine etc.

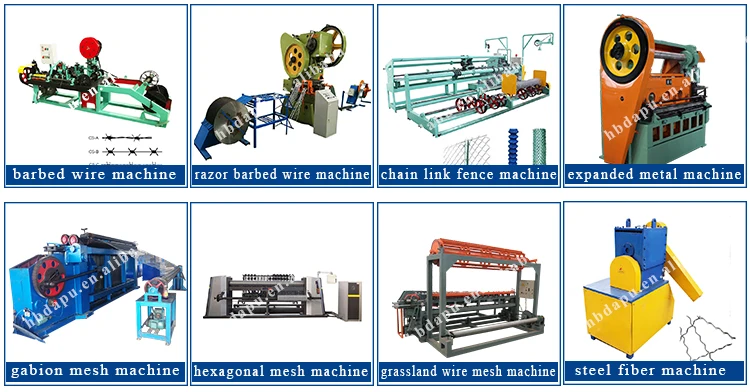

Mesh weaving machine series:

Chain link fence machine, barbed wire machine, concertina razor barbed wire machine, wire drawing machine, expanded metal mesh machine, hinge joint fence machine, gabion mesh machine, hexagonal wire mesh machine, steel fiber machine etc.

Mesh welding machine

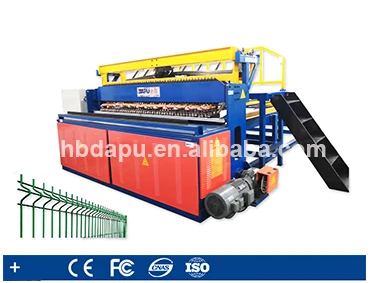

		Fence mesh welding machine Machine DP-FP-2500A, mechanical type, is used to make 3D fence panel. Machine DP-FP-3200A+, pneumatic type, is used to make anti climb fence, can also make 3D fence panel.

Model	DP-FP-2500A/3200A+	Wire diameter	2.5-6mm
Line wire pitch	50-300mm/76.2-300mm	Welding torch	48pcs/44pcs
Cross wire pitch	Min.12.7mm	Welding speed	Max.70times/min
Welding width	Max.2.5m/Max.3200mm	Welding transformer	150kva*6/11pcs
Mesh length	Max.4m	Mesh type	Panel mesh

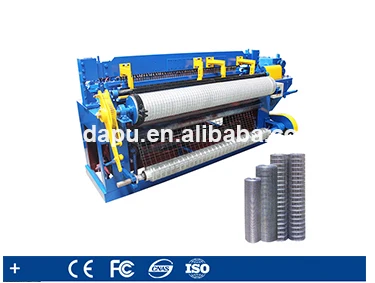

		Welded wire mesh machine in roll We can design this machine according to the wire diameter range, mesh hole size and mesh width you want. This machine is full automatic, only need one person to operate.

Model	DP-DNW	Wire diameter	0.65-2.8mm
Line wire pitch	1/2", 1", 2", 4", 6" etc	Cross wire pitch	1/2", 1", 2", 4", 6" etc
Mesh width	0.9-2.5mm	Main motor	2.2kw/4kw/5.5kw/7.5kw
Welding transformer	60-125kva*3/4/5/7/8pcs	Welding speed	Max.60-180 times/min
Weight	2T/2.5T/3T/3.5T/4T	Mesh type	Roll mesh

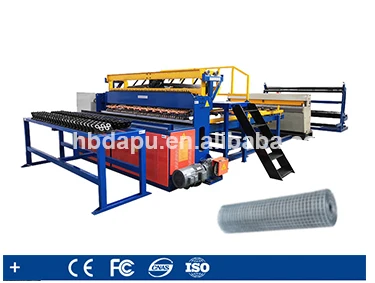

		Roll mesh welding machine This machine can make 2.5-6mm mesh panels and mesh rolls. It is equipped wire pay-off, straight setting equipment, mesh cutting machine, mesh rolling machine.

Model	DP-FP-2500BN	Wire diameter	2.5-6mm
Line wire pitch	50-300mm	Cross wire pitch	Min.50mm
Welding width	Max.2500mm	Roll length	Max.100mm
Welding speed	Max.75 times/min	Welding torch	48pcs
Welding transformer	150kva*6pcs	Mesh type	Panel&roll mesh

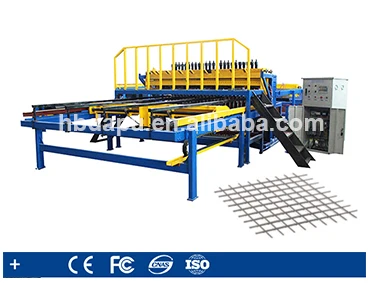

		Reinforcing mesh welding machine Pneumatic type machine, controlled by multi-force air cylinders. The welding speed can be up to 80-100 times/min. Material can be round bar and ribbed bar, widely used in construction.

Model	DP-GW-2500A	Wire diameter	3-8mm/5-12mm
Line wire pitch	100-300mm	Cross wire pitch	Min.50mm
Mesh length	Max.12m	Mesh width	Max.2500/3000mm
Welding torch	Max.24/30pcs	Welding transformer	150kva*6/8/12/15pcs
Welding speed	80-100 times/min	Mesh type	Panel mesh

		Chicken cage wire mesh welding machine This machine can make wire mesh for chicken cages and construction mesh. The welding speed is very high. Max.140 times/min. It's used to make breed aquatic mesh,poultry mesh,coop,pigeon mesh,rabbit mesh etc.

Model	DP-AW-1200H	Wire diameter	2-4mm
Mesh width	Max.1200mm/1600mm	Line wire pitch	Mostly 50-300mm
Welding speed	Max.140 times/min	Cross wire pitch	Min.20mm or less
Welding torch	25/32pcs	Welding transformer	125kva*3/4pcs
Weight	2.5T/4T	Mesh panel	Panel mesh and roll mesh
