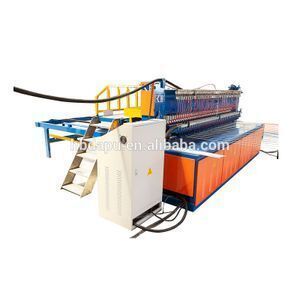

358 welded wire mesh 3D fence panels making machine manufacturer

Supplier: Hebei Dapu Import & Export Trade Co., Ltd.
Region: Hebei, China
Contact: Ms Laura Lee
Price: $19800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	20 Set/Sets per Month 358 welded wire mesh 3D fence panels making machine manufacturer;	Weight (KG):	5500;
Need air compressor:	0.3m^3;	Brand Name:	DAPU;
Mesh length:	Max.6000mm;	Condition:	New;
Warranty:	1 Year;	Warranty of core components:	1 Year;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,RMB payment for offline order, Cash and so on.;	Rated Capacity:	125KVA*6pcs;
Dimensions:	4.93.41.6m;	Core Components:	PLC,Motor;
Need power supply:	Min.160kva;	After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;
Welding width:	Max.3000mm;	Port:	XinGang port;
Longitude wire space:	50-300mm;	Marketing Type:	Ordinary Product;
Cooling system:	Water cooling;	Place of Origin:	Hebei China;
Key Selling Points:	High productive;	Cross wire space:	Min.25mm/Min.12.7mm;
Machinery Test Report:	Provided;	Showroom Location:	India;
Packaging Detail:	358 welded wire mesh 3D fence panels making machine manufacturer 1. The main machine and auxiliary equipment will be with plastic package, spare parts in carton box. 2. The main machine will be fixed in the container by steel wire rope to make it stable.;	Application:	Mesh fence/construction;
Wire diameter:	2.5-6mm;	Applicable Industries:	Food & Beverage Factory,Farms;
Welding speed:	70-120 times/min;	Local Service Location:	India;
Video outgoing-inspection:	Provided;	After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Usage:	Welded wire mesh fence panels making machine;	Primary Voltage:	380V/220V/415V/440V 50Hz/60Hz;
Rated Duty Cycle:	10%;

Product Description

3D fence panel machine(DP-FP-2500A)

Automatic 3D fence panel machine(DP-FP-3000AN)

358 Anti-climb fence machine(DP-FP-3200A+)

We can supply different types of fence panel machine. Below three models are the most popular.

DP-FP-2500A, this machine is common type, the bending is manual. This machine adopts many famous brand electric parts, the main motor connects with main aixs directly, the mesh pulling is controlled by Panasonic servo motor.

DP-FP-3000AN, it is specially designed to make the bending automatic. The bending machine is connected to the welding machine. After finish welding, the mesh pulling car can send the fence mesh to bending part automatically, then the bending machine can bend after each pulling.

DP-FP-3200A+, it is specially designed to make anti-climb fence (358 fence). Each welding electrode is controlled by one SMC air cylinder, the pressure can be totally same. So the welding points are even, the finished mesh is flattened. The bending is manual.

We can design the machine according to your wire diameter, mesh hole size and mesh width.

Technical Parameters

Model	DP-FP-2500A	DP-FP-3000AN	DP-FP-3200A+
Wire diameter	3-6mm
Line wire space	50-300mm	50-300mm	76.2-300mm
Cross wire space	Min.25mm	Min.25mm	Min.12.7mm
Width of mesh	Max.2.5m	Max.3m	Max.3200mm
Length of mesh	Max.3.2m	Max.3m	Max.4000mm
Welding electrodes	48pcs	61pcs	44pcs
Welding transformer	150kva*6pcs	160kva*8pcs	150kva*11pcs
Welding speed	Max.70 times/min	Max.60 times/min	Max.120 times/min
Line wire feeding	Pre-straightened&pre-cut
Cross wire feeding	Pre-straightened&pre-cut
Weight	3.6T	7.4T	5.4T
Machine size	4.93.41.6m	123.72.5m	5.43.72.3m
Bending way	Manual	Automatic	Manual
