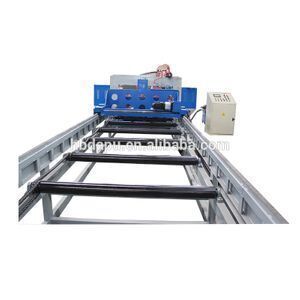

Electro forge steel grating welding machine

Supplier: Hebei Dapu Import & Export Trade Co., Ltd.
Region: Hebei, China
Contact: Ms Laura Lee
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Bearing flat bar dia:	2.525-565mm;	Brand Name:	DAPU;
Warranty:	2 Years;	Rated Capacity:	1600kw;
Dimensions:	1800038004800mm;	Grating width:	1m;
Welding speed:	70-100m^2/8h;	Usage:	Steel grating welding machine;
Primary Voltage:	380V adjustable;	Cross bar diameter:	5-8mm;
Place of Origin:	Hebei China;	Supply Ability:	30 Set/Sets per Year Electro forge steel grating welding machine;
Weight:	13T;	Cross bar space:	38-160mm;
Rated Duty Cycle:	50%;	Packaging Detail:	Wooden pallet and plastic package in the container or according to the requirement of clients.;
Max pressure:	160T;	Grating length:	6m;
Welding frequency:	1000Hz-intermediate frequency;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,different payment terms for different countries;	Port:	TIANJIN;
Bearing flat bar space:	25-60mm;

Electro forge steel grating welding machine

Technical Parameters

Model	DP-1200GS	DP-1200G
Flat bar thickness	2.5-6mm	2-10mm
Cross bar depth	25-65mm	19-100mm
Flat barb space	25mm/30mm/40mm	20-60mm
Cross bar range	55-88mm	55-88mm
Cross bar space	50-160mm	38-160mm
Grating width	Max.1.2m	Max.1.2m
Grating length	Max.6m	Max.8m
Production capacity	30-100m∧2/8hours	8-9seconds/time
Welding transformer	250kva*2pcs	250kva*10pcs
Over size	162.51.5m	382.51.5m
Weight	3550kg	30000kg

♦ we can design the machine according to your wire diameter,mesh hole size and mesh width

Advantage of the machine

1. Material: flat bar,serrated bar,twisted bar,round bar.

2. This machine asopts PLC program and touch screen,very easy to operate.

3.The machine adopts international brand servo motor to pull grating, more stable, high precision. (new design)

4. This machine adopts specially designed mesh mould to fix flat bars. The flat bar space is fixed, flat bar thickness and width can be adjusted within range on one mould.

5. This machine adopts advanced medium frequency(1000Hz)technology.

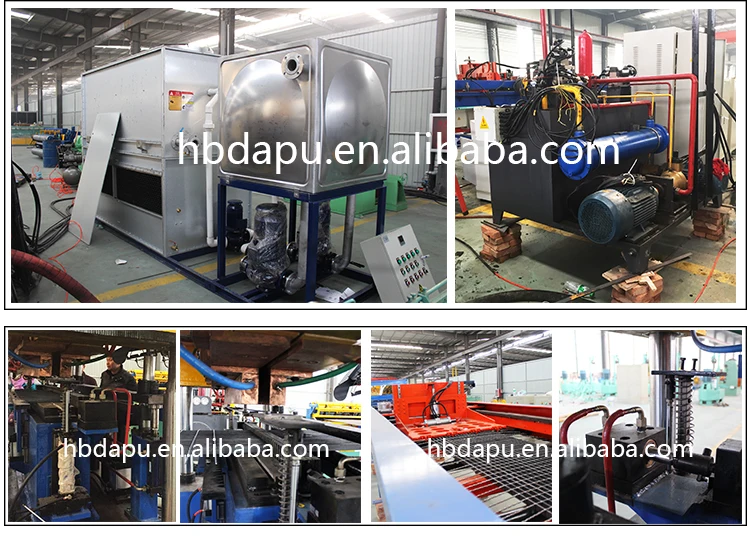

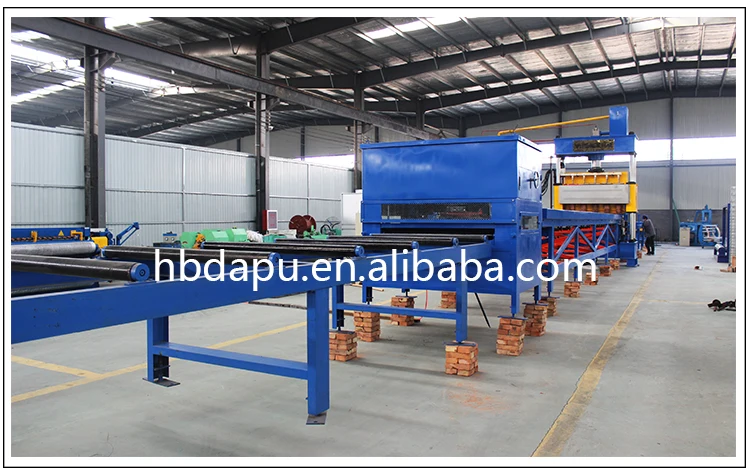

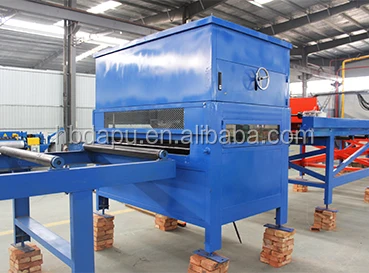

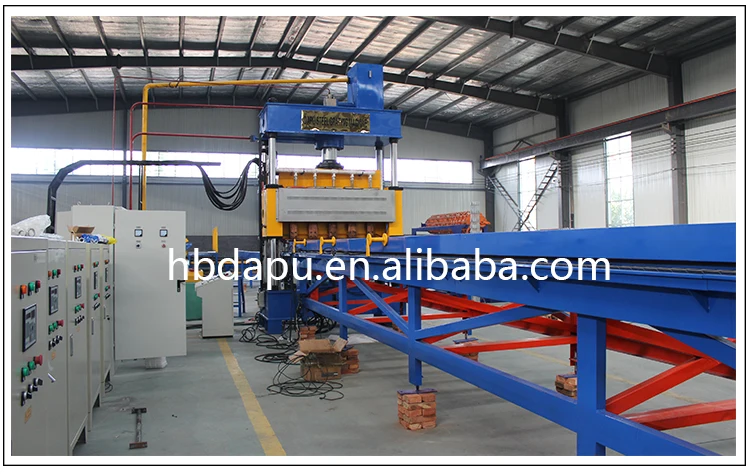

Machine in workshop

Product details

Auxiliary Equipments

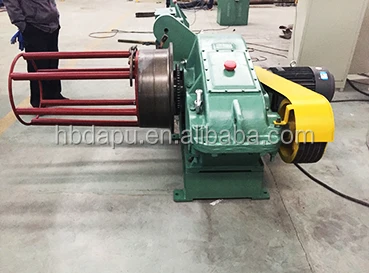

Steel grating cutting machine	Twisted square bar drawing machine

Related product

Company Information

FAQ

Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.

Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.

Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.

Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.

Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
