250ml boiling flask Distillation soxhlet extraction apparatus

Supplier: Aibote Henan Science And Technology Development Company Limited
Region: Henan, China
Contact: Ms sunny ding
Price: $13.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Usage:	for 125ml , 250ml .500ml and 1000ml soxhlet extraction;	boiling flask:	250ml;
Soxhlet extractor:	255mm;	Product name:	250ml boiling flask Distillation soxhlet extraction apparatus;
Condenser joint Size:	40/38;	Model Number:	ABTD250;
manufacturer:	yes;	Condenser Length:	300mm;
Place of Origin:	Henan China;	Payment Terms:	T/T,Western Union,MoneyGram;
Glass material:	G17;	Packaging Detail:	carton;
Brand Name:	AIBOTE;	Port:	SHANGHAI , BEIJING , GUANGZHOU , SHENZHEN ,;
Extraction thimble Bottom Joint size:	24/29;	Supply Ability:	1000 Set/Sets per Month;
Classification:	Other;	Certificate:	CE;

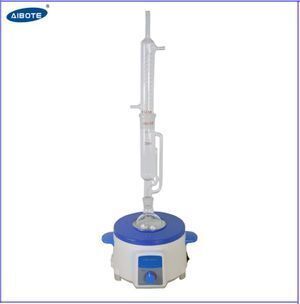

250ml boiling flask Distillation soxhlet extraction apparatus

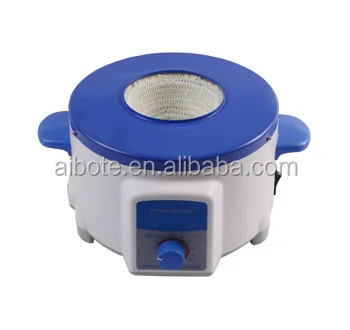

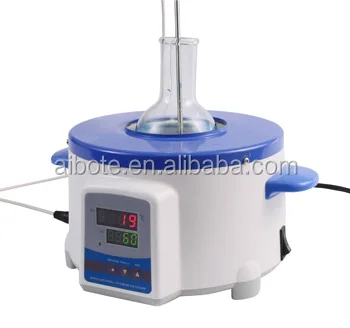

Soxhlet distillation extraction removes liquid phases (oil and brine) from core samples by virtue of a solvent vaporization and condensation process. The cleanliness of the sample is determined from the color of the solvent once it has permeated from the samples and condensed. The samples are placed in the extractor and cleaned by refluxing solvent. The solvent in this closed system is externally heated and vaporized continuously in a flask, flow through the samples in the extraction tube, condenses at the top of the assembly. The condensate falls back into the sample chamber. When the latter is full, the dirty solvent returns to the flask via a siphoning reflux sidearm located at the base of the sample chamber. Due to the difference in boiling point temperatures, only the solvent evaporates while the oil finds itself trapped in the flask. The apparatus consists of a distillation/extraction glassware unit and a heating mantle with thermostatic controller. The first comprises a boiling flask, soxhlet extractor and condenser. Flexible plastic tubing connects the condenser to the water cooling unit. The assembly is supported by a clamp screwed to a vertical rod, itself fixed to the heating mantle.

Model	ABTD125	ABTD250	ABTD500	ABTD1000
Flask Capacity	125mml	250ml	500ml	1000ml
Flask shape	can be round bottom used together with heating mantle or flat bottom used hotplate stirrer .
Flask Joint	24/29	24/29	24/29	24/29
Soxhlet extractor/ Extraction thimble Length	235mm	255mm	290mm	330mm
Soxhlet extractor/ Extraction thimble Bottom Joint size	24/29	24/29	24/29	24/29
Soxhlet extractor/ Extraction thimble Upper Joint size	40/38	40/38	40/38	40/38

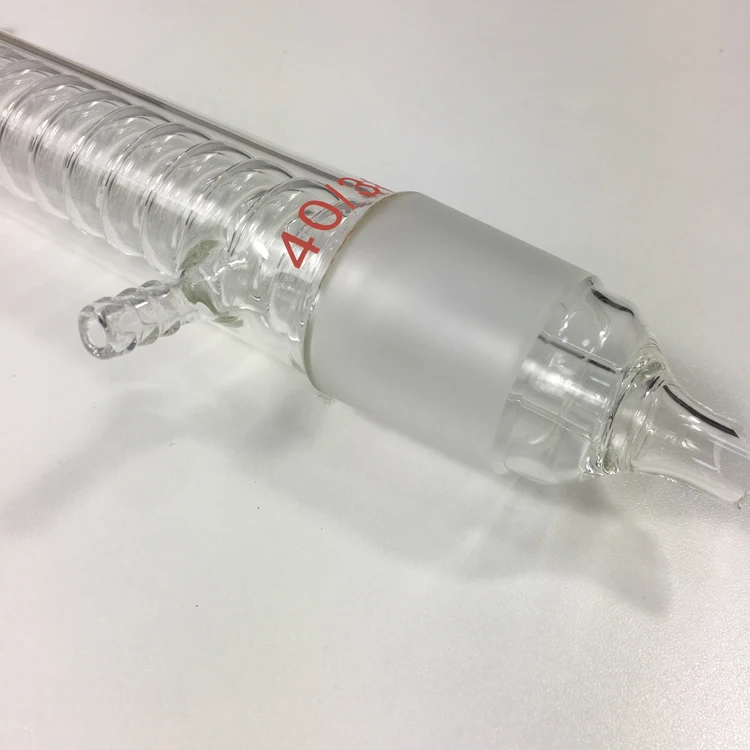

Condenser length	300mm	300mm	330mm	360mm
Condenser joint Size	40/38	40/38	40/38	40/38
