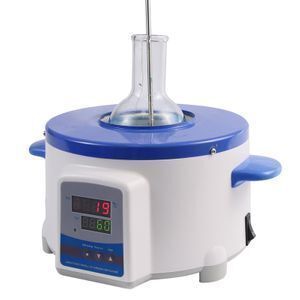

lab instrument 50 - 1000ml manual control heating mantle

Product details
Supply Ability:2000 Set/Sets per Month;Dimensions:180x90;
Packaging Detail:1set / carton or as client's request;Operating Temperature:360 centigrade;
Payment Terms:T/T,Western Union,paypal;Model Number:ZNHW-II;
Weight:1.1kg;Measuring Range:1000ml;
Supply Voltage:220V 50HZ(we can manufacture 110 V 50HZ/ 60 HZ);Certificate:CE;
Delivery Detail:3 days after the receipt of the payment;Place of Origin:Henan China;
Display Type:Digital Only;competitive price:stable performance;
Usage:for lab heating instrument;Classification:Laboratory Heating Equipments;
Port:Shanghai;Brand Name:AIBOTE;
Accuracy Class:grade 1;

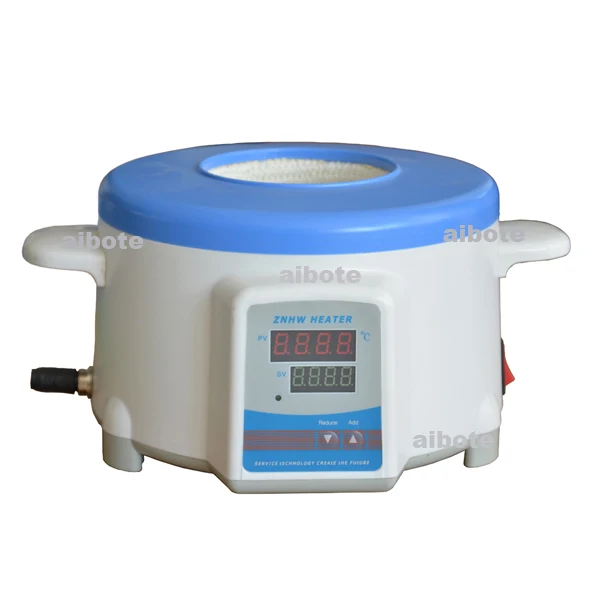

lab instrument 50 - 1000ml manual control heating mantle

Model : ZNHW-II1000

HS : 8543709990



2 years warranty offered

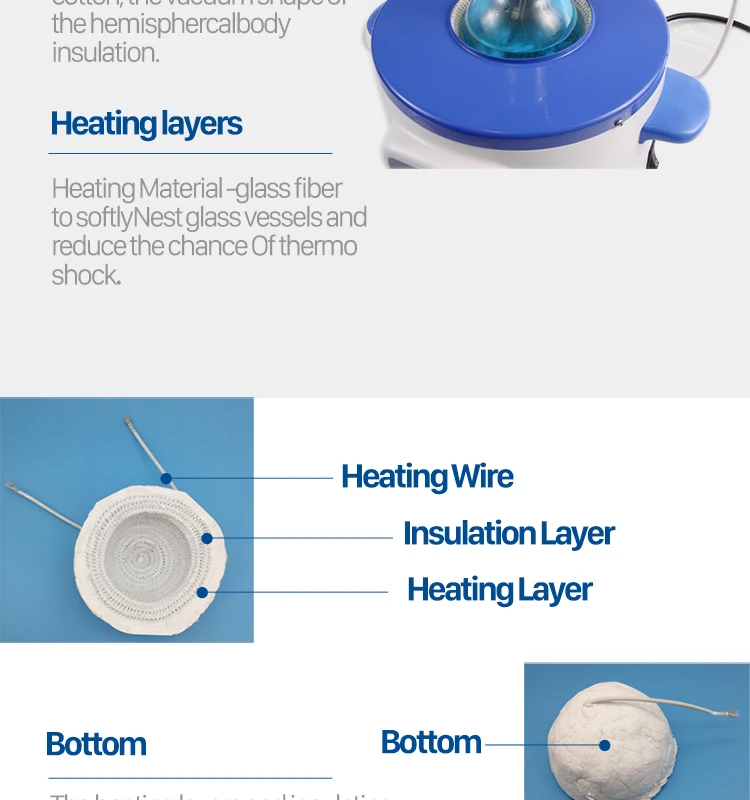

AIBOTE Heating Mantles are manufactured to the highest quality in  China manufacturing facility .Our heating mantles  made of alkali-free glass fiber insulation material, the Cr20Ni80 alloy wire spring installed in them, with aluminum silicate cotton by the vacuum shape of the hemispherical insulation body insulation. Each mantle is made with extreme care and is hand sewn to assure its reliability, quality and safety. Maximum heat transfer to the sample is achieved by having excellent insulation around the cartridge and good flask coverage. All AIBOTE mantles go through the 'burn off' procedure at the end of the manufacturing process enabling use straight out of the box.





And our mantle including stirring heating mantle ZNCLTS series , ZNCLT series, TWCLT series ,single heating  mantles ZNHW series , ZNHW-II series, PTHW series , multi- position stirring and without stirring heating mantle , both can be digital display and analog for each units . Offered in a wide range of sizes to accomodate large flasks to small beakers, these heating mantles are CE  certified. OEM also available for us. Can be widely used with hotplate stirrers, glasswares ,reaction bath for heating and Fractional distillation in schools , institutes, Large chemical plants ,ect.





 Main Feature



Heating mantle Volcume





 1000ml

Temperature Range



ambient to 400 degree, digital display , +/- 1 accuracy , PID control



Sale ways



 Manufacturer directly sales



 TECHNICAL SPECIFICATION



Model

ZNHW-II 1000ML

Capacity  (mm)

1000 ml for round bottom flask

Heating Temperature Range ( )

Ambient to 400 degree

Temperature  Control

PID  . Inner and Outer Temperature sensor ,LED Display

Temperature Range

Ambient to 380

Temperature Display

+/- 1 degree

Permissible Ambient Temperature

Ambient Temperature to 40 degree

Voltage

110v - 240v

Power(w)

530 W

Temperature Accuracy

±1 degree

Stirring Flask Capacity (ml)

1000ml

Packing Dimension (mm)

480 × 320 × 200

Shipping Weight (kg)

2. 5 kg

Shell material

Superfine metal







Product Description



FAQ





1 Are you a factory or trading company ?



A : We are a factory



2 .Where is your company location ? How can i  visit there ?



A :Our factory is in zhengzhou city ,henan province , China , near XINZHENG INTERNATIONAL AIRPORT , you can fly to ZHENGZHOU AIRPORT to us , welcome to visit us !



3.What the material  of your products ?



A: superfine ceramic for top plate for all of our stirrers ,metal shells , can be customized as your requests



4. How can i  get some  sample ?





A. We are honored to offer sample for your evaluation



5. How  does your company do regarding to the products quality control ?



A : Quality is the most important. BV Intertek  ,SGS authentication
