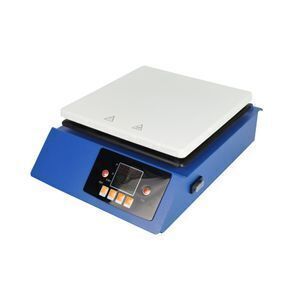

Ceramic Small Magnetic Surface Hot Plate With Digital Temperature Control

Product details
Motor Type:Brushless motor, 40W , DC20;Product name:Hot Plate With Digital Temperature Control;
Stir speed:100-1800rpm;Brand Name:AIBOTE;
Classification:Laboratory Heating Equipments;Model Number:ZNCLBS1280;
Payment Terms:L/C,T/T,Western Union,MoneyGram,paypal;Place of Origin:China;
Power supply:220V 50/60Hz, or 110V 60Hz;Shell Material:Aluminum alloy;
Heating Power:1000W;Port:shenzhen shanghai qingdao tianjin;
Packaging Detail:carton or wooden box.;Max temperature:320 C for to plate;
Display:Digital Display;Supply Ability:1000 Set/Sets per Month;
Application:hot plate magnetic stirrer 20L;stir volume:50ml-20L;



AIBOTE Ceramic Small Magnetic Surface Hot Plate With Digital Temperature Control made of Ceramic top plate , PID Temperature control and digital display which offers excellent chemical resistance .





1. White cermic coated top plate provide excellent chemical resistance, thermal-proof , and corrossion resistance, bright white color ceramics coated plate enhance sample visibility.Black ceramics are also available
2. Max Temperature for machine : 400degree , and max temperature for top plate surface: 325degree
3. White color and black color ceramics are both available .
4. Imported Brushless Stir motor , 100-1800 rpm, digital display
5. Square top plate and round top plate are both available
6. Shell color : blue or white
7. Manufacturer
8.CE  ISO .



+

Model

ZNCLBS1140

ZNCLBS1180

ZNCLBS1230

ZNCLBS1280

Top Plate Dimension (mm)

140X 140

180 X 180

230 X 230

280X 280

Top Plate Dimension(Inch)

5.51x5.51

7.09x7.09

9.05x9.05

11.02x11.02

Temperature  Control

PID Auto control .

Top Plate Shape

Round or Square

Top Plate Material

Ceramic

Temperature Range for machine

Ambient to 400 degree.

Max Temperature for top plate

325 degree

Top Material

White ceramics and Black Ceramic are Both available .

Temperature Display  (°C )

Digital Display

Temperature control

PID Auto control

Temperature accuracy

+/- 1 degree.

Thermocouple probe /sensor type

PT100  , with inner and outer thermocouple .

Stir Speed

100- 1800 RPM

Stir Display

Digital display

Stir speed accuracy

+/- 1 rpm

Permissible Ambient Temperature

Ambient Temperature to 40°C

Voltage

160 - 240V , or 110- 130V.

Heating Power supply (w)

450

550

750

1000

Motor Power supply

40 W.DC 20

40 W.DC 20

40 W.DC 20

40W.DC20

Machine power supply

500

600

800

1100

Stirring Flask Capacity (ml)

50ML - 2L

50ML-5L

50ML-10L

50ML - 15L

Overall Dimensions (mm)

( L × W × H )

295X190X104

391 X245X120

445 X353 X

283

495 × 382 ×315

Packing Dimension (mm)

350 X250 X 150

440X 290X 170

500X 400X 350

550X 420 X 370

Shipping Weight (kg)

3.5kg.

5.1

6.9KG

8.2kg.

Shell material

Time molding waterproof and dustproof shell with Anti-static paint



Product Description

Company Information



FAQ



1 Are you a factory or trading company ?



A : We are a factory



2 .Where is your company location ? How can i  visit there ?



A :Our factory is in zhengzhou city ,henan province , China , near XINZHENG INTERNATIONAL AIRPORT , you can fly to ZHENGZHOU AIRPORT to us , welcome to visit us !



3.What the material  of your products ?



A: superfine ceramic for top plate for all of our stirrers ,metal shells , can be customized as your requests



4. How can i  get some  sample ?





A. We are honored to offer sample for your evaluation



5. How  does your company do regarding to the products quality control ?



A : Quality is the most important. BV Intertek  ,SGS authentication
