Heater And Hotplate Thermostatic Digital Magnetic Stirrer

Supplier: Aibote Henan Science And Technology Development Company Limited
Region: Henan, China
Contact: Ms sunny ding
Price: $49.00 /set
Min. Order: 1 set

Click here to contact

Product details

Stir volume:	2L,5L,10L,15l for beaker or Erlenmeyer;	Stir Speed:	100-1800rpm , digital display;
Magnetic Stirrer Motor:	40W, DC20;	Certificate:	CE Certificate;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Supply Ability:	9000 Set/Sets per Year;
Top Plate Shape:	square or round plate;	Max temperature:	325 Celsius;
Machine Power:	750W;	Application:	Laboratory magnetic stirrer;
Top Plate Material:	white or black ceramic coated;	Place of Origin:	Henan China (Mainland);
Model Number:	ZNCLBS1180;	Brand Name:	aibote;
Packaging Detail:	Carton , wooden box if via sea;	Top plate size:	140mm, 180mm,230mm,280mm are all available;
Classification:	Laboratory Heating Equipments;	Port:	SHANGHAI , BEIJING , TIANJIN , GUANGZHOU , SHENZHEN;

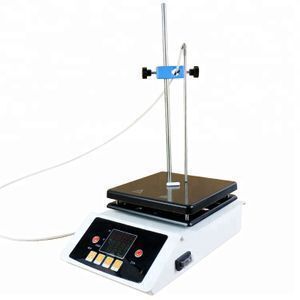

AIBOTE new Digital Hotplate laboratory magnetic stirrer mixer with Heater made of Ceramic top plate , PID Temperature control and digital display which offers excellent chemical resistance .

a. White cermic coated top plate provide excellent chemical resistance, thermal-proof , and corrossion resistance, bright white color ceramics coated plate enhance sample visibility.

b. Fixed safety circuit of 400 °C !

b. Smooth acceleration of stirring speed ensures no spillage.

C. digital display for temperature reduce , add and set

d. Heat only, stir only or heat and stir together function .

e.Electronic speed control for constant speed even during change in load .

f. High magnetic adhesion .

G. Various Sizes of the top flexible choice. four sizes , black and white ceramic are all available

Model	ZNCLBS1140	ZNCLBS1180	ZNCLBS1230	ZNCLBS1280
Top Plate Dimension (mm)	140X 140	180 X 180	230 X 230	280X 280
Top Plate Dimension(Inch)	5.51x5.51	7.09x7.09	9.05x9.05	11.02x11.02
Temperature Control	PID Auto control .
Top Plate Shape	Round or Square
Top Plate Material	Ceramic
Temperature Range for machine	Ambient to 400 degree.
Max Temperature for top plate	325 degree
Top Material	White ceramics and Black Ceramic are Both available .
Temperature Display (°C )	Digital Display
Temperature control	PID Auto control
Temperature accuracy	+/- 1 degree.
Thermocouple probe /sensor type	PT100 , with inner and outer thermocouple .
Stir Speed	100- 1800 RPM
Stir Display	Digital display
Stir speed accuracy	+/- 1 rpm
Permissible Ambient Temperature	Ambient Temperature to 40°C
Voltage	160 - 240V , or 110- 130V.
Heating Power supply (w)	450	550	750	1000
Motor Power supply	40 W.DC 20	40 W.DC 20	40 W.DC 20	40W.DC20
Machine power supply	500	600	800	1100
Stirring Flask Capacity (ml)	50ML - 2L	50ML-5L	50ML-10L	50ML - 15L
Overall Dimensions (mm) ( L × W × H )	295X190X104	391 X245X120	445 X353 X 283	495 × 382 ×315
Packing Dimension (mm)	350 X250 X 150	440X 290X 170	500X 400X 350	550X 420 X 370
Shipping Weight (kg)	3.5kg.	5.1	6.9KG	8.2kg.
Shell material	Time molding waterproof and dustproof shell with Anti-static paint
