7.09x 7.09 1inch Ceramic Digital Hotplate laboratory magnetic stirrer mixer with Heater

Product details
Stir Speed:100-1800rpm , digital display;Supply Ability:1000 Set/Sets per Month;
Model Number:ZNCLBS1140;Machine Power:550W;
Place of Origin:Henan China (Mainland);Magnetic Stirrer Motor:40W, DC20;
Packaging Detail:carton for 7.09x 7.09 1inch Ceramic Digital Hotplate laboratory magnetic stirrer mixer with Heater;Payment Terms:L/C,T/T,Western Union,MoneyGram,paypal;
Max temperature:325 Celsius;Top Plate Shape:square or round plate;
Port:shenzhen,shanghai,qingdao,tianjin;Classification:Laboratory Heating Equipments;
Application:Laboratory magnetic stirrer mixer;Stir volume:2L,5L,10L,15l for beaker or Erlenmeyer;
Certificate:CE Certificate;Brand Name:aibote;
Top plate size:140mm, 180mm,230mm,280mm are all available;Top Plate Material:white or black ceramic coated;

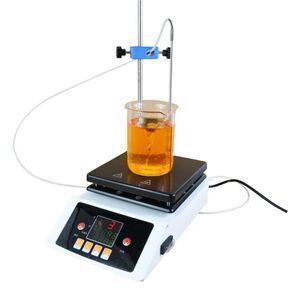

AIBOTE  new  Digital Hotplate laboratory magnetic stirrer mixer with Heater made of Ceramic top plate , PID Temperature control and digital display which offers excellent chemical resistance .



a. White cermic coated top plate provide excellent chemical resistance, thermal-proof , and corrossion resistance, bright white color ceramics coated plate enhance sample visibility.

b. Fixed safety circuit of 400 °C !

b. Smooth acceleration of stirring speed ensures no spillage.

C. digital display for temperature reduce , add and set

d. Heat only, stir only or heat and stir together function  .

e.Electronic speed control for constant speed even during change in load .

f. High magnetic adhesion .

G. Various Sizes of the top flexible choice. four sizes , black and white ceramic are all available



Model

ZNCLBS1140

ZNCLBS1180

ZNCLBS1230

ZNCLBS1280

Top Plate Dimension (mm)

140X 140

180 X 180

230 X 230

280X 280

Top Plate Dimension(Inch)

5.51x5.51

7.09x7.09

9.05x9.05

11.02x11.02

Temperature  Control

PID Auto control .

Top Plate Shape

Round or Square

Top Plate Material

Ceramic

Temperature Range for machine

Ambient to 400 degree.

Max Temperature for top plate

325 degree

Top Material

White ceramics and Black Ceramic are Both available .

Temperature Display  (°C )

Digital Display

Temperature control

PID Auto control

Temperature accuracy

+/- 1 degree.

Thermocouple probe /sensor type

PT100  , with inner and outer thermocouple .

Stir Speed

100- 1800 RPM

Stir Display

Digital display

Stir speed accuracy

+/- 1 rpm

Permissible Ambient Temperature

Ambient Temperature to 40°C

Voltage

160 - 240V , or 110- 130V.

Heating Power supply (w)

450

550

750

1000

Motor Power supply

40 W.DC 20

40 W.DC 20

40 W.DC 20

40W.DC20

Machine power supply

500

600

800

1100

Stirring Flask Capacity (ml)

50ML - 2L

50ML-5L

50ML-10L

50ML - 15L

Overall Dimensions (mm)

( L × W × H )

295X190X104

391 X245X120

445 X353 X

283

495 × 382 ×315

Packing Dimension (mm)

350 X250 X 150

440X 290X 170

500X 400X 350

550X 420 X 370

Shipping Weight (kg)

3.5kg.

5.1

6.9KG

8.2kg.

Shell material

Time molding waterproof and dustproof shell with Anti-static paint
