Supply V7-100 Type silica sand production line and related machines

Supplier: Fujian South Highway Machinery Co., Ltd.
Region: Fujian, China
Contact: Ms Sally su
Price: $1660000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	NFLG;	Supply Ability:	4 Set/Sets per Month for silica sand production line;
After-sales Service Provided:	Online support,Field installation, commissioning and training,Video technical support;	Product name:	silica sand production line;
Dimension(LWH):	351023m;	Total power:	780;
Voltage:	220V;	Max processing capacity(t/h):	100;
Packaging Detail:	Silica sand production line applied to long distance sea shippment; container type;	Capacity(t/h):	100;
Certification:	CE,OHSAS18001, CQM, ISO9001;	Condition:	New;
Warranty:	1 Year;	LWH(m):	351023;
Power(W):	780kw;	Place of Origin:	Fujian China;
Screen:	,AS3900;	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	Xiamen Or Shanghai,China;	Main machine:	US7-636H;
Weight:	30t;	Payment Terms:	L/C,T/T;
Feeding size:	0-13;

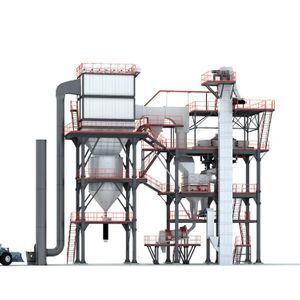

V7 dry Sand Making Equipment

Supply V7-100 Type silica sand production line and related machines

V7 dry-type sand making equipment effectively utilizes key technologies such as vertical-shaft crushing, air screening, and adopts the latest five-hole impact rotor structure. A centrifugal crushing method based on the "rock-breaking", showing excellent crushing performance, realize the finished product sand fineness modulus is adjustable, ensure the quality of finished product sand to the greatest extent, and at the same time perfectly grades out-of-gauge particle size, finished product sand, stone powder particle size grading, maximize screening efficiency. In addition, its off-line ash removal pulse filter technology ensures that the equipment can operate under closed negative pressure environment, effectively control the content of stone powder in finished sand, and realize green production.

model	V7-60	V7-100	V7-150
Crusher	US7-474H	US7-636H	US7-636H/SKY
Screen	AS2500	AS3900	AS3900T
Maximum feeder size(mm)	13
Maximum input	60	100	150
power of main units(kW)	430	780	870
LWH	28×9×20	35×10×23	35×10×28

Pre-screening system

Pre-screening of raw materials before crushing can improve the quality of finished materials and effectively avoid damage to rotors and throwing heads, thus eliminating the worries of materials with particle sizes exceeding the standard.

Drying system

Double-return drying and cooling drum, with controllable temperature and excellent performance, can effectively solve the problem of the high moisture content of raw materials, and save up to 20%-30% of heat energy.

Self-cleaning system

It can be equipped with a central centralized dust collection system to clean dust and accumulated water and be used after connecting the reserved vacuum port with good sealing, low noise, convenient operation and high dust suction efficiency(the cleaning speed is 5 times of manual).

Powder removal system

The NAS powder removal equipment with excellent performance is adopted to realize the classification of circulating air in the equipment, the classification point is adjustable, and the fine powder below 150μm can be removed by 7% - 10%, can effectively solve the problem of powder, mud in raw materials; improve the quality of finished products.

Noise reduction system

Adopt straight pipe type resistance silencer, small resistance (less than 30Pa), strong silencing capability, noise reduction 10-15DB (A), can effectively eliminate the noise generated by the main noise source of the blower and induced draft fan, and realize environmental protection production.

Fine powder separation system

Advanced NHS fine powder separation equipment is adopted, with its unique design of dispersion cone and air inlet. high classification rate(coarse particles above 45μm and fine particles below 45μm in stone powder can be classified ), grading particle size can be adjusted, but also to achieve grading synchronous drying (customized). And the unique environmental protection design and wear-resistant treatment can ensure that dust does not scatter in the production, production performance is stable and not vulnerable.

Metal detection system

MA series metal detector is adopted, which has a strong anti-interference capability and adjustable sensitivity and can accurately identify non-ferrous metal or weak magnetic alloy substances in raw materials (once detected, feeding will be stopped ) to avoid equipment damage.

Q: How is the quality of your products?

A: our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.

Q: How about the price?

A: We are factory and be able to give you the lowest price than market one, and we have a policy that for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.

Q: Do you provide after-sale service?

A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q: Do you provide equipment operation training?

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q: Can you test our samples?

A: Yes. You can send your samples to us for test and analysis

Q: Service and Payment Terms?

A: We usually accept T/T, LC. T/T: 30% in advance as down payment, the balance before delivery We take pictures of finished products before delivery.
