Lb4000 Mixer Mobile Asphalt Batch Plant Manufacturers

Product details
Showroom Location:Philippines,Saudi Arabia,Indonesia,Russia,UAE,Malaysia,Australia;Place of Origin:Fujian China;
Weight:131t,131T;Trailing speed:40km/h;
Port:Xiamen,China;Power(W):156-276kw;
Packaging Detail:lb4000 asphalt mixer applied to long distance sea shippment; container type;Warranty:1 YEAR;
Dimension(L*W*H):16000*3000*4200mm;Certification:CE,OHSAS18001, ISO9001;
Applicable Industries:Manufacturing Plant,Construction works ,Energy & Mining;Name:Mobile Asphalt Hot Mix Plants;
Brand Name:NFLG;Payment Terms:L/C,T/T;
Local Service Location:Philippines,Saudi Arabia,Indonesia,Russia,Malaysia,Australia,UAE,Bangladesh;mixing mode:10-20t;
After-sales Service Provided:Engineers available to service machinery overseas,Video technical support,Online support,Field installation, commissioning and training;Discharge height:3700mm;
colour:customized by client;After Warranty Service:Video technical support,Online support;
UNIQUE SELLING POINT:Low Maintenance Cost;Condition:New;
Voltage:380V;capacity:90-120t/h;
Maximum axle load:10-20 t;Stone power scale capacity:225kg;
Supply Ability:4.0 Set/Sets per Month;

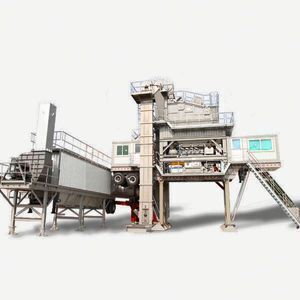

YLLB Continuous Mobile Asphalt Mixing Plant

Lb4000 Mixer Mobile Asphalt Batch Plant Manufacturers

Model YLLB
Rated output 100t/h
Number of cold material hoppers 4x10 m³
Discharging height 4m
Standard power installed 355 kW
Main size 16.7mx4.2mx2.6m

Drying System



The scientific design is efficient and energy-saving

Simulation and optimization of material curtain design can ensure thermal efficiency up to 90% with unique on-line intelligent detection function, allowing the roller to realize high heat exchange while saving fuel.

Combustion System



First-class burners are easy to use and environmentally friendly

NZGOB burner, new generations of axial-flow oil/gas burner led by NFLG and jointly developed by China and Europe, can not only adjust the ratio of variable frequency air to oil but also have low noise and are more energy - saving, environment-friendly and safe.

Dust Collection System



All-around environmental protection, stable quality, and high efficiency

Using an intelligent system to control the ash removal frequency and stepping rotary reverse blowing method. Using NOMEX filter bags with an effective operation area of up to 98% to meet European standard emissions (< 20mg/Nm³). Ensure the stability of negative pressure in the roller; meet the requirements of environmental protection.

Screening System



Low warehouse mixing rate, maintenance-free and easy operation

Digital simulation, dynamic simulation, ensures the warehouse mixing ratio is less than 5%. The energy-saving vibrator can be driven directly, with high transmission efficiency and no maintenance. Mesh tension can be identified for easy operation.

Measuring System



Patents are more stable and accurate

The weighing mechanism with a strong self-adapting ability is equipped with the unique two-door coarse and fine-scale patent combination and secondary tracking measurement for accurate measuring. Bring you a more accurate “oil - stone ratio" to ensure the quality of finished products.

Mixing System



High efficiency, energy saving, stable and wear resistance

The material mixing mode was optimized by simulation; materials in each mixer are homogeneously mixed to increase the mixing efficiency by 25% while reducing energy consumption by 20%. The mixing arm is precision cast with high-strength wear-resistant alloy steel, using the most advanced heat treatment method at present and additionally adding wear-resistant trace element coating, and is perfectly combined with high-wear-resistant blades from AB BRUZAHOLMS BRUK of Sweden.

20 years of research and development experience in wear-resistant technology makes the equipment more durable, the mixing more uniform and the quality of finished products more reliable.

Conveying System



The optimized design is smooth and reliable

The use of scraper conveyor and plate elevator can avoid the problems of elongation and deformation of parts and skid during the conveying process so that the line can be unblocked all the way.

Intelligent Control System



Multiple securities without downtime, cloud monitoring is more convenient

Equipped with self-developed dual computer synchronous production management and control system and drying roller fault warning patent, it has multiple securities without downtime. The unique real-time burner instantaneous flow and oil consumption display technology and cloud data real-time update function enable the burner to perform accurate remote service. The more intimate control system makes your operation simpler and more convenient.

Q: How is the quality of your products?

A: our machines are manufactured strictly according to national and intemational standards, and we take a test oneach equipment before delivery You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.

Q: How about the price?

A: We are factory and be able to give you the lowest price than market one, and we have a policy that for saving timeand absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.

Q: Do you provide after-sale service?

A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q: Do you provide equipment operation training?

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q: Can you test our samples?

A: Yes. You can send your samples to us for test and analysis

Q: Service and Payment Terms?

A: We usually accept T/T, LC. T/T: 30% in advance as down payment, the balance before delivery We take pictures of finished products before delivery.
