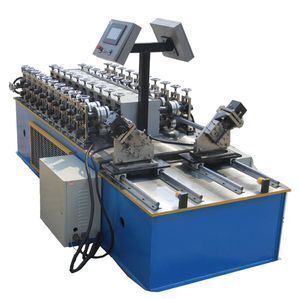

2017 China Galvanized Steel Sheet C U Channel Double Line Light Keel Roll Forming Machine

Product details
Roller material:Cr12;Feature:High speed, low energy consumption;
Supply Ability:30 Set/Sets per Month Galvanized Steel Sheet C U Channel Double Line Light Keel Roll F;Production Capacity:25m-45m/ min;
Power(W):6 kw;Product name:Used frame machine for sale;
Work Pressure:Normal Pressures;Cutting type:Hydraulic cutting;
Frame material:Middle plater weld;Way Of Drive:Gear;
Voltage:380v 50hz 3phase;Cutting blade material:Cr 12 high grade steel;
Packaging Detail:1. One 20ft container for loading one set machine with manual decoiler; 2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container.;Control System:PLC with touch screen;
After-sales Service Provided:Engineers available to service machinery overseas;Brand Name:Zhongtuo;
Dimension(L*W*H):3500*1200*1400mm;Condition:New;
Lanugage system:Chinese ,English ,Russian (customized);Weight:About 3t;
Type:Steel Frame & Purlin Machine;Certification:CE; ISO9001;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,O/A;Place of Origin:Hebei China;
Port:Tianjin;Warranty:1 Year;
Shaft material:45# high grade steel;

2017 China Galvanized Steel Sheet C U Channel Double Line Light Keel Roll Forming Machine

Product Description



Machine Description

Quantity

Delivery time

Container Type

Price/ USD

(FOB TIANJIN)

c channel roll forming machine

 1 SET

45 working days

after receiving deposit

One 20GP

7900---19900

Galvanized Steel Sheet C U Channel Double Line Light Keel Roll Forming Machine Process Flow:

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

+

Product name

Used frame machine for sale

NO.

 Items

 Parameters

 Remark

1

 Suitable Material

 Type

 GI/PPGI/AL







 Thickness

 0.40-0.80mm



2

 Product Specifications

 Length

 Any length







 Length Tolerance

 ±2mm/6m



3

 Working Speed

15- 25 m/min

 Standard machine

4

 Control System

 Mitsubishi/Siemens PLC& transducer

 Custom

5

 Total Power

 6KW



6

 Total Weight

 About 3T

 Up to final design

Components of Galvanized Steel Sheet C U Channel Double Line Light Keel Roll Forming Machine:

No.

Name

Unit

Qty

1

Manual decoiler

set

1

2

Main forming machine

set

1

3

PLC control system

set

1

4

Hydraulic pump station

set

1

5

Post cut

set

1

6

Electric motor

set

1

7

Output table

set

1

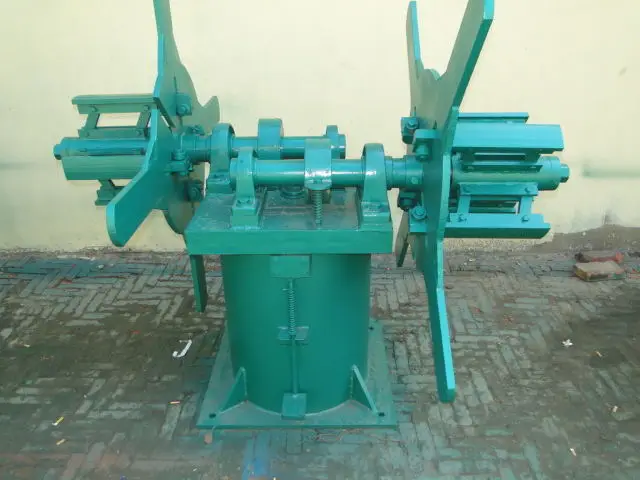

Galvanized Steel Sheet C U Channel Double Line Light Keel Roll Forming Machine Un-coiler System:

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

+

Loading capacity

Uncoiling width

Inner diameter

1.5T

300mm

450-550mm

Galvanized Steel Sheet C U Channel Double Line Light Keel Roll Forming Machine Coil feeding part:

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the prod

ucts are neat, parallel and everything is uniformity.

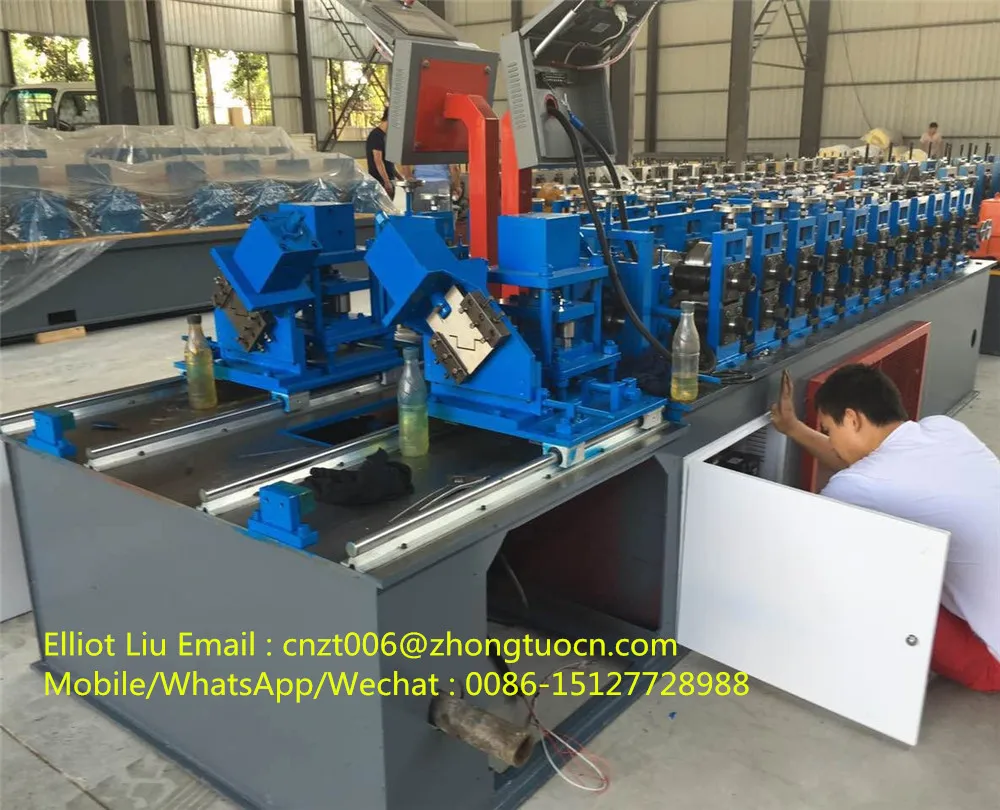

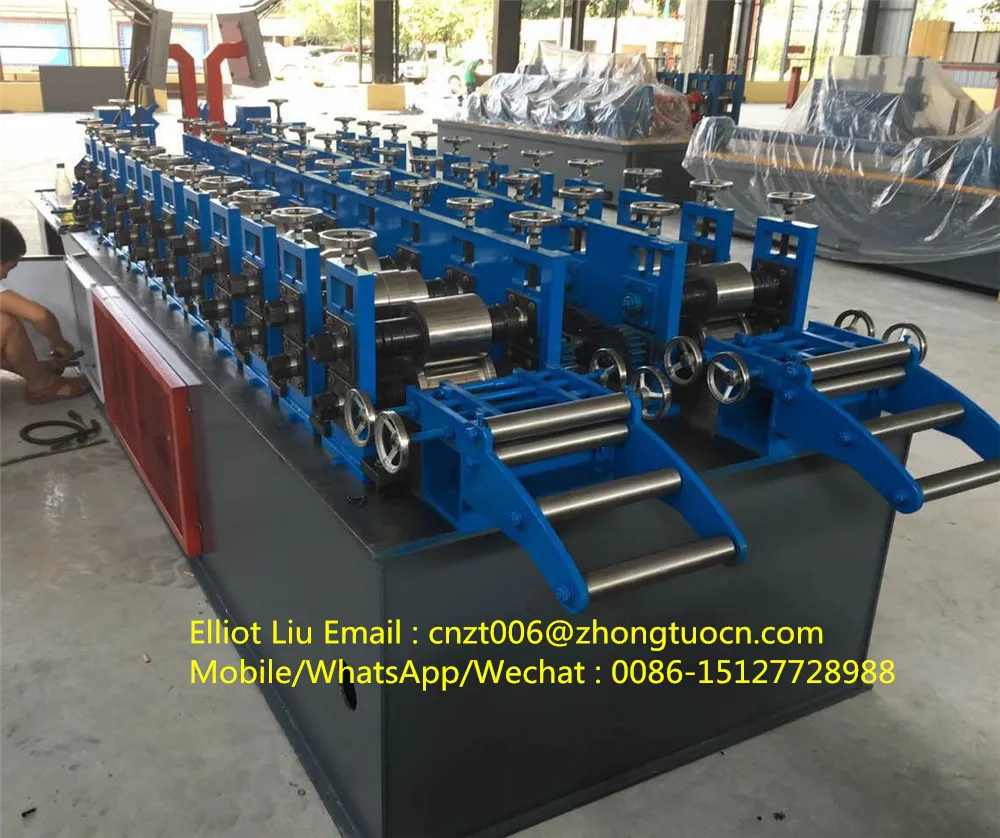

Galvanized Steel Sheet C U Channel Double Line Light Keel Roll Forming Machine Forming device:

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chaintransmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working Feature : Ensure stability , precision and lifetime.

+

No.

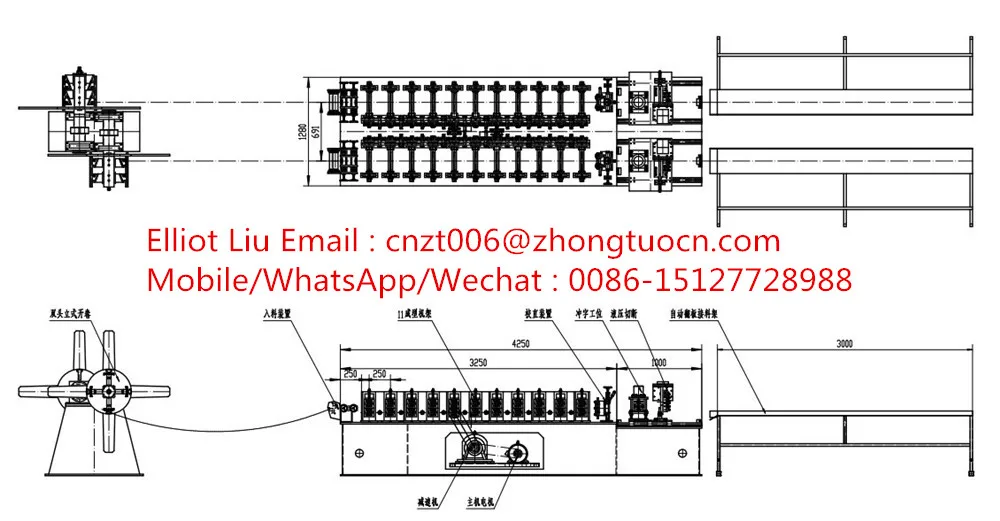

   Main parameter of ceiling c channel forming machine

1

 Length of the main part

 3000*800*1400mm

2

 Weight of main part

 About 3 t

3

 Voltage

 380V/50HZ3Phase (as customer's request)

4

 Roller fixer

 Guide column

5

 Frame

 Middle plate welded

 Memorial arch frame type

6

 Frame thickness

 25mm

7

 Drive mode

 Gear or chain

8

 Material of rollers

 45# steel with tempering

9

 Material of shafts

 45# steel with tempering

10

 Diameter of shafts

 φ40mm

11

 Number of rollers

 10 rollers

14

 Main power

 3kw (Cycloidal planetary gear speed reducer)

Galvanized Steel Sheet C U Channel Double Line Light Keel Roll Forming Machine Cutting device:

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.

+

Blade Material

Cutting system

Cr12 steel with quenched treated 60-62°C

Full automatic

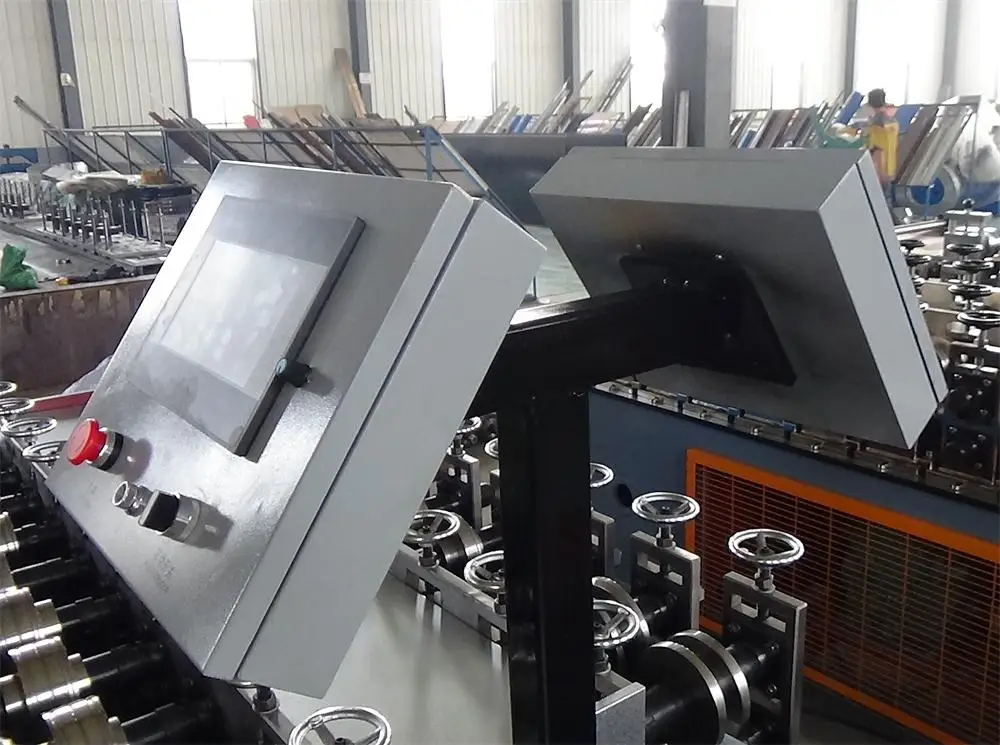

Galvanized Steel Sheet C U Channel Double Line Light Keel Roll Forming Machine Controlling device:

+

Screen

PLC

Coder

 Text screen displayer

Taida DVP14ES from Taiwan

 Omron

Galvanized Steel Sheet C U Channel Double Line Light Keel Roll Forming Machine Hydraulic Station:

+

Orgin

Power

Advanced hydraulic system from Taiwan

3kw

Our Services

1. Installation and training:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also tr

ain your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary th

ings.

2. After Service:

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.

Company Information



Cangzhou Zhongtuo is a professional manufacturer and exporterwhich has its own

 factory and also cooperate with several production factories and associated nterprises, concerning with the design,

 development and production of cold roll forming machines,material of building. It is located in northwest of CangZh

ou, as a long history of cold roll formingmachine production base. All products comply with international quality stan

dards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,

South America, and Australia and so on.

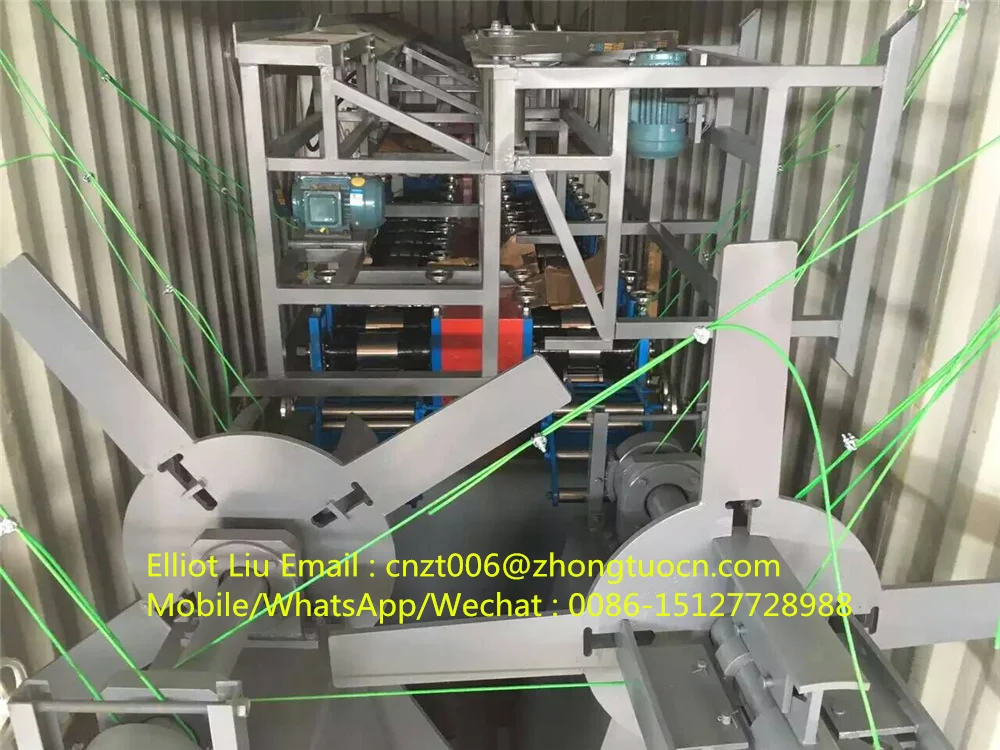

Packaging & Shipping

FAQ

1. Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

2. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

3. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

4. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.

5. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.

6. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
