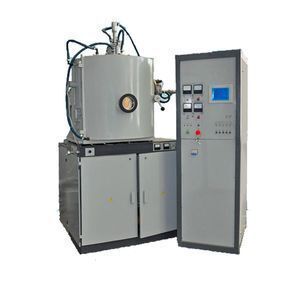

Mini PVD Sputtering Coating Machine

Supplier: Xiangtan Hongfeng Mechanical Equipment Manufactory
Region: Hunan, China
Contact: Ms Jane Liu
Price: $22000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE, ISO9001;	Installation:	We send skillful engineers if required;
Technology:	Physical vapor deposition;	Dimension(LWH):	Customized Size;
Condition:	New;	Automatic Grade:	Automatic, manual;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;	After sales Service:	Free Operation training;
Chamber Size:	Customized;	Weight:	About 4 tons;
Warranty:	1 Year warranty;	Type:	Coating Production Line;
Voltage:	Customers Local Voltage;	Applicable Industries:	Manufacturing Plant,PVD coating service provider;
Power(W):	Multi Power;	Kinds of film:	Stainless steel, Ti, Cr, Al, etc;
Equipment Name:	Mini PVD Sputtering Coating Machine;	Supply Ability:	30 Set/Sets per Year;
Place of Origin:	China;	Port:	Shanghai, Ningbo, Guangzhou, Shenzhen, Qingdao or under customer's order;
Method of Coating:	Magnetron Sputtering;	Coating:	Vacuum Coating;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Substrate:	Steel;
Brand Name:	Hongfeng PVD Machines;	Sampple:	For free;
Packaging Detail:	1. When the machine is shipped, it is in un-assemble condition. 2.. Solid steel with polywood plates of boxes, the inside boxes, the machine is carefully protected by the plastic rolling film from moisture and dust. The packing can make sure you will receive a machine without any destroy. 3. We need a full 20' container for Mini PVD Sputtering Coating Machine 4. The package can be made according to client's order;

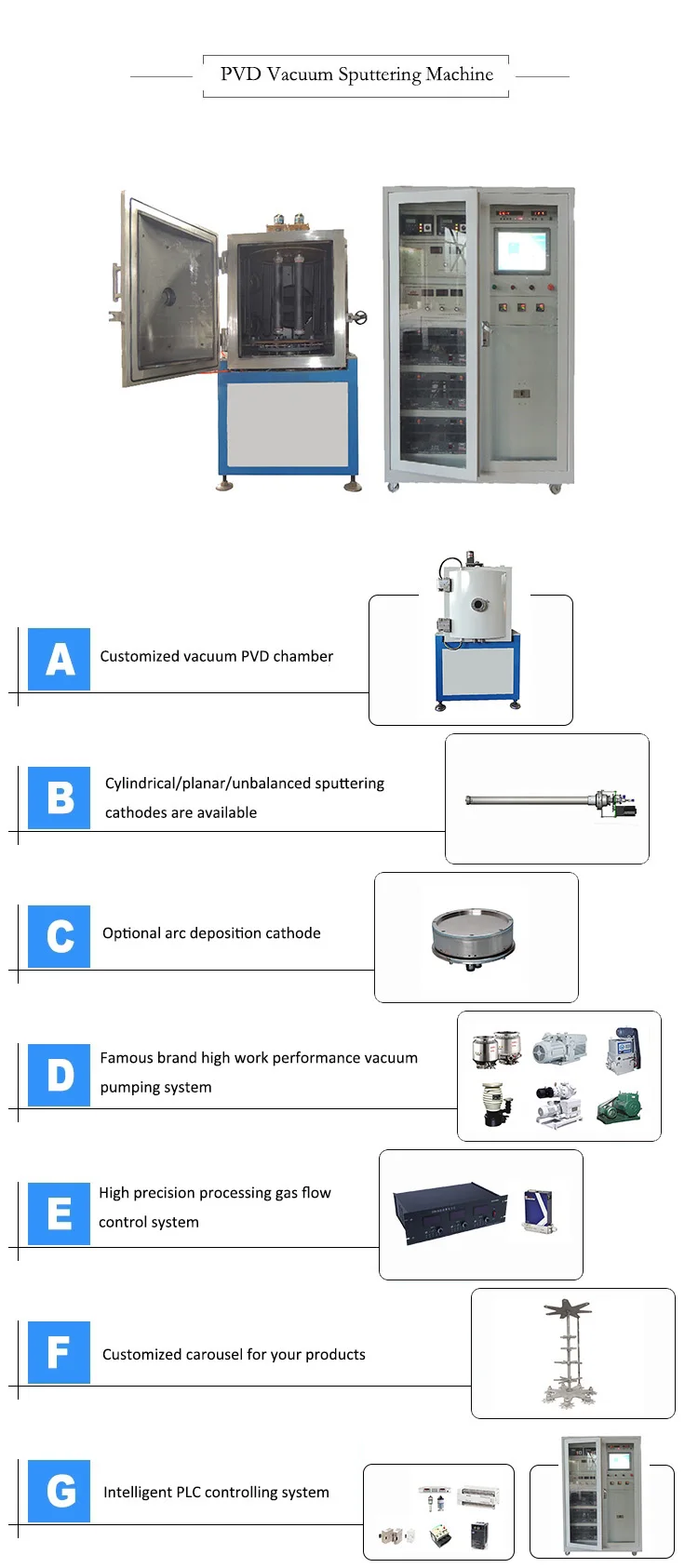

Mini PVD Sputtering Coating Machine

The equipment is a reasonable structure, coating evenly into good-quality, pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability. Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys and other industries.

MF sputtering

Medium Frequency(MF) Twin Cathodes Magnetron Sputtering

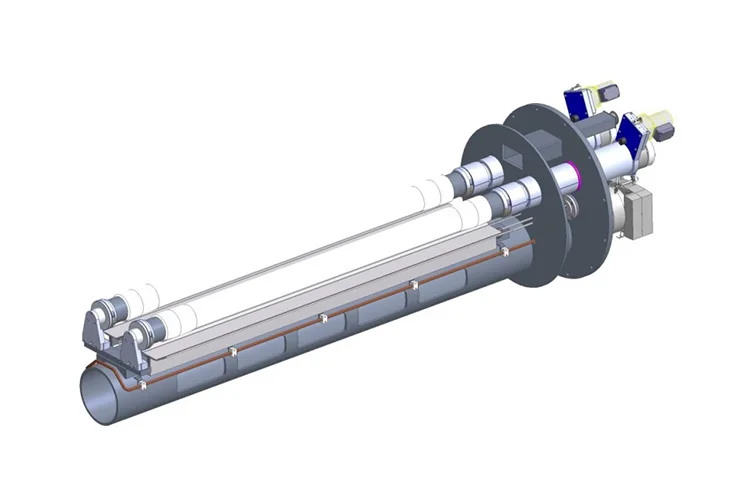

Unbalanced magnetron sputtering can be come with a cylindrical and planar target. The deposition power efficiency twice as large as that obtained by conventional magnetron sputtering was realized.

How the sputtering system works

This technology can be usually used for applying decorative colors onto metal, ceramic and glass items.

General Process

· Ar gas which is activated in plasma forms Ar ions.

· The Ar ions sputter out metal atoms from the target.

· Unbalanced magnetic field introduces the Ar ions around the substrate.

· Apply negative voltage on the substrate to attract Ar ions that induce active energy to the metal atoms depositing on the substrate.

· Solid metal films are formed on the substrate.

Techanical Specifications

Model Number	SP-1000	SP-1200	SP-1400	SP-1800
Dimension of vacuum chamber	1000*1100	1200*1400	1400*1600	1800*2000
(diameter*height)
Material of vacuum chamber	Carbon steel, SUS304 or SUS316L
Quantity of sputtering cathodes	≥1 sets,MF(medium frequency) unbalanced sputtering system, or rectangle or cylindrical sputtering cathodes
Pumping system	Turbo molecular pumps or diffusion pump+mechanical pump
Pumping Time	From atmosphere to 5.0*10-2Pa less than 8 minutes
Gas distribution System with Mass Flow Controllers	≥2 sets
Ultimate Vacuum	5.0*10-4 Pa
Working temperature	Room temperature
Working mode	Automatic or Manual mode, by 10.4(or 15) inches PLC touches screen
Total Power	40-100kW			70-1000kW
These units you can custom made	1. Size of vacuum chamber
	2. Quantity of sputtering cathodes
	3. Configurations of pumps
	4. Gas distribution system
Optional instruments	1. Coatings thickness monitor
	2. Leakage detector
	3. Arc ion deposition system(not for continuous model)
	4. Evaporation system(not for continuous model)
