Voltage: | Customers Local Voltage; | Brand Name: | Hongfeng VAC; |
Coating color: | Gold Color; | Port: | Shanghai, Ningbo, Guangzhou, Shenzhen, Qingdao or under customer's order; |
After-sales Service Provided: | Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support; | Weight: | 4t-8t; |
Technology: | Magnetron Sputtering+multi-arc Ion Coating; | Type: | Coating Production Line; |
Condition: | New; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Warranty: | 1 Year warranty; | Control method: | PLC touched screen; |
Dimension(L*W*H): | Customized Size; | Power(W): | Multi Power; |
Coating film: | TiN; | Applicable Industries: | Manufacturing Plant,PVD coating service provider; |
Certification: | CE, ISO9001; | Packaging Detail: | 1. When the machine is shipped, it is in un-assemble condition. 2.. Solid steel with polywood plates of boxes, the inside boxes, the machine is carefully protected by the plastic rolling film from moisture and dust. The packing can make sure you will receive a machine without any destroy. 3. We need a full container for Multi Arc Vacuum Metal Gold Sputtering PVD Coating Machine 4. The package can be made according to client's order; |
Base material: | Metal, ceramic, glass; | Supply Ability: | 30 Set/Sets per Year FOR Multi Arc Vacuum Metal Gold Sputtering PVD Coating Machine; |
Application: | PVD hard coatings or decorative coatings; | Coating: | Vacuum Coating; |
Equipment Name: | Multi Arc Vacuum Metal Gold Sputtering PVD Coating Machine; | Substrate: | Steel; |
Place of Origin: | Hunan China (Mainland); | Size of PVD vacuum chamber: | Custom made; |
Techanical service: | All lifetime technical support; |

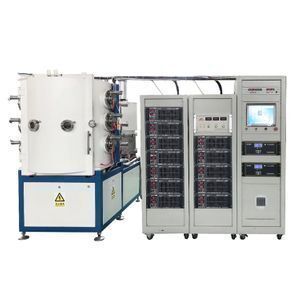

Multi Arc Vacuum Metal Gold Sputtering PVD Coating Machine
WORKING PRINCIPLE:
Technical Spcifications |
Mode | SA-800 | SA-1000 | SA-1200 | SA-1600 |
Dimension | D700*H800mm | D1000*H1100mm | D1200*H1400mm | D1600*H2000m |
Arc source quantity | 6 pcs | 12pcs | 14pcs | 24pcs |
Sputtering | DC or MF sputtering | |||
Sputtering | ≥1 set | |||
Arc Power source | Arc power source, Pulsed bias power supply | |||
Reactive gas control | Mass flowmeter + Electromagnetic valve | |||
Vacuum chamber structure | Vertical chamber front opening door, double layer cooling chamber, SUS304 | |||
Pumping system | Diffusion pump(Turbo Molecular pumps) +Roots pump +Mechanical pump | |||
the ultimate vacuum can reach up to (5.0*10-4Pa) | ||||
Heating Temperature control | Normal temperature to 150~500 centigrade PID control, radiation heating. | |||
Vacuum degree measuring | Digital display composite vacuum gauge: from atmosphere to 1.0*10-5Pa | |||
Control mode | Manual/Automatic work mode by PLC touched screen | |||
Compressed Air | 5 ~ 8Kgf/cm2 | |||
Cooling Water | 2.5 ~ 3Kgf/cm2, 18 ~ 25°C, Distilled Water | |||
Process Gas | 99.999% Pure Gas | |||
Heating Control | Selecting the capacity according to the choice of user, PID control | |||
System Ground | Class-1 grounding or its relevant facility | |||
Remarks | All the specifications can be customized according to your requests. |
After the customer tested the machine and make sure the machine is no problem, we will take the machine apart. The solid packing can make sure you will receive a machine without any destroy.
In order to help you choose the best suitable PVD coating machine, please try to reply my questions below, thanks for your cooperation.
Q1: What is your product, and the max. dimension?
Q2: The size of your processing material, your desired daily production capacity?
