Vacuum PVD Coating Equipment For Cutting, Forming Tools, Molds

Supplier: Xiangtan Hongfeng Mechanical Equipment Manufactory
Region: Hunan, China
Contact: Ms Jane Liu
Price: $50000.00 /set
Min. Order: 1 set

Click here to contact

Product details

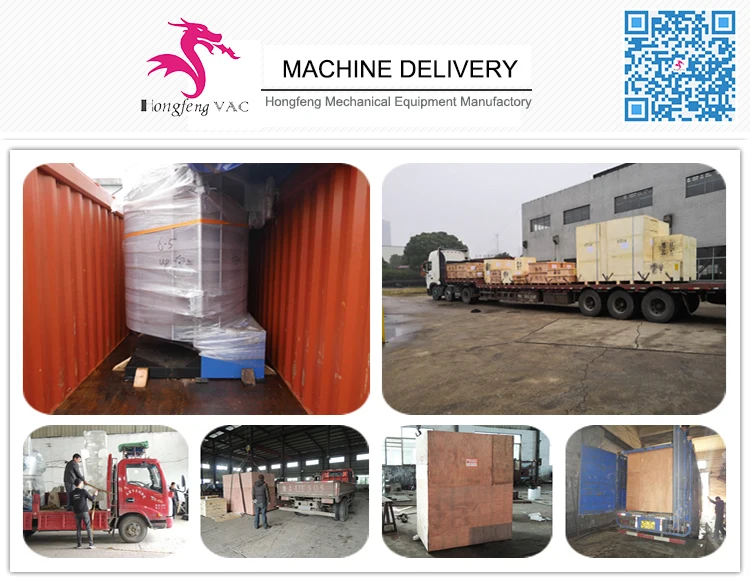

Working temperature:	Up to 500 celsuis;	Packaging Detail:	1. When the machine is shipped, it is in un-assemble condition. 2.. Solid steel with polywood plates of boxes, the inside boxes, the machine is carefully protected by the plastic rolling film from moisture and dust. The packing can make sure you will receive a machine without any destroy. 3. We need a 20' container for Vacuum Coating Equipment For Cutting, Forming Tools, Molds 4. The package can be made according to customer's order Delivery of PVD machine for UK customer: https://youtu.be/3hjXh1M7tTc;
Control:	PLC automatic control;	Type:	Coating Production Line;
Port:	Shanghai, Ningbo, Guangzhou, Shenzhen, Qingdao or under customer's order;	Condition:	New;
Brand Name:	Hongfeng PVD Machines;	Color:	Original;
Technology:	Magnetron Sputtering+multi-arc Ion Coating;	Raw material:	Titanium;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;	Substrate:	Steel;
Items for running the machine:	Compressed air, coolling water, ultrasonic washer;	Equipment Name:	Vacuum PVD Coating Equipment For Cutting, Forming Tools, Molds;
Supply Ability:	30 Set/Sets per Year;	Application:	PVD hard coatings;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Warranty:	1 Year warranty;
Applicable Industries:	Manufacturing Plant,PVD coating service provider;	Certification:	CE, ISO9001;
Coating:	Vacuum Coating;	Dimension(LWH):	Customized Size;
Place of Origin:	Hunan China;	Power(W):	Multi Power;
Coating film:	TiCN, TiN, CrN, TiAlN, etc;	Voltage:	Customers Local Voltage;
Weight:	About 3-10 tons;

Vacuum PVD Coating Equipment For Cutting, Forming Tools, Molds

--------------------------------------------------------------------------------------------------------------------------------------

PVD coating technology has many advantages over traditional decorative coatings. This includes:

Corrosion Resistance
Scratch Resistance
Wear Resistance
High Hardness
Superior Adhesion
Wide range of Colors that will not tarnish or fade
PVD finishes are rated as “Lifetime Coatings”
High Brilliance or Reflectivity
Low Coefficient of Friction

Product Description

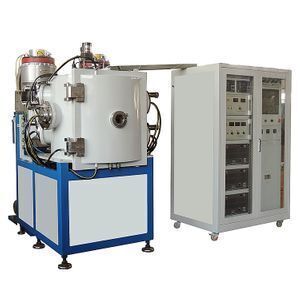

Machine Photos

Description

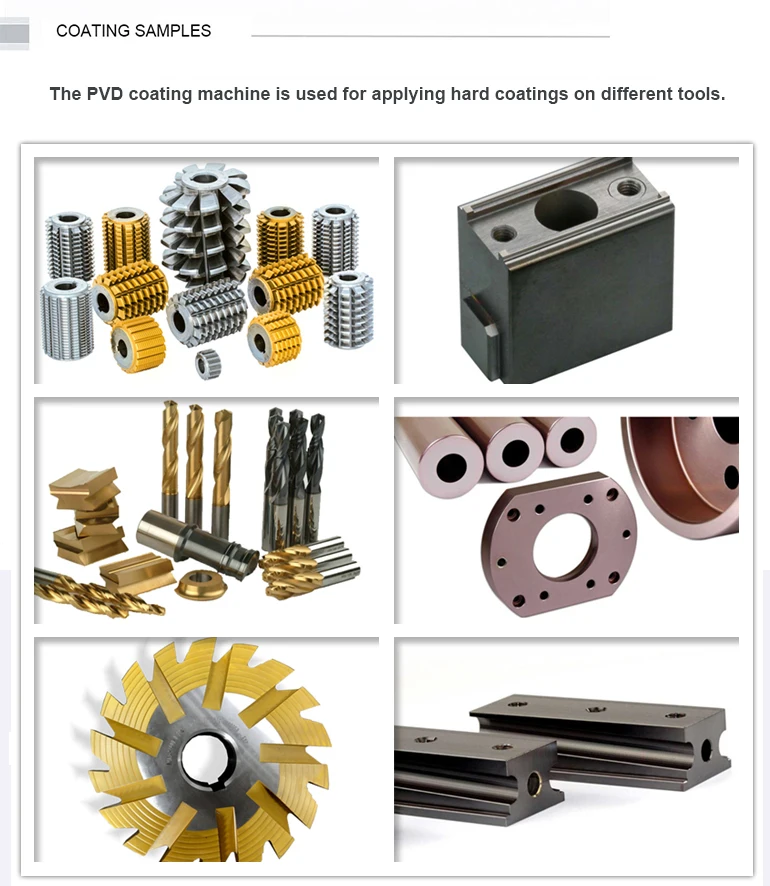

The PVD coating machine is particularly designed for protective hard coatings on tools, cutter and moulds. It improves the lifetime of different types of tool, meantime, it can increases the surface hardness.

The metal ions combine with a reactive gas that is introduced into the chamber, strike the target tools or components with high energy and are deposited as a thin and highly adherent coating.

About the process

Technical Spcifications

Model Number	ARC-600	ARC-1000	ARC-1200
Dimension of vacuum chamber(diameter*height)	600*700mm	1000*1100	1000*1200
Material of vacuum chamber	SUS304 or SUS316L with cooling jacket
Quantity of arc sources	1-4 sets	8-12 sets	10-14 sets
Pumping system	Molecular pump or diffusion pump+ mechanical pumps + booster pump
Pumping Time	From atmosphere to 5.0*10-2Pa less than 8 minutes
Bias Power Supply	10kW	20kW	20kW
Gas distribution System with Mass Flow Controllers	≥3 sets
Vacuum Limit	5.0*10-4 Pa
Working temperature	Up tp 550 centigrades
Working mode	Automatic or Manual mode, by 10.4 inches PLC touches screen
Total Power	40-120kW	40-120kW	70-180kW
Footprint	2*2 meters	3*3 meters	3*3 meters
These units you can custom made	1. Size of vacuum chamber 2. Quantity of arc sources 3. Configurations of pumps 4. Gas distribution system
Optional instruments	1. Coatings thickness monitor 2. Leakage detector 3. Magnetron sputtering system 4. Evaporation system 5. Polycold
