LE1-D Magnetic Starter 220V 380V 660V 3KW 4KW 11KW 15KW 22KW 30KW 37KW 45KW 55KW IP65 Direct On Line Motor Starter

Supplier: Wenzhou Kayal International Trade Co., Ltd.
Region: Zhejiang, China
Contact: Ms Vincent Cheng
Price: $7.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	Magnetic starter Packaging Detail: export standard package or according to customer's requirement...;	Supply Ability:	100000 Piece/Pieces per Month;
Certificate:	CE ISO9001;	Main Circuit Rating Voltage:	380V;
Electricity Type:	AC;	Rated Current:	9A-95A;
contacts:	85% silver;	Model Number:	LE1-40;
Phase:	3;	Rated Frequency:	50/60Hz;
Place of Origin:	Zhejiang China;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Standard:	IEC60947;	Brand Name:	Kayal;
Number of Pole:	3;	Port:	Ningbo or Shanghai;
Main Circuit Rating Current:	40A;

Please Attention!

LE1-D Magnetic Starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550V

for far distance making and breaking circuit and frequent start and control motor. It has the

features of small volume, light, weight, low power consumption, high efficiency, safe and reliable

perfomance etc.

SPECIFICATION

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Maximum power AC3 duty(K W)						Rated current (A)	Type of enclosure	Code Number		Suitable Thermal Relay(A)
220V 230V	380V 400V	415V	440V	500V	660V 690V			LL(Long life)	NL(3) (normal life)
220V 230V	380V 400V	415V	440V	500V	660V 690V			LL(Long life)	NL(3) (normal life)
1.1	2.2	22	22	...	...	6	...	...	LE1 EC 135	LE1 EC135
2.2	4	4	4	5.5	5.5	9	IP42 IP65	LE1 D094... LE1 D093...	...	LR2 D1312
3	5.5	5.5	5.5	7.5	7.5	12	IP42 IP65	LE1 D124... LE1 D123...	LE1 D094... LE1 D093...	LR2 D1314
4	7.5	9	9	10	10	18	IP42 IP65	LE1 D188... LE1 D185...	LE1 D124... LE1 D123...	LR2 D1316
5.5	11	11	11	15	15	25	IP42 IP65	LE1 D258... LE1 D255...	LE1 D188... LE1 D185...	LR2 D1321
7.5	15	15	15	18.5	18.5	32	IP55	LE1 D325...	LE1 D255...	LR2 D1322 LR2 D2353
11	18.5	22	22	22	30	40	IP55	LE1 D405...	LE1 D325...	LR2 D2355
15	22	25	30	30	33	50	IP55	LE1 D505...	LE1 D405...	LR2 D3353 LR2 D3355
18.5	30	37	37	37	37	65	IP55	LE1 D655...	LE1 D505...	LR2 D3357 LR2 D3359
22	37	45	45	55	45	80	IP55	LE1 D805...	LE1 D655...	LR2 D3363 LR2 D3365
25	45	45	45	55	45	95	IP55	LE1 D955...	LE1 D805...	LR2 D3365

Enclosure	LE-D09 and D12	Double insulated, protected to IP 429 (3) or to IP659(4)

	LE-D18 and D25	Double insulated, protected to IP 427 (3) or to IP577(4)

	LE-D32...D25	Matel, IP 55 to IP 559

Control(2 pushbuttons mounted on enclosure cover	LE-D09...D95	1 green Start Button "1", 1 red Stop/Reset button "O"

Connections	LE-D09...D95	Pre-wired power and contorl circuit connections

Standard control circuit voltages

Voltages	24 42 48 110 220/230 230 240 380/400 400 415 440

50/60Hz	B7 D7 E7 F7 M7 P7 U7 Q7 V7 N7 R7

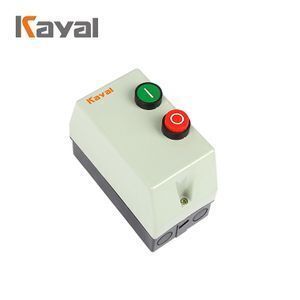

PRODUCT PICTURE

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
