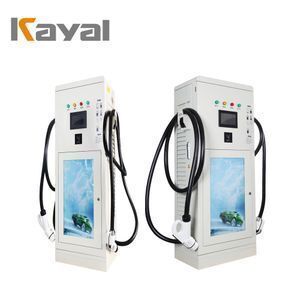

KAYAL 45KW Double Gun Car Charging Station for Electric Vehicles

Supplier: Wenzhou Kayal International Trade Co., Ltd.
Region: Zhejiang, China
Contact: Ms Vincent Cheng
Price: $3366.48 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	1000 Set/Sets per Month;	Input frequency:	45~65Hz;
Input voltage:	AC380V±20%;	Place of Origin:	Zhejiang China;
Model Number:	KYCP-DC-45KW-D;	Cable length:	5m;
Packaging Detail:	export standard package or according to customer's requirement...;	Protection level:	IP54;
The output voltage:	200-750VDC;	Brand Name:	KAYAL;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Port:	NINGBO/SHANGHAI;
Ripple coefficient:	≤±0.5%;	Steady flow accuracy:	≤±1%;
Current limit protection value:	≥110%;	Routing mode device size:	6354231600(mm);
Measurement accuracy:	Level 0.5;

Please attention!

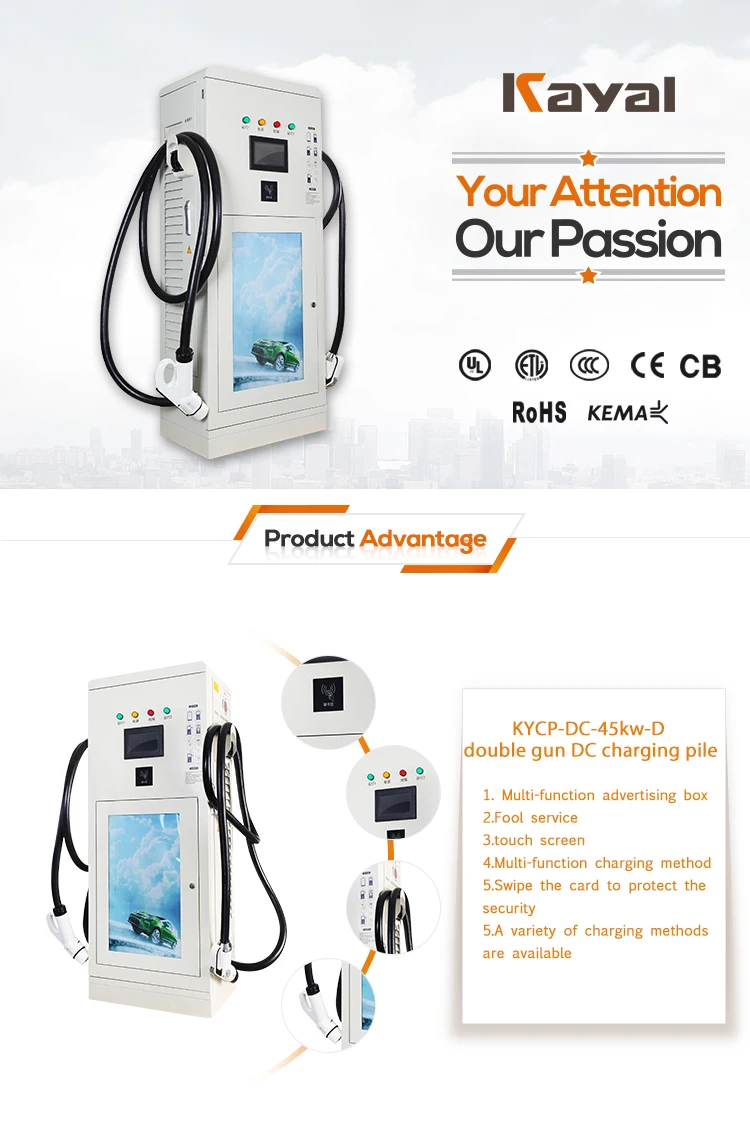

Overview
Adopting a nuclear power-grade high-power power module platform, the safety and reliability are higher;
The new high-efficiency three-phase PFC circuit topology is adopted, the power factor is greater than 0.99, and the harmonic distortion rate is ≤5%.
The high-frequency switching power supply module adopts full-bridge phase-shift soft-switching technology, and the execution efficiency is high.
The advanced digital current sharing technology effectively improves the current sharing accuracy and anti-interference; the first module sleep
technology and the wheeling technology ensure the high-efficiency operation of the system;
Intelligent charging process control and perfect charging process monitoring and protection, fool-like operation;
A variety of charging methods such as timed charging, quantitative charging, fixed amount charging and automatic charging are available;
Real-time display of information such as the amount of charge, charging time, current electricity price, charging price, and operating status;
The RS-485 networking communication interface can be reserved, and the optional GPRS networking mode can be provided;
Module hot swap technology makes maintenance more convenient;
Working environment temperature -20+50 °C
Scope of application
Integrated DC charging pile is suitable for urban public charging stations (bus, taxi, official car, sanitation car, logistics car, etc.) city public charging
station (private car, commuter car, bus) cityVarious parking lots in residential areas, shopping plazas, power business places, etc.; intercity highway
charging stations, etc.

Product number		KYCP-DC-45KW	KYCP-DC-60KW	KYCP-DC-80KW
Detailed specification	rated power	45KW	60KW	80KW
Charging equipment	User Interface	7 inch LCD color display touch screen
	installation	Floor-standing/Down and down
	Routing mode device size	6354231600(mm)
	Input voltage	AC380V±20%
	Input frequency	45~65Hz
	The output voltage	200-750VDC
	Single gun output current range	200V-500V	200V-500V	200V-500V
	The output voltage	0-90A	0-120A	0-160A
	Single gun output current range	200V-750V	200V-750V	200V-750V
	The output voltage	0-60A	0-80A	0-107A
Charging equipment	Single gun output current range	0-112A	0-150A	/
	Cable length	5m
Electrical index	Measurement accuracy	Level 0.5
	Current limit protection value	≥110%
	Voltage regulation accuracy	≤±0.5%
	Steady flow accuracy	≤±1%
	Ripple coefficient	≤±0.5%
	effectiveness	≥94.5%
	Power factor	≥0.99 (50% load or more)
	Harmonic content THD	≤5% (50% load or more)
feature design	HMI	7 inch LCD color display touch screen, LED indicator
	Charging mode	Auto full / fixed power / fixed amount / fixed time
	payment method	Credit card payment / APP payment / scan code payment
	Communication Interface	Ethernet 2/3/4G (optional)
Safety design	Executive standard	GB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008
	security function	Charge gun temperature detection, overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse connection protection, lightning protection, emergency stop protection, leakage protection
Environmental indicators	Operating temperature	-25°C~+50°C
	Working humidity	5%~95% non-condensing cream
	Working elevation	<3000m
	Protection level	IP54
	cooling method	Forced air cooling
	Noise control	≤60dB
	MTBF	100,000 hours

Installation environment requirements
This series of DC charging piles is an outdoor charging pile that meets the IP54 protection rating.
Please ensure the ambient temperature is between -20 ° C and +50 ° C
