Certificate: | CE ISO9001; | Main Circuit Rating Current: | 9A; |
Brand Name: | Kayal; | Port: | Ningbo or Shanghai; |
Packaging Detail: | Magnetic starter Packaging Detail: export standard package or according to customer's requirement...; | contacts: | 85% silver; |
Rated Current: | 9A-95A; | Supply Ability: | 100000 Piece/Pieces per Month; |
Main Circuit Rating Voltage: | 380V; | Electricity Type: | AC; |
Model Number: | LE1-D9; | Standard: | IEC60947; |
Place of Origin: | Zhejiang China; | Number of Pole: | 3; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal; | Rated Frequency: | 50/60Hz; |
Product Name: | LE1 Magnetic starter; |

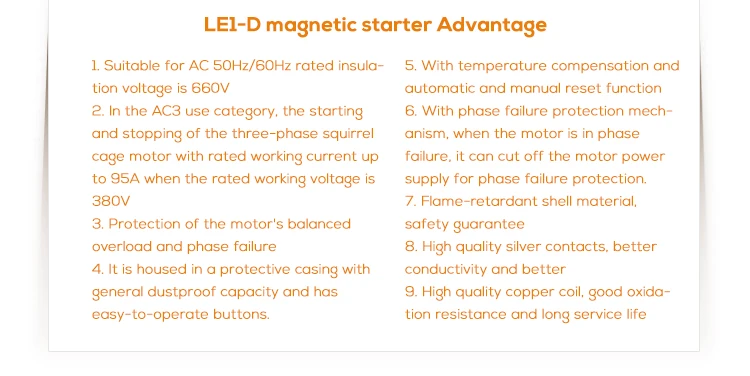

LE1-D Magnetic Starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550V
for far distance making and breaking circuit and frequent start and control motor. It has the
features of small volume, light, weight, low power consumption, high efficiency, safe and reliable
perfomance etc.
SPECIFICATION
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Maximum power AC3 duty(K W) | Rated current (A) | Type of enclosure | Code Number | Suitable Thermal Relay(A) | |||||||
220V 230V | 380V 400V | 415V | 440V | 500V | 660V 690V | LL(Long life) | NL(3) (normal life) | ||||
1.1 | 2.2 | 22 | 22 | ... | ... | 6 | ... | ... | LE1 EC 135 | LE1 EC135 | |
2.2 | 4 | 4 | 4 | 5.5 | 5.5 | 9 | IP42 IP65 | LE1 D094... LE1 D093... | ... | LR2 D1312 | |
3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 12 | IP42 IP65 | LE1 D124... LE1 D123... | LE1 D094... LE1 D093... | LR2 D1314 | |
4 | 7.5 | 9 | 9 | 10 | 10 | 18 | IP42 IP65 | LE1 D188... LE1 D185... | LE1 D124... LE1 D123... | LR2 D1316 | |
5.5 | 11 | 11 | 11 | 15 | 15 | 25 | IP42 IP65 | LE1 D258... LE1 D255... | LE1 D188... LE1 D185... | LR2 D1321 | |
7.5 | 15 | 15 | 15 | 18.5 | 18.5 | 32 | IP55 | LE1 D325... | LE1 D255... | LR2 D1322 LR2 D2353 | |
11 | 18.5 | 22 | 22 | 22 | 30 | 40 | IP55 | LE1 D405... | LE1 D325... | LR2 D2355 | |
15 | 22 | 25 | 30 | 30 | 33 | 50 | IP55 | LE1 D505... | LE1 D405... | LR2 D3353 LR2 D3355 | |
18.5 | 30 | 37 | 37 | 37 | 37 | 65 | IP55 | LE1 D655... | LE1 D505... | LR2 D3357 LR2 D3359 | |
22 | 37 | 45 | 45 | 55 | 45 | 80 | IP55 | LE1 D805... | LE1 D655... | LR2 D3363 LR2 D3365 | |
25 | 45 | 45 | 45 | 55 | 45 | 95 | IP55 | LE1 D955... | LE1 D805... | LR2 D3365 |
Enclosure | LE-D09 and D12 | Double insulated, protected to IP 429 (3) or to IP659(4) | |||||||||
LE-D18 and D25 | Double insulated, protected to IP 427 (3) or to IP577(4) | ||||||||||
LE-D32...D25 | Matel, IP 55 to IP 559 | ||||||||||
Control(2 pushbuttons mounted on enclosure cover | LE-D09...D95 | 1 green Start Button "1", 1 red Stop/Reset button "O" | |||||||||
Connections | LE-D09...D95 | Pre-wired power and contorl circuit connections | |||||||||
Standard control circuit voltages | |||||||||||
Voltages | 24 42 48 110 220/230 230 240 380/400 400 415 440 | ||||||||||
50/60Hz | B7 D7 E7 F7 M7 P7 U7 Q7 V7 N7 R7 | ||||||||||

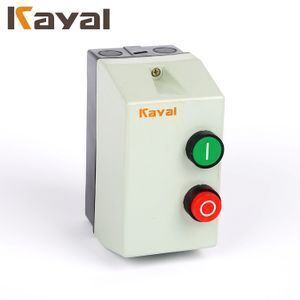

PRODUCT PICTURE
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
