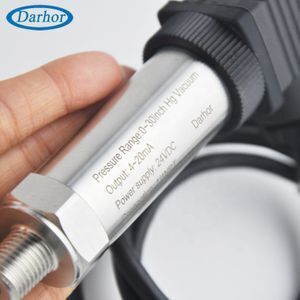

Low cost 0.1%FS 4-20mA/0-10V/0-5V pressure transmitter/ Vacuum transmitter sensor

Product details
Accuracy:0.25%FS/0.5%FS;Package Type:box in cartons pressure transmitter sensor;
Brand Name:Darhor;Material:stainless steel;
Model Number:DH-P300;Working temperature:-20℃--80 ℃;
Pressure range:-100kpa--0--10kpa--100mpa;Single gross weight:0.6 KG;
Model Number:DH-P300;Medium:liquid or gas ,oil;
Output signal:4-20mA, 0-5V,0-10V;Connection:1/2 '' , 1/4 '', 1/8'';
Type:Diffusion silicon pressure transmitter;Power supply:12-36VDC/24VDC;
Single package size:12X8X3 cm;Selling Units:Single item;
Place of Origin:Zhejiang China;
Related Products

DH1000 electromangetic flowmeter

99.8% Response Rate

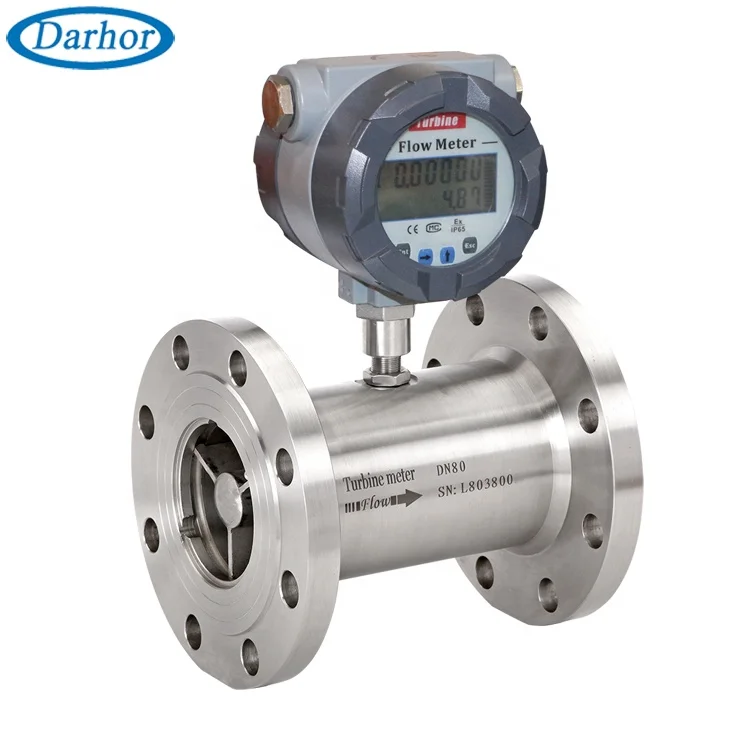

DH500 turbine flowmeter

98.8% Response Rate

DFA panel flowmeter

99.8% Response Rate

Product Description

Product Application

   The standard pressure transmitters DH-P300 designed for use in almost all industrial applications, and offer reliable pressure measurements, even under harsh environmental conditions.
   The flexible pressure transmitter programme covers different output signals, absolute or gauge (relative) versions, measuring ranges from 0-1 to 0-600 bar and a wide range of pressure and electrical connections.
   Excellent vibration stability, robust construction, and a high degree of EMC / EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.

Features.

• Designed for use in severe industrial
environments
• CE-marked: EMC protected in accordance
with EU EMC Directive
• Enclosure and wetted parts of acid-resistant
stainless steel (AISI 316L)
• Temperature compensated, linearized and
laser adjusted

Output signals:

– MBS 32: 0 – 5 V, 1 – 5 V, 1 – 6 V or 0 – 10 V DC
– MBS 33: 4 – 20 mA
• A wide range of pressure connections
• Electrical connection: plug or cable
• For use in Zone 2 explosive atmospheres



1.Derect leader connector

2.Aviation connector

3.Hirschmann connector


Pressure range
Pressure type
gauge pressure absolute pressure sealed pressure
Pressure range
-1-1000Bar (optional)/ vacuum











Technical Index
Power supply
24VDC 12VDC 5VDC 12-36VDC
Signal output
4-20mA 0-20mA 1-5V 0-5V
Signal line specification
2wire 2wire 3wire 3wire
Zero Drift
±0.03%FS/°C
Accuracy
±0.1%FS ±0.3%FS ±0.5%FS
Thermal Sensitivity Shift
±0.03%FS/°C
Longterm Stability (1 Year)
<=0.21%FS
Frequency Response (-3dB)
5kHz~650kHz
Compensated Temperature
-10~70℃
Working Temperature
-40~85℃
Storage Temperature
-40~125℃
Overload pressure
200%FS
Protection Classification
IP65
Body materials
316 stainless steel (standard)
Transmission distance
<= 100m (No electromagnetic interference)
Pressure connection
G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5, M20*1.5 etc. (optional)
Measure media
Gas, water, oil or other media can be compated with stainless
Accuracy
±0.1%FS ±0.3%FS ±0.5%FS
Specifications
Hirschmann connector, aviation conncetor, direct lead connector
Detailed Images

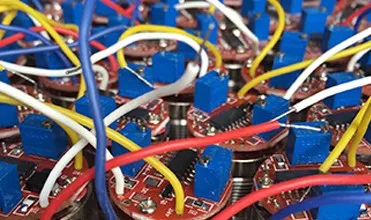

circuit unit

USA original processing module circuit unit XTR101 chip

+

Demark company designed classic circuit.





Laser Marking

OEM for you

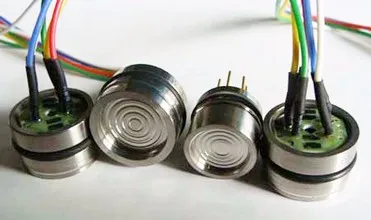

Diffused silicon sensor from Germany





3mm lead pressure hose

protect the internal diaphragm

          EXPLOSION PROOF TYPE


                 High temperature type


                    Vacuum transmitter

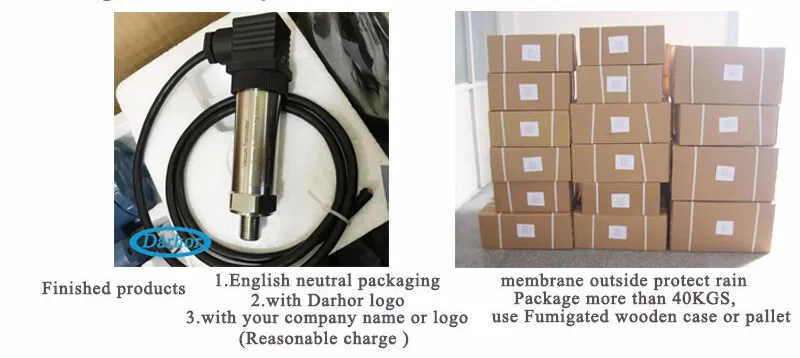

Packing & Delivery

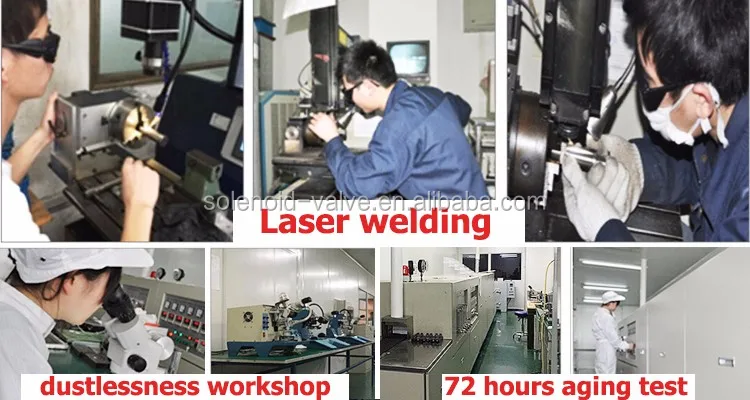

Production Process
