UPVC CPVC PVC antiseptic corrosion resistant solenoid valve for corrosive acid sea water

Product details
orifice:15, 20, 25, 32, 40, 50;Application:General;
Structure:Pilot;Thread:NPT, BSP, G;
Packaging Detail:UPVC CPVC PVC antiseptic corrosion resistant solenoid valve for corrosive acid sea water packed in wooden case with polyfoam inside;Brand Name:Darhor PVC solenoid valve;
Order lead time:7~10 days;Certifications:CE, ROHS, ISO, TUV;
Temperature of Media:-10~80℃;Place of Origin:Zhejiang China (Mainland);
Power:Solenoid;Pressure:0.1~6 bar;
Port Size:1/2"~2";Media:Acid,alkali,liquid,gas.;
Medium:Acid;Seal:VITON;
sample lead time:5~7 days;Type:PVC solenoid valve;
Standard or Nonstandard:Standard;Supply Ability:3000 Piece/Pieces per Week 50 pcs per carton;
Port:Shanghai;warranty:one year guaranteed;
Payment Terms:L/C,T/T,Western Union,paypal;Model Number:DHF21;
Material:Plastic;
Product Description

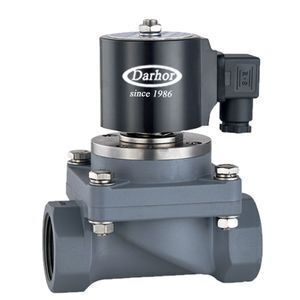

UPVC CPVC PVC antiseptic corrosion resistant solenoid valve for corrosive acid sea water


Characteristic:

1. UPVC CPVC PVC solenoid valve Adopt isolation piston structure;
2. UPVC CPVC PVC solenoid valve Long life span
3. UPVC CPVC PVC solenoid valve Adopt a new level of anti-corrosion material UPVC/CPVC/PTFE,medium and metal is completely isolated.

Material:

Body-UPVC/CPVC.
Seal- FKM, EPDM, PTFE
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F

Stop- Stainless Steel 430F
Springs- SS304
Shading Rings- SS304

Medium:
UPVC: sulfuric acid, hydrochloric acid≤10%
Temperature:
VITON Seal: -30℃ to 150℃   NBR Seal: -10℃ to 80℃   EPDM Seal: -10℃ to 120℃
Pressure:
0.01-0.6 MPa
Port Size:
1/2'', 3/4'',1'',1 1/4'',1 1/2'',2''
Port Thread:
G, BSP, NPT
Orifice(mm):
15,20,25,32,40,50
Voltage:
DC - 12V,24V   AC - 24V,120V,240V/60Hz;110V,220V/50Hz
Coils:
YC1B,15W(AC),16W(DC)   YE1B, open200W,keep 5W(AC),28W(DC)
YF1B, open 350W,   keep 10W(AC), open 75W,keep 25W(DC)

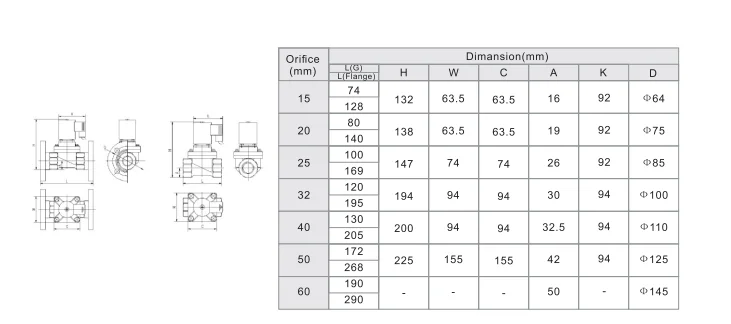

Specifications

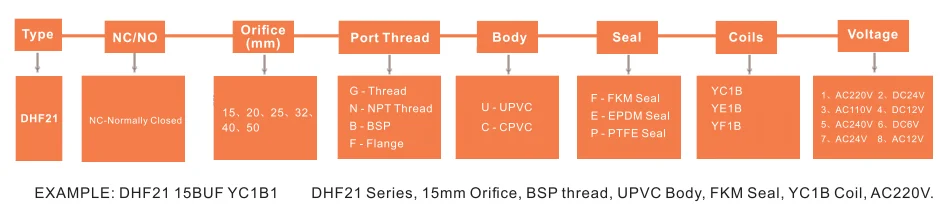

DHF21 Series UPVC CPVC sea water solenoid valve Normally Closed ,with Coil YC1B,DIN
Valve Body
Port
size
Orifice
Cv
Min
pressure
(MPa)
Max pressure(MPa)
Seals
Material
Body
Material
AC(15VA)
DC(16W)
DHF2115XXX
1/2''
15
4.5
0.01
0.6
0.6
EPDM,
FKM,
PTFE
UPVC,
CPVC
DHF2120XXX
3/4''
20
9.3
0.01
0.6
0.6
DHF2125XXX
1''
25
12
0.01
0.6
0.6





AC(5VA)
DC(28W)
DHF2132XXX
1-1/4''
32
24
0.01
0.6
0.6
DHF2140XXX
1-1/2''
40
29
0.01
0.6
0.6





AC(10VA)
DC(25W)
DHF2150XXX
2''
50
48
0.01
0.6
0.6





AC(15VA)
DC(16W)
DHF2115XXX
F1/2''
15
4.5
0.01
0.6
0.6
DHF2120XXX
F3/4''
20
9.3
0.01
0.6
0.6
DHF2125XXX
F1''
25
12
0.01
0.6
0.6





AC(5VA)
DC(28W)
DHF2132XXX
F1-1/4''
32
24
0.01
0.6
0.6
DHF2140XXX
F1-1/2''
40
29
0.01
0.6
0.6





AC(10VA)
DC(25W)
DHF2150XXX
F2''
50
48
0.01
0.6
0.6
