Pressure up to 200bar 250bar 300bar 12V 24V 220V high pressure solenoid valve

Product details
Port Size:1/4", 3/8", 1/2", 3/4", 1",1/4"~ 1";Media:Water, Air, Vacuum, Gas, Oil;
Sample leadtime:5~7 days;Application:General;
Power:Solenoid;Order leadtime:7~15 days;
Customized support:OEM;Supply Ability:10000 Pieces per Week 50 pcs per caton;
Coil:low power coil;Orifice:1.0, 1.5, 2.0, 2.5, 3.0, 10, 15, 20, 25;
Packaging Detail:Pressure up to 200bar 250bar 300bar 12V 24V 220V high pressure solenoid valve packed with polybag in white carton;Staff:200-500;
Type:high pressure solenoid valve,SOLENOID VALVES;Structure:Shutoff;
Package Preview:;Model Number:DHSE;
Payment Terms:L/C,Western Union,T/T,paypal;Place of Origin:Zhejiang, China;
Port:Shanghai;Product name:DHSE high pressure solenoid valve;
Temperature of Media:-10~180℃;Brand Name:Darhor;
Standard or Nonstandard:Standard;Material:Stainless steel;
Product Description

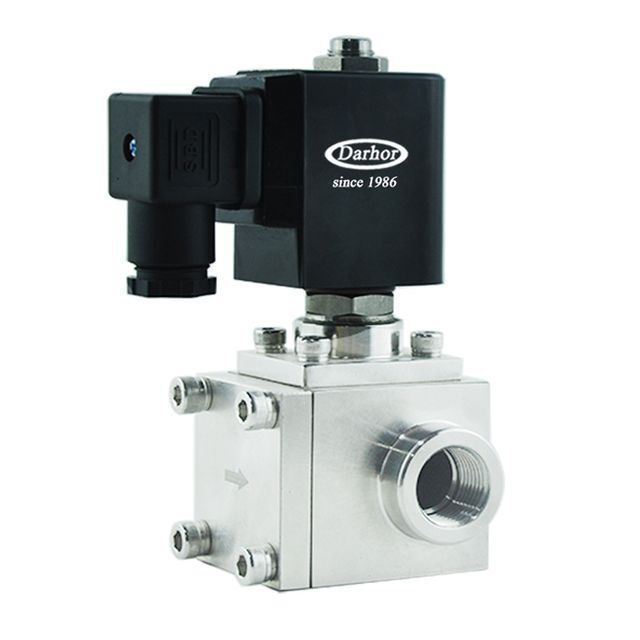

Pressure up to 200bar 250 bar 300bar 12V 24V 220V high pressure solenoid valve


Characteristic:

1.Two position two way high pressure solenoid valve.
2. With German Nass coil to improve the quality.

Material:

Body-SUS304
Seal- PU
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F

Stop- Stainless Steel 430F
Springs- SS304
Shading Rings- SS304

Medium:
High pressure liquid, Gas, Light oil.
Temperature:
PTFE Seal: -10℃ to 130℃
Pressure:
0-30.0 MPa
Port Size:
1/4'', 3/8'', 1/2'', 3/4'',1''
Port Thread:
NPT, G, BSP
Orifice(mm):
1,1.5,2,2.5,3,10,15,20,2513,20,25,32,40
Voltage:
DC - 12V,24V,36V   AC - 24V,120V,240V/60Hz;110V,220V/50Hz
Coils:
0580,30VA(AC),18W(DC),IP65,100%ED   With the LED indicator light connector
NASS COIL 0543 on request
Detailed Image
Related Products

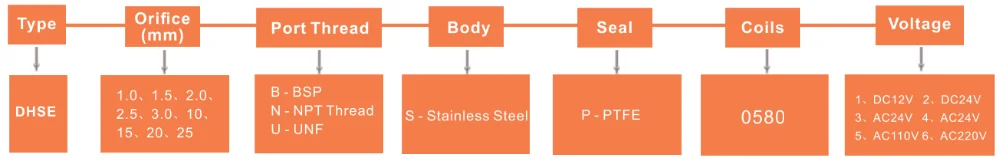

Specifications
DHSE Series high pressure solenoid valve Normally Closed, with Coil 0580, DIN
Valve
Body
Port
Size
Orifice
Cv
Min
Pressure
(MPa)
Max Pressure(MPa)
Seals
Material
Body
Material
AC(30VA)
DC(18)
DHSE1
1/4''
or
3/8''
1
0.04
0
30
15
PTFE
Stainless
steel
DHSE1.5
1.5
0.08
0
25
12
DHSE2
2
0.15
0
18
7
DHSE2.5
2.5
0.20
0
11
6
DHSE3
3
0.25
0
8
4
DHSE10
3/8''
10
3.5
6
16
12
DHSE15
1/2''
15
4.7
6
16
12
DHSE20
3/4''
20
7
6
16
12
DHSE25
1''
25
11
6
16
12
Certifications
Our Company

Each Darhor Valve pass 10 testings to ensure high quality!

Valve testing:                                                                       Coil testing:

high pressure test    low pressure test

leak detection   water hammer test    lifecycle test

            resistance test     current test

            power test       temperature test      noise test

Packing & Delivery

Shockproof Bag to protect valve


Strong Cartons

1.English neutral packaging
2.with Darhor logo
3.with your logo (Charged)

membrane outside protect rain

Package more than 40kgs,use
Fumigated wooden case or pallet.

We will compensate to the damage!pls contact within 3 days when you receive.
