Direct acting SS304 SS316 220VAC 24VDC stainless steel water solenoid valve

Product details
Media:Air, Gas, Water, Light oil, etc.;sample lead time:5~7 days;
Certifications:CE, ROHS, ISO, TUV;Order lead time:7~10 days;
Single gross weight:1.5 KG;Package Preview:https://sc01.alicdn.com/kf/HLB1S9RVbELrK1Rjy0Fjq6zYXFXa5.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HLB1.TlLbsTxK1Rjy0Fgq6yovpXao.jpg_640x640.jpg;
orifice:12, 15, 20, 25, 32, 40, 50;warranty:one year guaranteed;
Model Number:2W21;Temperature of Media:Medium Temperature;
Application:General;Material:Stainless steel;
Port Size:3/8"~2";Keyword:stainless steel water solenoid valve;
Product name:2W21 stainless steel solenoid valve;Brand Name:Darhor;
Single package size:20X20X15 cm;Thread:NPT, BSP, G;
Selling Units:Single item;Place of Origin:China;
Package Type:Direct acting SS304 SS316 220VAC 24VDC stainless steel water solenoid valve Packed in wooden box;Power:Solenoid;
Standard or Nonstandard:Standard;Structure:Diaphragm;
Product Description

Direct acting SS304 SS316 220VAC 24VDC stainless steel water solenoid valve


Characteristic:

1. Direct lifting diaphragm construction;
2. Open from zero bar for low pressure system use;
3. High frequency of flying lead coil.

Material:

Body-Brass,Stainless steel
Seal- NBR, EPDM or VITON
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F

Stop- Stainless Steel 430F
Springs- SS304
Shading Rings- Copper

Medium:
Air, Gas, Water, Light oil, etc.
Temperature:
NBR Seal:-10℃ to 80℃   EPDM Seal: - 10℃ to 120℃   VITON Seal: -10℃ to 150℃
Pressure:
0-1.0 MPa
Port Size:
3/8'',1/2'',3/4'',1'',1 1/4'',1 1/2'',2''
Port Thread:
G, BSP, NPT, Flange
Orifice(mm):
12,15,20,25,32,40,50
Voltage:
DC -6V,12V,24V   AC -12V,24V,120V,240V/60Hz'110V,22V/50Hz   Tolerance:+/-10%
Coils:
S51B,30VA(AC),24W(DC),IP65,100%ED   SD01B,28VA(AC),36W(DC),IP65,100%ED
Specifications
2W21 series stainless steel solenoid valve, with Coil S51B/SD01B,DIN
Valve Body
Port
Size
Orifice
Cv
Min
Pressure
(MPa)

Max Pressure(MPa)
Seals
Material
Body
Material
AC(30VA)
DC(24W)
2W2112XXX
3/8''
12
4.5
0.0
1.0
1.0
NBR,
EPDM,
or VITON
Brass,or
Stainless
steel
2W2115XXX
1/2''
15
4.5
0.0
1.0
1.0
2W2120XXX
3/4''
20
9.3
0.0
1.0
1.0
2W2125XXX
1''
25
12
0.0
1.0
1.0





AC(28VA)
DC(36VA)

2W2132XXX
1 1/4''
32
24
0.0
1.0
1.0
2W2140XXX
1 1/2''
40
29
0.0
1.0
1.0
2W2150XXX
2''
50
48
0.0
1.0
1.0
Related Products

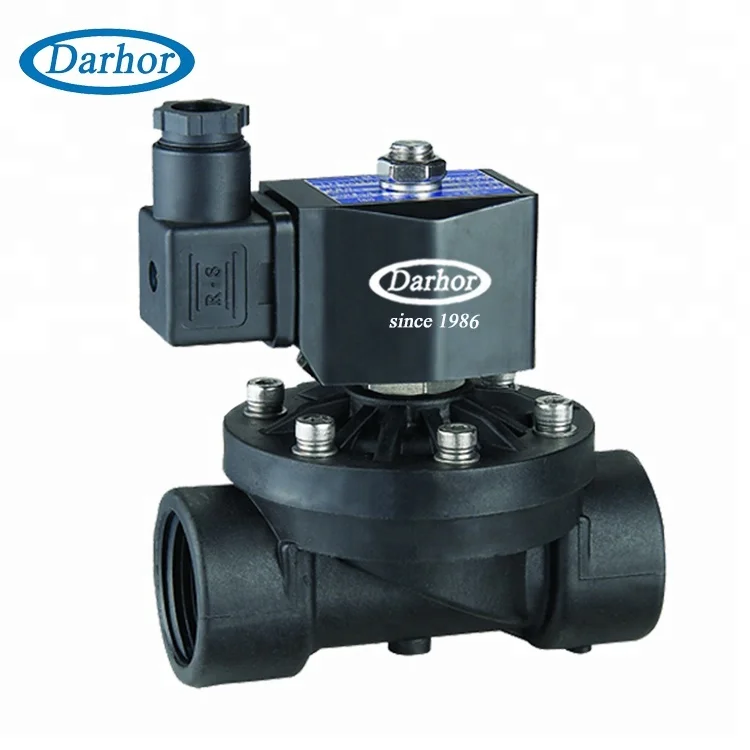

2W51 plastic solenoid valve
For Air, Gas, Water, Light oil, etc.
Normally closed or Normally open
Direct acting type
3/8"~2"   0~7bar,

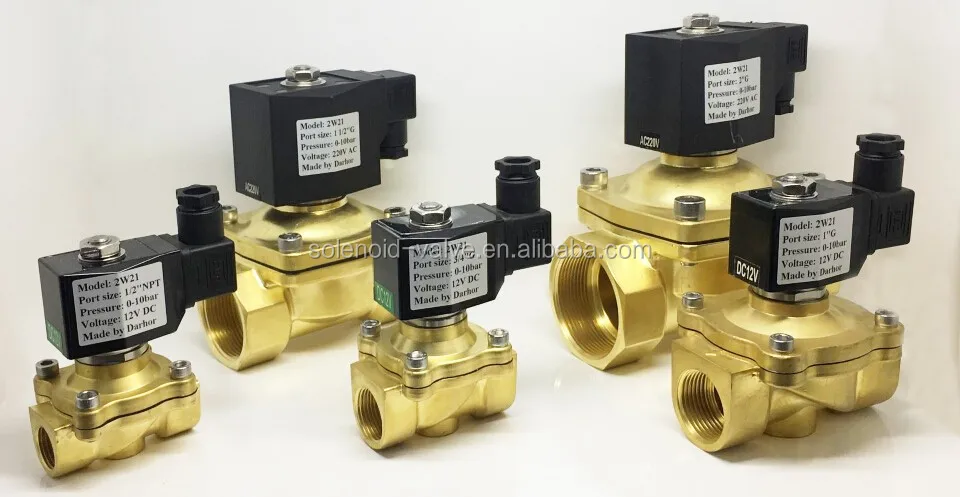

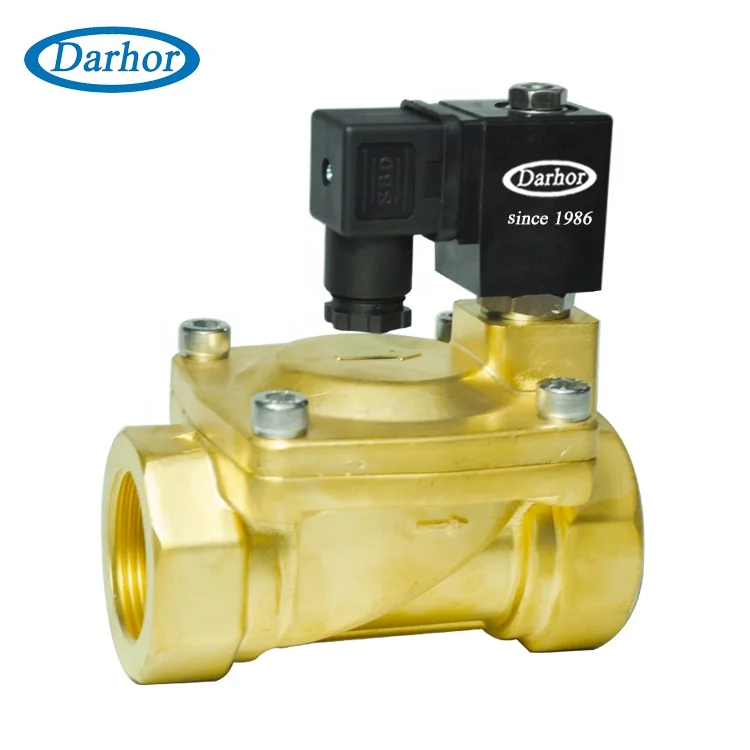

2W21 high quality solenoid valve

For For Air, Gas, Water, Light oil, etc.

Normally closed or Normally open

3/8"~2",     0~10bar,

Direct acting type

Brass, SS304, or SS316

DHD31 Pilot operated solenoid valve

For For Air, Gas, Water, Light oil, etc.

Normally closed or Normally open

3/8"~2"    0.3~16bar

Brass, SS304, or SS316

Detailed Image
Certifications
Our Company

Each Darhor Valve pass 10 testings to ensure high quality!

Valve testing:                                                                       Coil testing:

high pressure test    low pressure test

leak detection   water hammer test    lifecycle test

            resistance test     current test

            power test       temperature test      noise test

Packing & Delivery

Shockproof Bag to protect valve


Strong Cartons

1.English neutral packaging
2.with Darhor logo
3.with your logo (Charged)

membrane outside protect rain

Package more than 40kgs,use
Fumigated wooden case or pallet.

We will compensate to the damage!pls contact within 3 days when you receive.
