Black HackRF One box 1MHz-6GHz SDR Platform Software Defined Radio Development Board

Product details
Package Type:Package list: - 1 x HackRF One Software Defined Radio - 1 x USB cable - 1 x FM antenna;Place of Origin:Guangdong China;
Name:HackRF One;Shipping weight:0.6kg/pcs;
Selling Units:Single item;Operating frequency:1 MHz to 6 GHz;
Single package size:20X10X10 cm;Model Number:51627;
Brand Name:TZT;Single gross weight:0.6 KG;

Black HackRF One box 1MHz-6GHz SDR Platform Software Defined Radio Development Board

Product Description



Description:
HackRF One from Great Scott Gadgets is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz. Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.

HackRF One has an injection molded plastic enclosure and ships with a micro USB cable. An antenna is not included. ANT500 is recommended as a starter antenna for HackRF One.

HackRF One is test equipment for RF systems. It has not been tested for compliance with regulations governing transmission of radio signals. You are responsible for using your HackRF One legally.

Specifications:
- 1MHz to 6 GHz operating frequency
- Half-duplex transceiver
- Up to 20 million samples per second
- 8-bit quadrature samples (8-bit I and 8-bit Q)
- Compatible with GNU Radio, SDR#, and more
- Software-configurable RX and TX gain and baseband filter
- Software-controlled antenna port power (50 mA at 3.3 V)
- SMA female antenna connector
- SMA female clock input and output for synchronization
- Convenient buttons for programming
- Internal pin headers for expansion
- Hi-Speed USB 2.0
- USB-powered
- Open source hardware

Package list:
- 1 x HackRF One Software Defined Radio
- 1 x USB cable
- 1 x FM antenna

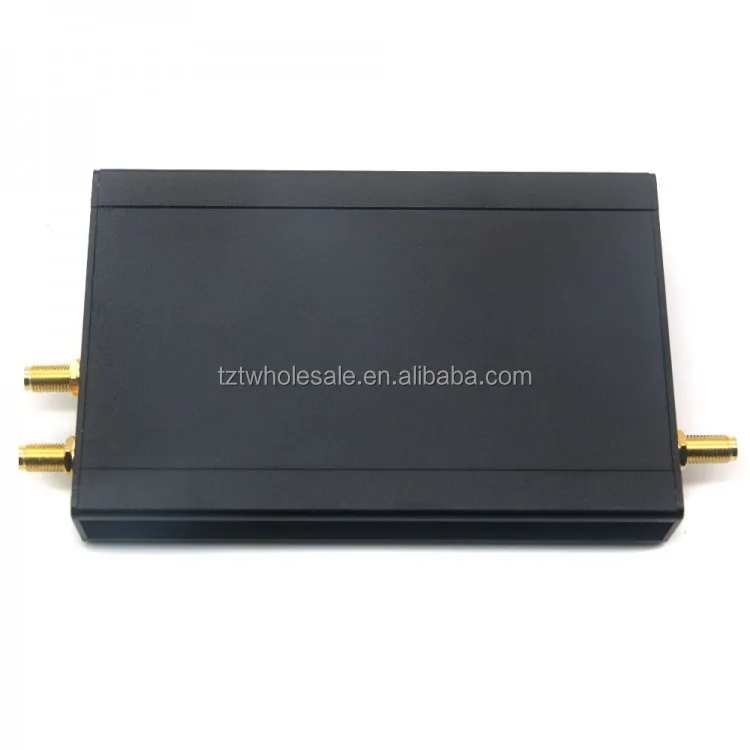

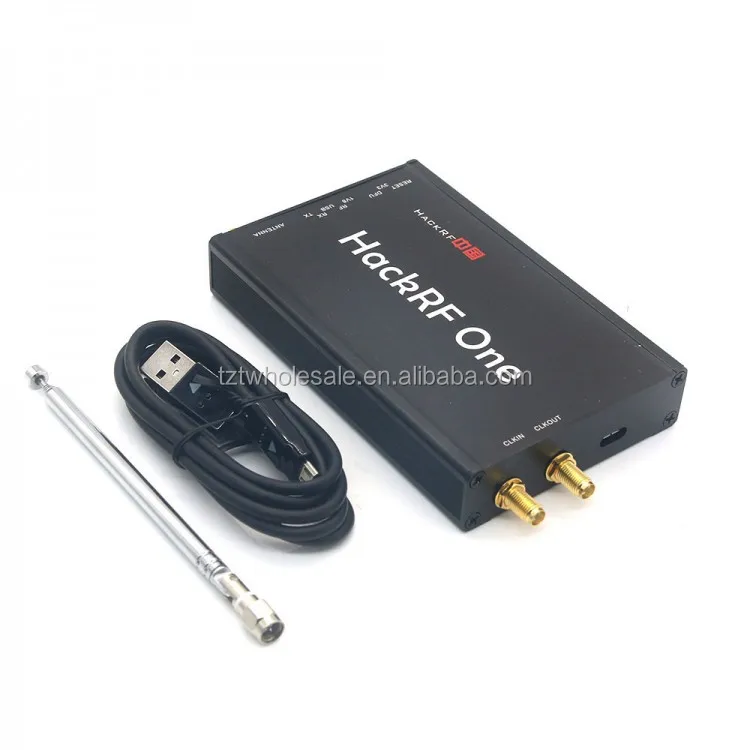

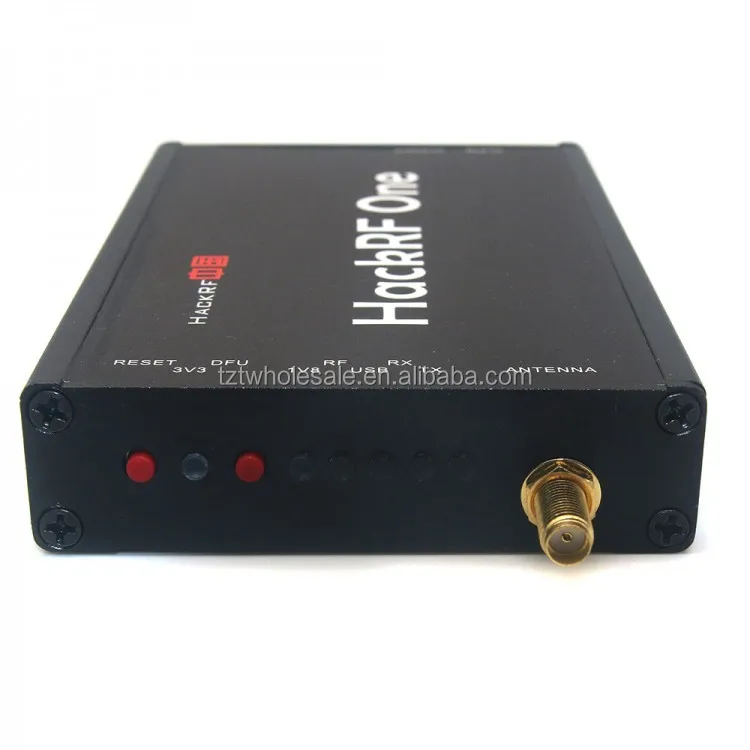

Detail photo
