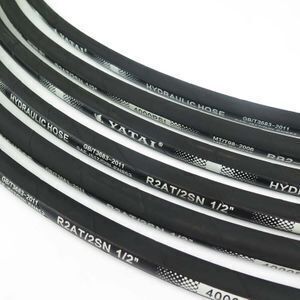

2 inch Soft Flexible r2 2sn hydraulic rubber hose

Supplier: Hengshui Yatai Especial Rubber Products Co., Ltd.
Region: Hebei, China
Contact: Ms Amy Cui
Price: $5.22 / >=2 meters
Min. Order: 2 meters

Click here to contact

Product details

Model Number:	requirements;	Package Preview:	https://sc01.alicdn.com/kf/HTB1sXMxXNrvK1RjSszeq6yObFXam.jpg_640x640.jpg;
Tube:	Synthetic rubber;	Single gross weight:	1.88 KG;
Reinforcement:	two high tensile steel wire braid;	Brand Name:	YATAI;
Length:	40 m/roll;	Color:	Black Red Blue Green Yellow;
Selling Units:	Single item;	Surface:	cloth;
Standard:	SAE100 R2/EN853 2SN;	MOQ:	1;
Package Type:	1.The default is the wear-resistant woven strip packaging 2.If you need other packaging like wooden box and pallet,please contact us. 3.The volume is for 1 roll and the weight is for 1 m.;	Cover:	ENVIRONMENT RESISTANT SYNTHETIC RUBBER;
Single package size:	130X130X44 cm;	Tempearture:	-40 ℃ to + 120 ℃;
Place of Origin:	Hebei China;	Working pressure:	80bar;

2 inch Soft Flexible r2 2sn hydraulic rubber hose

Product Description

APPLICATIONS & FLUIDS

Hydraulics: Medium-high pressure lines

Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water.

HOSE MARKING:YATAI HYDRAULIC HOSE SAE 100 R2 AT 1″ EN 853 2SN DN25 W.P.165BAR 2400PSI

YATAI PART.REF.	HOSE I.D			R.O.D	O.D	MAX W.P		MIN B.P		MIN B.R	W.T
YATAI PART.REF.	DN	dash	inch	mm	mm	bar	psi	bar	psi	mm	Kg/m
WB 2SN 5	5	-3	3/16"	11,3	11,3	415	6010	1650	23920	89	0.32
WB 2SN 6	6	-4	1/4"	12,7	14,7	400	5800	1600	23200	100	0.36
WB 2SN 8	8	-5	5/16"	14,3	16,3	350	5070	1400	20300	114	0.40
WB 2SN 10	10	-6	3/8"	16,7	18,7	330	4780	1320	19140	127	0.51
WB 2SN 12	12	-8	1/2"	19,8	21,8	275	3980	1100	15950	178	0.62
WB 2SN 16	16	-10	5/8"	23,0	25,0	250	3620	1000	14500	200	0.72
WB 2SN 19	19	-12	3/4"	27,0	29,0	215	3110	860	12470	240	0.96
WB 2SN 25	25	-16	1"	34,8	36,8	165	2390	650	9420	300	1.32
WB 2SN 31	31	-20	1.1/4"	44,3	47,0	125	1810	500	7250	419	1.97
WB 2SN 38	38	-24	1.1/2"	50,7	53,4	90	1300	360	5220	500	2.27
WB 2SN 51	51	-32	2"	63,5	66,2	80	1160	320	4640	630	3.12

CONTINUOUS SERVICE TEMPERATURE RANGE: -40°F / +212°F; -40°C / +100°C
MAX OPERATING TEMPERATURE: 250°F 121°C
INSERT: SHF-TYPE

TUBE: OIL RESISTANT SYNTHETIC RUBBER

REINFORCEMENT: TWO HIGH TENSILE STEEL BRAIDS

COVER: ENVIRONMENT RESISTANT SYNTHETIC RUBBER

APPLICABLE SPECS: EN 853 2SN - SAE 100 R2AT - ISO 1436-1 2SN/R2AT

WB more products

Company Information

Packaging & Shipping

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white wearable woven bags. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
