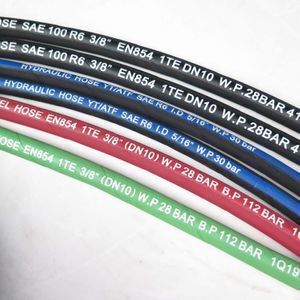

SAE 100 R6 1/2 inch black air hydraulic hose and hydraulic rubber hose

Supplier: Hengshui Yatai Especial Rubber Products Co., Ltd.
Region: Hebei, China
Contact: Ms Amy Cui
Price: $1.00 / >=200 meters
Min. Order: 200 meters

Click here to contact

Product details

Place of Origin:	Hebei China (Mainland);	Certification:	ISO9001 CCS CE MSHA;
Package Type:	Generally speaking, the packaging method is white wear-resistant woven strip, which can be packaged according to the customer's prescribed method.;	Single gross weight:	10.75 KG;
Selling Units:	Single item;	Model Number:	1/2 inch;
Surface:	Smooth Surface or Wrap Surface;	Name:	SAE 100 R6 1/2 inch black air hydraulic hose and hydraulic rubber hose;
Brand Name:	YATAI;	Temperature:	-40℃-120℃;
Length:	50 or 100;	Working temperature:	28bar;
Single package size:	65X65X12 cm;	Package Preview:	https://sc01.alicdn.com/kf/HTB1lhKEaInrK1RjSspkq6yuvXXaP.jpg_640x640.jpg;
Usage:	Construction machinery;	Size:	1/2";
Color:	Black AND multicolor;	Material:	NBR EPDM natural rubber;

SAE 100 R6 black air hydraulic hose and hydraulic rubber hose

APPLICATIONS

Handling crude oil, salt and fresh water, tank bottoms, drilling mud, dilute solutions of hydrochloric acids, diesel fuels and sewage transfer.

HOSE MARKING:YATAI AIR HOSE 1″(DN25) W.P 20BAR 2900PSI

YATAI PART.REF.	HOSE SIZE I.D			O.D	MAX W.P		MIN B.P		MIN B.R	W.T
YATAI PART.REF.	DN	dash	inch	mm	bar	psi	bar	psi	mm	Kg/m
MP 10	10	-6	3/8"	18	30	435	90	1305	130	0.30
MP 12	12	-8	1/2"	23	30	435	90	1305	180	0.46
MP 16	16	-10	5/8"	26	25	362.5	75	1089	210	0.53
MP 19	19	-12	3/4"	29	25	362.5	75	1089	240	0.60
MP 22	22	-14	7/8"	32	20	290	60	900	280	0.80
MP 25	25	-16	1"	35	20	290	60	900	375	0.93
MP 32	32	-20	1-1/4"	42	15	217.5	45	654	420	1.25
MP 38	38	-24	1-1/2"	48	15	217.5	45	654	500	1.47
MP 45	45	-28	1-3/4"	56	12	174	36	522	630	1.76
MP 50	50	-32	2"	64	12	174	36	522	630	1.92
MP 57	57	-36	2-1/4"	70	10	145	30	450	855	2.10
MP 64	64	-40	2-1/2"	78	10	145	30	450	960	2.56
MP 76	76	-48	3"	90	8	116	24	348	1140	2.96
MP 90	90	-56	3-1/2"	106	6	87	18	261	1350	3.70
MP 100	100	-64	4"	120	6	87	18	261	1530	4.30

CONTINUOUS SERVICE TEMPERATURE RANGE: -20°F / +180°F; -30°C / +80°C
CONTINUOUS WORKING TEMPERATURE RANGE:- + 20 ° F / 180 ° F;+ 80 ° TO 30 ° C/C

THE AWARD USES TEMPERATURE:- + 20 ° F / 180 ° F;+ 80 ° TO 30 ° C/C
