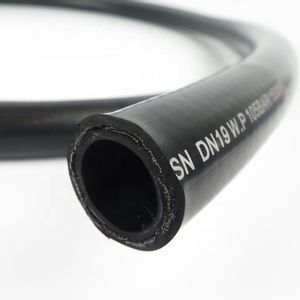

1/4 inch Flexible SAE 100 R1 Smooth Surface One high tensile steel braid oil hose

Supplier: Hengshui Yatai Especial Rubber Products Co., Ltd.
Region: Hebei, China
Contact: Ms Amy Cui
Price: $0.72 /meter
Min. Order: 1 meter

Click here to contact

Product details

Single gross weight:	0.22 KG;	Product name:	SAE 100 R1 Smooth Surface One high tensile steel braid oil hose;
Working temperature:	-40℃ to + 120℃;	Package Preview:	;
Single package size:	55X55X8.5 cm;	Length:	50m/roll;
Surface:	smooth or cloth;	Brand Name:	YATAI;
Packaging Detail:	1.The default is the wear-resistant woven strip packaging 2.If you need other packaging like wooden box and pallet,please contact us. 3.The volume is for 1 roll and the weight is for 1 m.;	Cover:	ENVIRONMENT RESISTANT SYNTHETIC RUBBER;
Working pressure:	215bar;	Place of Origin:	Hebei China;
Reinforcement:	One High Tensile Steel Wire Braided;	Standard:	SAE100 R1/DIN EN853 1SN;
Selling Units:	Single item;	Color:	Blue Yellow Green Black Red;
Tube:	Oil Resistant Systhetic Rubber;	Model Number:	as you like;

1/4 inch Flexible SAE 100 R1 Smooth Surface One high tensile steel braid oil hose

Product Description

APPLICATIONS & FLUIDS

Hydraulics: Low-medium pressure lines, return lines

Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water.

HOSE MARKING:YATAI HYDRAULIC HOSE SAE 100 R1 AT 1″ EN 853 1SN DN25 W.P.87BAR 1280PSI

YATAI PART.REF.	HOSE SIZE I.D			R.O.D	O.D	MAX W.P		MIN B.P		MIN B.R	W.T
YATAI PART.REF.	DN	dash	inch	mm	mm	bar	psi	bar	psi	mm	Kg/m
WB 1SN 5	5	-3	3/16"	9.5	11.5	250	3620	1000	14500	89	0.20
WB 1SN 6	6	-4	1/4"	11.2	13.2	225	3260	900	13050	100	0.22
WB 1SN 8	8	-5	5/16"	12.8	14.8	215	3110	850	12320	114	0.27
WB 1SN 10	10	-6	3/8"	15.1	17.1	180	2610	720	10440	127	0.34
WB 1SN 12	12	-8	1/2"	18.1	20.1	160	2320	640	9280	178	0.41
WB 1SN 16	16	-10	5/8"	21.3	23.3	130	1880	520	7540	200	0.51
WB 1SN 19	19	-12	3/4"	25.3	27.3	105	1520	420	6090	240	0.62
WB 1SN 25	25	-16	1"	33.1	35.1	88	1270	350	5070	300	0.93
WB 1SN 31	31	-20	1.1/4"	40.6	43.3	63	910	250	3620	419	1.25
WB 1SN 38	38	-24	1.1/2"	47.0	49.7	50	720	200	2900	500	1.60
WB 1SN 51	51	-32	2"	60.4	63.1	40	580	160	2320	630	2.20

CONTINUOUS SERVICE TEMPERATURE RANGE: -40°F / +212°F; -40°C / +100°C
MAX OPERATING TEMPERATURE: 250°F 121°C

INSERT: SHF-TYPE

TUBE: OIL RESISTANT SYNTHETIC RUBBER

REINFORCEMENT: ONE HIGH TENSILE STEEL BRAID

COVER: ENVIRONMENT RESISTANT SYNTHETIC RUBBER

APPLICABLE SPECS: EN 853 1SN - SAE 100 R1AT - ISO 1436-1 1SN/R1AT

WB more products

Packaging & Shipping

Company Information

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white wearable woven bags. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
