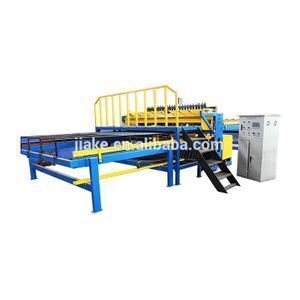

reinforcing wire mesh welding machines JK RM 2500B

Supplier: Hebei Jiake Welding Equipment Co., Ltd.
Region: Hebei, China
Contact: Mr Michael Zhang
Price: $42000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimensions:	14m3.1m2.3m;	cross wire length(mesh width):	2.5m or as required;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	Primary Voltage:	380V;
Rated Duty Cycle:	11;	Supply Ability:	30 Set/Sets per Month reinforcing wire mesh welding machine;
welding speed:	40-65 corss wires per minute;	Rated Capacity:	150KVA*12;
Usage:	reinforcing mesh;	weling sopt:	24pcs or as required;
Packaging Detail:	40ft container for loading;	Place of Origin:	Hebei China;
Port:	xingang;	Payment Terms:	L/C,T/T,Western Union;
Warranty:	2 years;	wire diameter:	5-12mm;
Brand Name:	JIAKE;

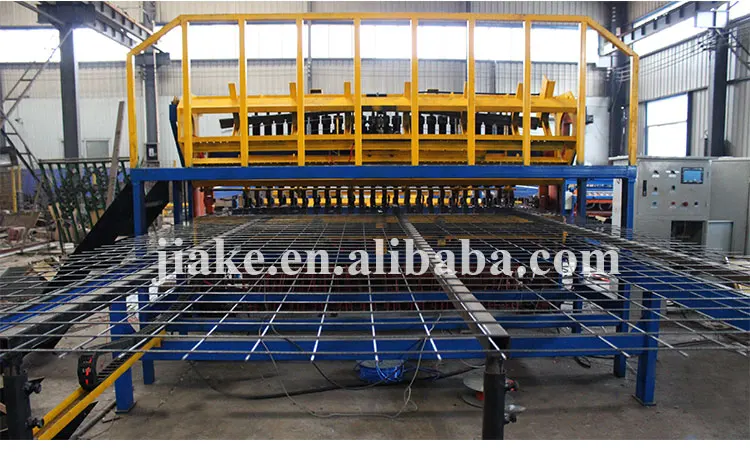

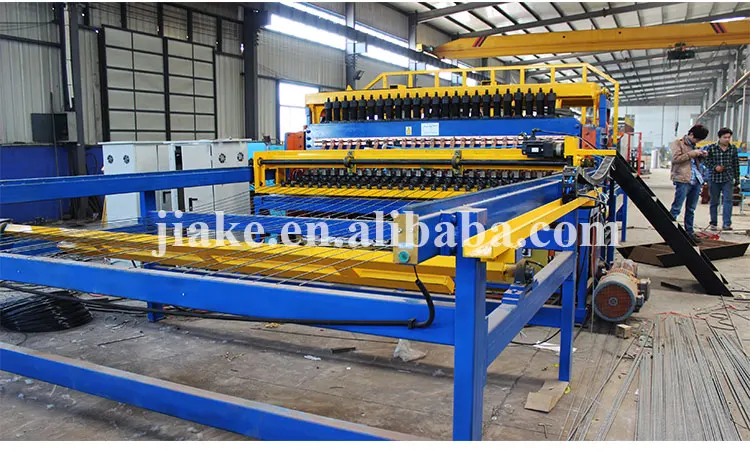

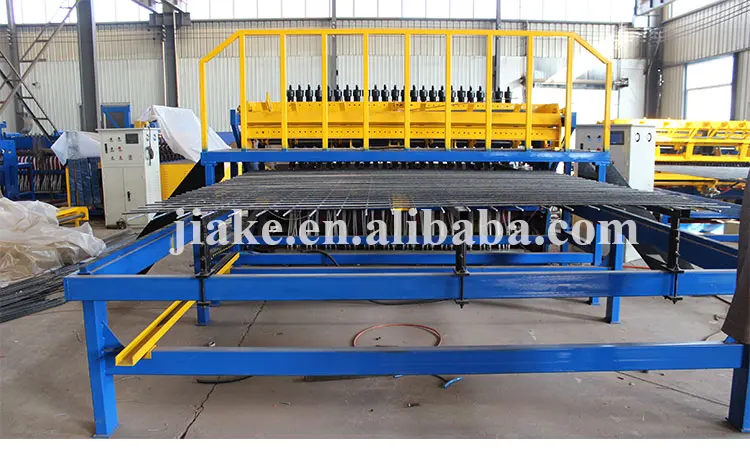

reinforcing wire mesh welding machine

Product Description

Reinforcing mesh welding line,also called BRC mesh welding machine,construction mesh welding machine.with more than 20 years experience on design and manufacturer,our BRC mesh welding machine is featured by high capacity,easy operation and precise control.

Model	DP-FP-2500A	DP-FP-2500B	DP-GW-2500A
Wire diameter	3-6mm	3-8mm	4-10mm/5-12mm
Line wire pitch	50-300mm	100-300mm	100-300mm
Cross wire pitch	Min.25mm/12.7mm	Min.50mm	Min.50mm
Mesh length	Max.6m	Max.12m	Max.12m
Mesh width	Max.2500mm/Max.3000mm
Welding torch	Max.48/61pcs	Max.24/30pcs	Max.24/30pcs
Welding transformer	150kva*6/8pcs	150kva*6/8pcs	150kva*12/15pcs
Welding speed	Max.80 times/min	Max.75 times/min	Max.65 times/min
Weight	5200kg	6200kg	8500kg
Machine size	5.43.41.6m	163.91.6m	205.52.1m

♦ we can design the machine according to your wire diamter,mesh hole size and mesh width.

Product details

Auxiliary Equipment

Reinforcing mesh welding machine includes mail welding machine,steel bar straightening and cutting machine,cold steel ribbed bar rolling machine.so you can manufacturer ribbed bar steel mesh to meet market demand.

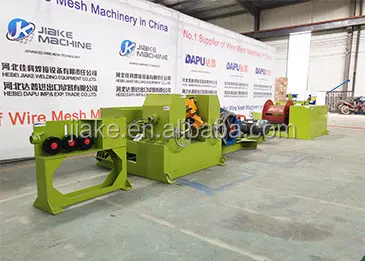

Cold rolling steel bar ribbed machine
	Model:LZ-15000T
	Wire diameter:5-12mm
	Speed:90-120m/min
	Motor capacity:55kw+7.5kw
	Motor Frequency inverter:55kw+11kw
	Wire spool: 1T/bundle
	Material:hor rolling plain bar
	Ribbed depth:0.2-0.5mm
	Weight:4500kg

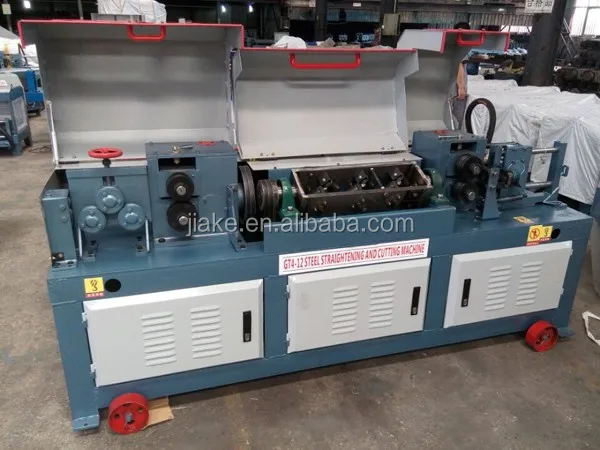

Rebar/wire straightening and cutting machine
	Model:GT4-12/ 6-14
	Wire diameter:4-12mm/ 6-14mm
	Max.Length:6000/10000mm
	Capacity:35m/min
	Material:all metal wire, carbon wire
	Cutting motor:0.75 kw or as your request
	Control system:PLC controller
	Application:Steel Bar Straightening Cuttting
	Function:Cutting Wire Rod/sheet

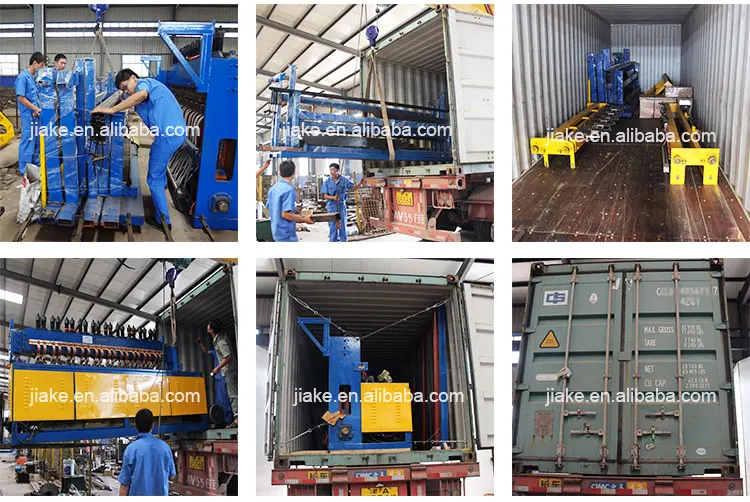

Packaging & Shipping

Company Information

FAQ

Q:Where is your factory located?

A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.

Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.

Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.

Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.

Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
