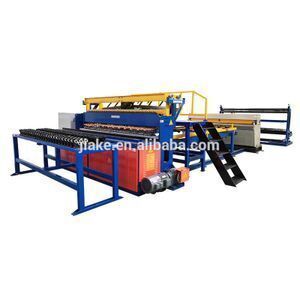

Road construction mesh welding machine 3-6mm roll welded wire mesh welding machine

Supplier: Hebei Jiake Welding Equipment Co., Ltd.
Region: Hebei, China
Contact: Mr Michael Zhang
Price: $13000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	2 years;	Wire Diameter (mm):	3 - 6 mm;
Product name:	mesh welding machine;	keyword:	welded wire mesh welding machine;
Mesh length:	max. 50M;	Local Service Location:	Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Egypt,Turkey,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand;
Power (kW):	5;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Machine Type:	Wire Mesh Welding Machine;	Supply Ability:	20 Set/Sets per Month;
Video outgoing-inspection:	Provided;	Key Selling Points:	High Productivity;
Weight (KG):	5500;	Port:	Xingang port, China;
Packaging Detail:	Plastic package and fixed with steel wire. welded wire mesh welding machine;	After-sales Service Provided:	Free spare parts,Online support,Video technical support,Field maintenance and repair service;
Longitude wire space:	50-300mm;	Production Capacity:	150-225m/h;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Core Components:	PLC,Motor;
Cooling system:	water cooling system;	Condition:	New;
Marketing Type:	New Product 2020;	Cross wire space:	min. 50mm;
Wire diameter:	3-6mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Warranty of core components:	1 Year;	Brand Name:	JIAKE;
Certification:	CE;	Machinery Test Report:	Provided;
Usage:	welded wire mesh machine in roll;	Showroom Location:	Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Malaysia,Egypt,Turkey,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand;
Model Number:	DP-FP-2500BN;	Place of Origin:	Hebei China;
Mesh width:	max. 2500mm;

Road construction Mesh welding machine 3-6mm welded wire mesh machine in roll

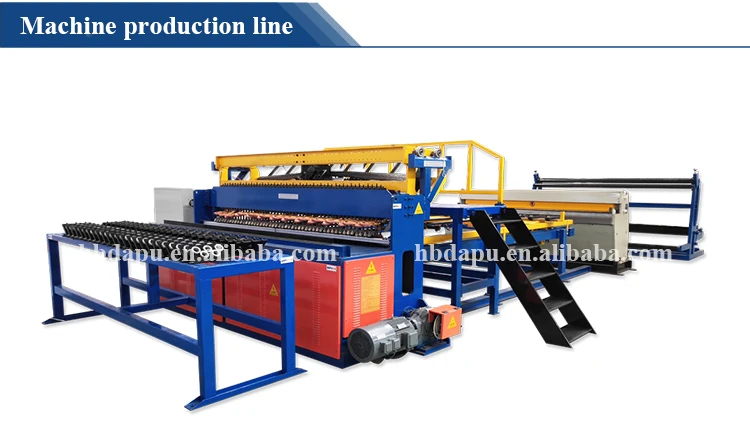

Roll mesh welding machine

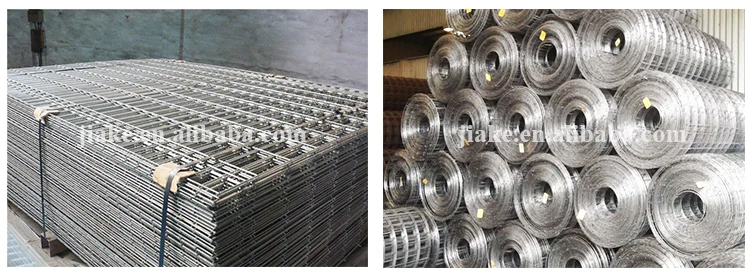

Roll mesh welding line, also called automatic welded mesh machine, welded wire mesh roll machine, used to make road mesh, reinforcing mesh, construction mesh, etc.

Model	DP-FP-2500BN	Wire diameter	2.5-6mm
Line wire pitch	50-300mm	Cross wire pitch	Min.50mm
Welding width	Max.2500mm	Roll length	Max.100mm
Welding speed	Max.75 times/min	Welding torch	48pcs
Welding transformer	150kva*6pcs	Mesh type	roll mesh and panel

The function of the products:
Roll mesh welding line, also called automatic welded mesh machine, welded wire mesh roll machine, used to make road mesh, reinforcing mesh, construction mesh, etc;

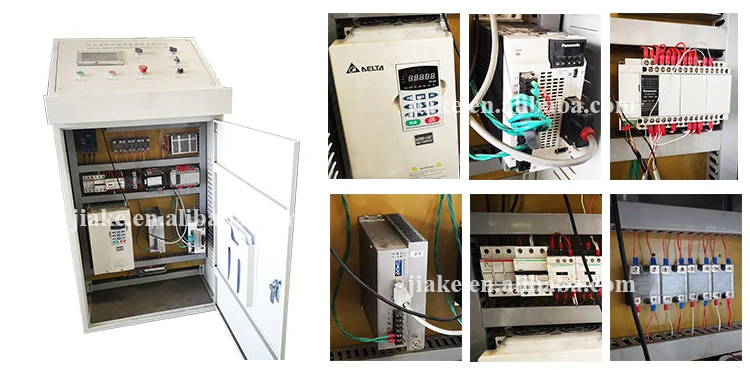

Our electric control cabinets all use world-famous brand electronic components.
Taiwan brand reducer, Japan brand PLC control system and servomotor, Franch brand and Sweden brand switch...

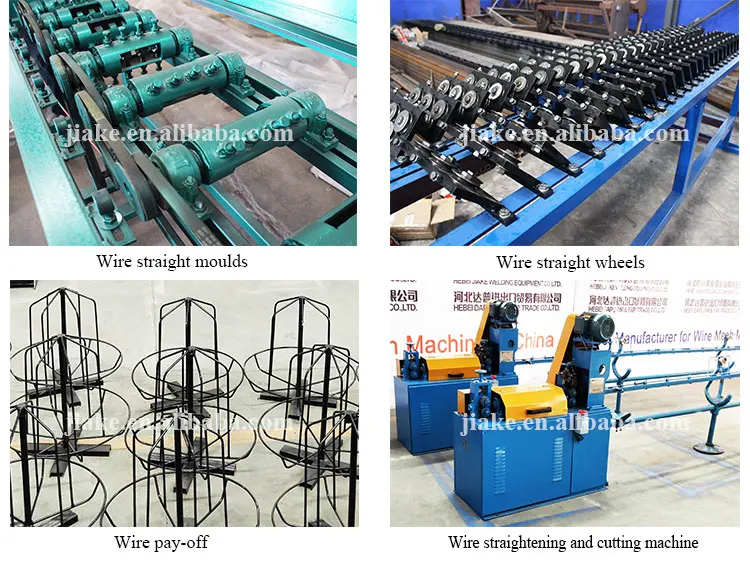

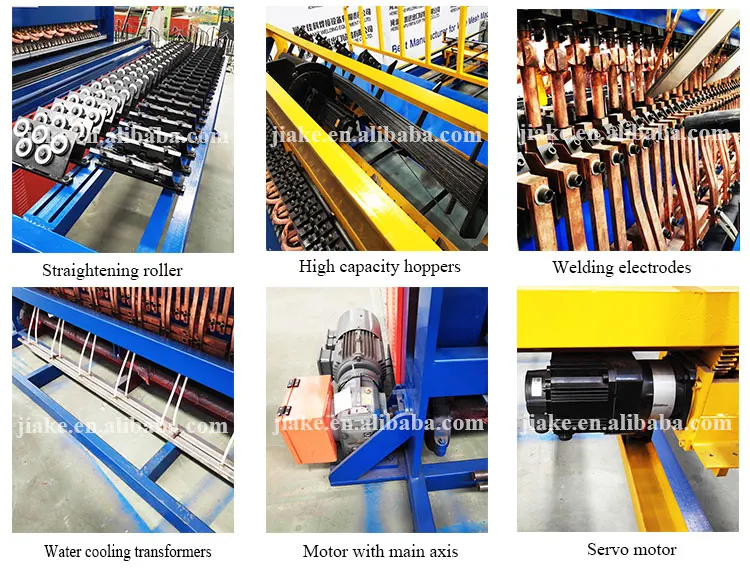

1. the line wire feeding on wire coils automatically, through the straight wheels device, make the line wire more straight and finished mesh will be more smooth;
2. cross wire need be pre-straight& cutting and then feeding on hopper automatically;
3. our welding electrodes used 20mm diameter pure copper, durable;
4. the welding transformer use water cooling system, protect machine can running well in a hot area or long time working;
5. the main motor (5.5kw) and helical gear reducer connect the main axis directly, big transmission torque;
6. The cable carrier is imported from Germany, the best one all over the world, protect machine wire, not hung down;

——————FAQ——————

Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.

Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.

Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.

Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.

Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
