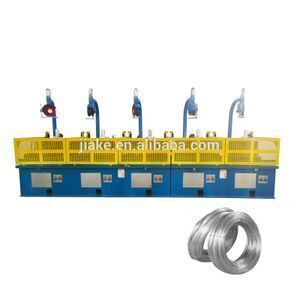

Factory sales pulley type wire drawing machine

Supplier: Hebei Jiake Welding Equipment Co., Ltd.
Region: Hebei, China
Contact: Mr Michael Zhang
Price: $5500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Outlet Diameter:	2mm;	Core Components:	Motor,PLC;
Voltage:	220V/380V/415V/440V;	Supply Ability:	30 Set/Sets per Month;
Production:	422m/min (5 tons/8hours );	Certification:	ISO9001;
Raw material:	low-carbon steel wire (Q195, Q215, and Q 235.);	Dia. of pot:	550mm;
Brand Name:	JIAKE;	Motor:	18.5KW, 4 level, 1440r/min;
Machinery Test Report:	Provided;	Place of origin:	Hebei,China;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	After-sales Service Provided:	Engineers available to service machinery overseas,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Warranty of core components:	1 Year;	Packaging Detail:	seaworthy packing;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Marketing Type:	Ordinary Product;
Port:	Tianjin,China;	Wire diameter:	Inlet 6mm and outlet 2mm;
Place of Origin:	Hebei China;	Video outgoing-inspection:	Provided;
Applicable Industries:	Manufacturing Plant;	Number of blocks:	8;
Power:	18500;	Year:	New;
Key Selling Points:	Easy to Operate;	Inverter brand:	INVT inverter, saving 30% electricity;
Dimension(LWH):	1.51.52.2m;	Showroom Location:	None;
Warranty:	1 Year;	Weight:	1500 KG;
Unit Weight:	1400 KGS;	Inlet Diameter:	6.5mm;
Condition:	New;	Local Service Location:	None;

Product Description

Wire drawing machine, as a part of the steel wire rod as raw material and reduces its diameter as much as you need; If you can’t find the suitable wire diameter in your local market, you can use this machine to make different diameters of black wire or GI wire according to different applications; We can design the wire drawing machine according to your request about input wire diameter and output wire diameter; Also our wire drawing machine can produce round wire to ribbed wire.

Technical parameter

OTO 550/ 560 pulley wire drawing machine

Model	550
Raw material	low-carbon steel wire (Q195, Q215, and Q 235.)
Number of blocks	8
Wire diameter	Inlet 6mm and outlet 2mm
Motor	18.5KW, 4 level, 1440r/min
Production	422m/min (5 tons/8hours )
Inverter brand	INVT inverter, saving 30% electricity
Drawing path	1-6
Dia. of pot	550mm
Dimension	41.6852.1M
Unit Weight	1400 KGS

We can design a solution according to your input and output wire diameter; or ribbed wire

Straight wire drawing machine

Model	LZ-560
Dia. Of pot	560 mm
Number of blocks	10
Wire diameter	Inlet Max. 5.5mm and outlet Min. 1.6mm
Compression (%)	Max. 91.54
Average compression(%)	21.88
Input wire tensile strength	≤600mpa
Max. wire feeding speed	16.66m/ s (1000 m/ min)
Motor	22KW
Mould size	40mm* 25
Pot arrangement	Upright
Wire feeding	From left to right

We can design a solution according to your input and output wire diameter; or ribbed wire

auxiliary equipment

Packaging & Shipping

Customer factory

Certifications

About Us

Hebei Jiake Welding Equipment Co., Ltd. It’s the leading manufacturer of wire mesh machines in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.

customer visit

FAQ

Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.

Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our technology to develop the department and testing department.

Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.

Q: What's the guaranteed time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.

Q: Can you export and supply the customs clearance documents we need?
A: We have much experience with exporting. And we can supply the CE certificate, Form E, passport, SGS report, etc, your customs clearance will be no problem.
