high durability automatic double strand barbed wire making machine

Supplier: Hebei Jiake Welding Equipment Co., Ltd.
Region: Hebei, China
Contact: Mr Michael Zhang
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

twisted number:	3-5;	After-sales Service Provided:	Free spare parts,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;
Theoretical production:	77kg/hour;	Total weight:	1200kg;
Model Number:	CS-A CS-B CS-C;	Producing speed:	20m/min;
line wire diameter:	1.5-3.0mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,different payment terms for different countries;
Port:	Tianjin Port;	Product name:	barbed wire making machine;
Supply Ability:	45 Set/Sets per Month barbed wire making machine;	barbed wire diameter:	1.6-2.8mm;
Place of Origin:	Hebei China;	Weight:	1200kg;
main drive shaft speed:	402 r/min;	motor power:	2.2 kw/3 kw;
Brand Name:	Jiake;	Warranty:	2 years;
Packaging Detail:	Wooden pallet in the container plastic film outside the machine or as your request;	barbed space:	76/102 / 127mm;

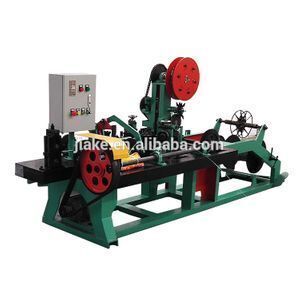

high durability automatic double strand barbed wire making machine

Barbed wire machine is used to produce barbed wire, which is widely used for playground fence, animal husbandry,safety protection functions,national defense,agriculture,expressway, etc.

We always keep the best professional design and manufacturing technology in this barbed wire machines with over 25 years experience

Technical parameter

Specifications	Unit	CS-A	CS-B	CS-C
Motor power	kw	2.2/23	2.2/2	2.2/3
Voltage	v	380v 50hz/ 220v 60hz/ 415v 60hz/ customized
Strand wire diameter	mm	1.5-3.0	2.0-3.0	1.6-2.8
Barb wire diameter	mm	1.6-2.8	1.6-2.8	1.6-2.8
Barb pitch	inch	3/4/5/6	3/4/5/6	3/4/5/6
Twisted number	/	3-5	3	7
Main drive shaft speed	r/min	402	355	355
Raw material	/	Galvanized steel wire/PVC coated wire/black wire etc.
Producing speed	/	20 meters/minute	17 meters/minute	17 meters/minute

ATTENTION:OEM service can be acceptable!

Free Accessories

Packaging & Shipping

Company Information

FAQ

Q:Where is your factory located?

A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.

Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.

Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.

Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.

Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
