TX68 Cylinder Boring Machine Horizontal Boring Machine

Product details
Place of Origin:Shandong China;CNC or Not:Normal;
Packaging Detail:Machine Model: TX68 Cylinder Boring Machine/Horizontal Boring Machine Type of package: Plywood case Packaging size: 270x160x 210CM(one set in one case) N.W./G.W.: 5000KGS;Supply Ability:100 Set/Sets per Month TX68 Cylinder Boring Machine/Horizontal Boring Machine;
After-sales Service Provided:Engineers available to service machinery overseas;After-sales Service Provided:Online support,Video technical support;
Spindle bore:85mm;Voltage:Customer's Requirement;
Certification:ISO CE;Type:Horizontal;
Working table size (L*W):800x700mm;Condition:New;
Port:Any port in China;Weight:5000kg;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance;Production Capacity:High;
Warranty:1 year;Motor Power (kw):7.5;
Dimension(L*W*H):270x160x 210CM;Brand Name:LUZHONG MACHINE;
Applicable Industries:Manufacturing Plant;Key Selling Points:Competitive Price;

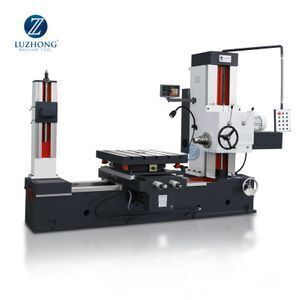

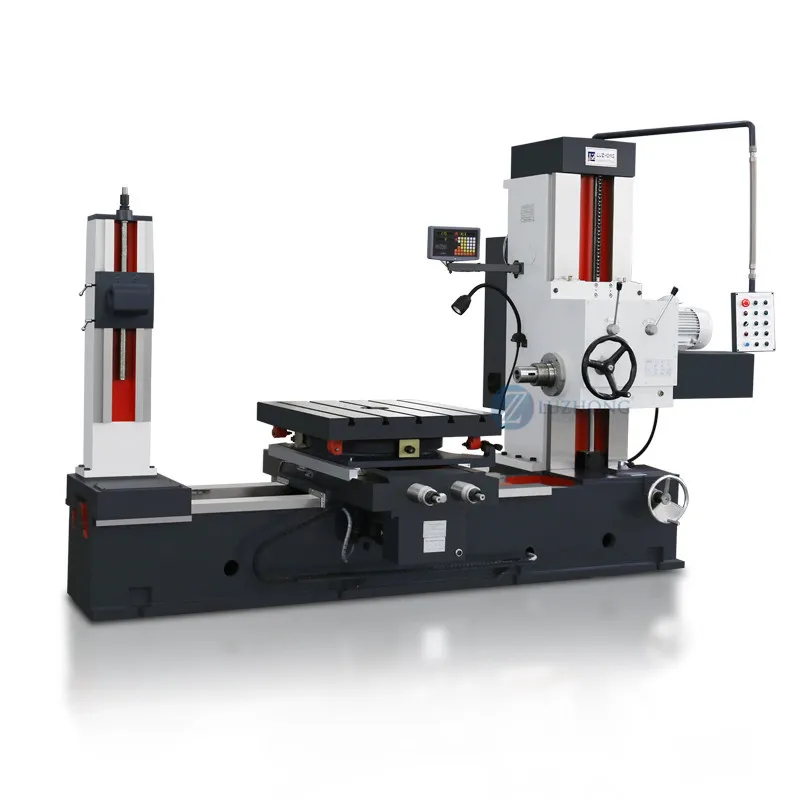

TX68 Cylinder Boring Machine/Horizontal Boring Machine

Product Description

Product main features:

1.The appearance of beautiful and generous overall layout coordination

2.Fuselage, vertical column, sliding seat are all rectangular guide, good stability

3.Guide rail to take automatic quenching, high wear resistance

4.Gigital synchronous display, intuitive and accurate, can improve the efficiency of low cost

Product application:

1. This machine is suitable for machining the parts of single piece or small batch production in the machine shop.

2. Drilling, boring and hinge hole can be carried out on the machine tool.



Product main technical specification:

Specifications

Units

TX68

Spindle bore

mm

85

Spindle taper



Morse 5#

Spindle speed

r/min

(9steps)25-530

Worktable feed speed (Longitudinal)

Mm/min

5-160

worktable feed speed (Horizontal)

Mm/min

5-160

Worktable rapid move speed

Mm/min

2000

Spindle lift speed

Mm/min

400/50

Working table size (L*W)

mm

930x840

Longitudinal travel of worktable

mm

1400 (Without Tailstock)

Horizontal travel of worktable

mm

750

Spindle box travel

mm

650

Axial travel of spindle

mm

300

Overall dimensions

mm

2700×1600× 2100

Max. load of worktable

T

2.5

N.W

kg

5000

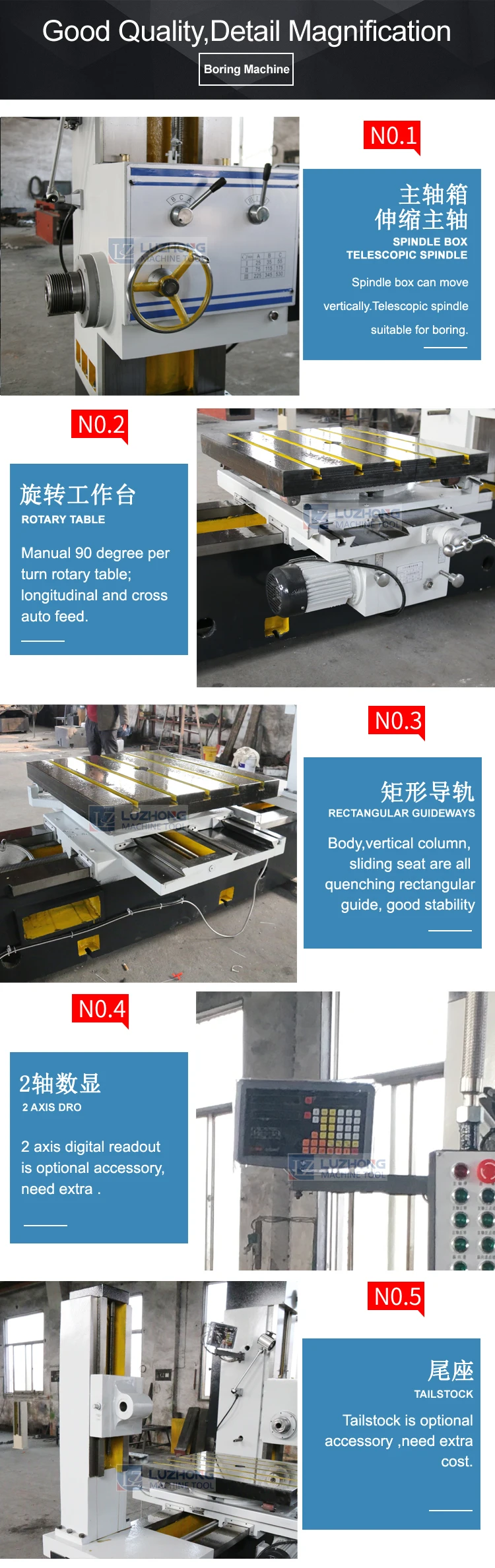

Details Display



Company Information

Shandong Luzhong Machine Tool Co., Ltd. is a large scale manufacturing

enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.



Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .



FAQ



1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .


2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .



3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.



4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.



5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .



5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
