Holykell OEM DN32-DN1000mm China Wall Mounted Ultrasonic Water Flowmeter Price,Ultrasonic Flow Meter

Product details
Application:For Water, Oil, Alcohol, Acids Liquid;Place of Origin:Hunan China;
Port:shenzhen;Power Supply:Ni-H batteries, 100V-240VAC for the charger;
Housing Material:ABS;Accuracy:±1% of reading at rates>0.2 mps;
Brand Name:holykell--ultrasonic flow meter;Supply Ability:5000 Piece/Pieces per Month Ultrasonic Flow Meter;
Velocity:±32 m/s;Communication Interface:RS-232,;
Pipe Size:15mm-6000mm measuring;Payment Terms:L/C,T/T,Western Union,Paypal;
Keywords:protable ultrasonic flowmeter;Data Logger:Built-in data logger can store over 2000 lines of data;
Model Number:HUF2000-H ,UNF2000-SW;Packaging Detail:standard export packaging Holykell OEM DN32-DN1000mm China Wall Mounted Ultrasonic Water Flowmeter Price,Ultrasonic Flow Meter;
Display:4x8 Chinese characters;





Holykell DN32-DN1000mm China Wall Mounted Ultrasonic Water Flowmeter Price,Ultrasonic Flow Meter


Why Choose and trust HOLYKELL Ultrasonic Flow Meter?

You benefits from:

Factory experience:

More than 17 years of experience in Level sensor industry.
large stock:

within 24 hours delivery for standard specifications.
Supply ability:

At least 50000 pcs per Month.
Supply area:

All over the world, about 109 countries (Most of them are from North America, Europe, Australia,Asia and Africa)

Certificate:

CE, RoHS, ATEX audited by TUV Rheinland and ECM

OEM/ODM :  Accept.



You Credit Guarantee:

Holykell is the leading seller in this line on Alibaba trade assurance!---You can search and prove that on alibaba.



  • Trade Assurance: 558 Transactions, total amount is above $ USD 384,000+ (2019.02.01)
  • Near 50% buyers found water level sensor and contact us, Holykell in ALIBABA
  • View Holykell 6000+, Send inquiry 300+, Quote 400+ (half of 2017 years)

Introduction of Ultrasonic flow meters

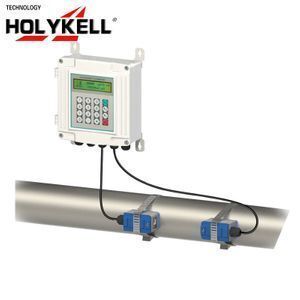

UF2000SW ultrasonic flow meter is designed to be installed in a fixed location for long-term flow measurement.



Ultrasonic flow meter is designed to measure the fluid velocity of liquid within a closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non-fouling operation and easy installation.

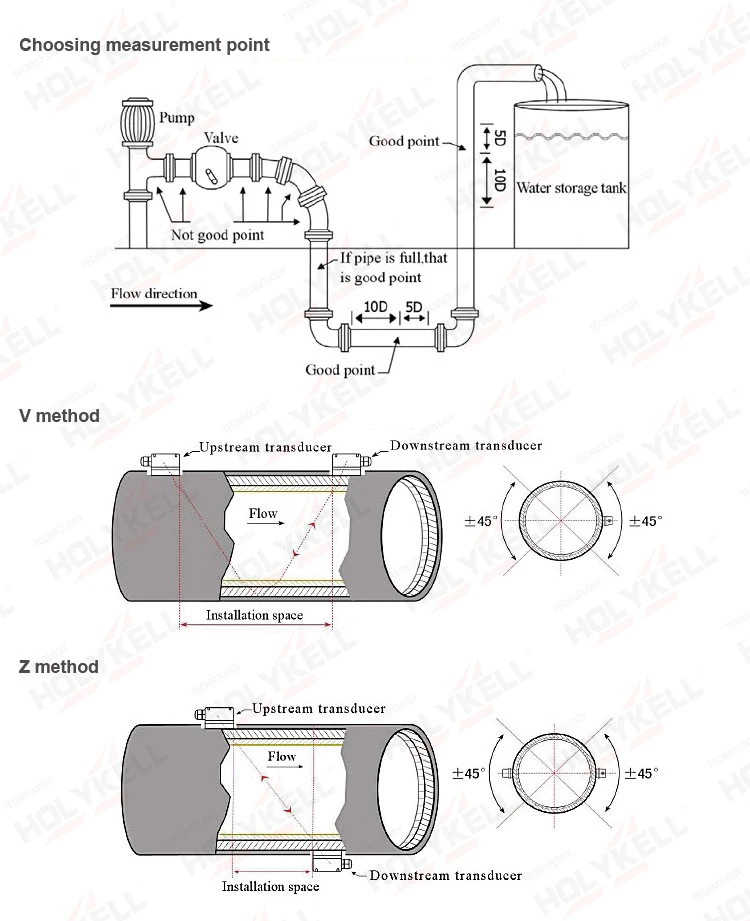

Transit-time flow meter utilizes two transducers that function as both ultrasonic transmitters and receivers. The transducers are clamped on the outside of a closed pipe at a specific distance from each other. The transducers can be mounted in V-method where the sound transverses the pipe twice, or W-method where the sound transverses the pipe four times, or in Z-method where the transducers are mounted on opposite sides of the pipe and the sound crosses the pipe once. This selection of the mounting method depends on pipe and liquid characteristics. The flow meter operates by alternately transmitting and receiving a frequency modulated burst of sound energy between the two transducers and measuring the transit time that it takes for sound to travel between the two transducers. The difference in the transit time measured is directly and exactly related to the velocity of the liquid in the pipe.

Specs of Ultrasonic flow meter

Products name

Ultrasonic flow meter

Main unit

Accuracy

Better than ±1%

Repeatability

Better than 0.2%

Principle

Transit-time measuring principle

Measurement

Period

500ms

Display

LCD with backlight, display accumulated flow/heat, instantaneous flow/heat, velocity, time etc.

Output

Analogue output: 4-20mA or 0-20mA current output. Impedance 0∼1kW. Accuracy 0.1%.

OCT output: Frequency signal (1~9999HZ)

Relay output: over 20 source signal (no signal, reverse flow etc.)

RS485 serial port





Input

Three analogue input

Three-wire PT100 resistor input (optional)

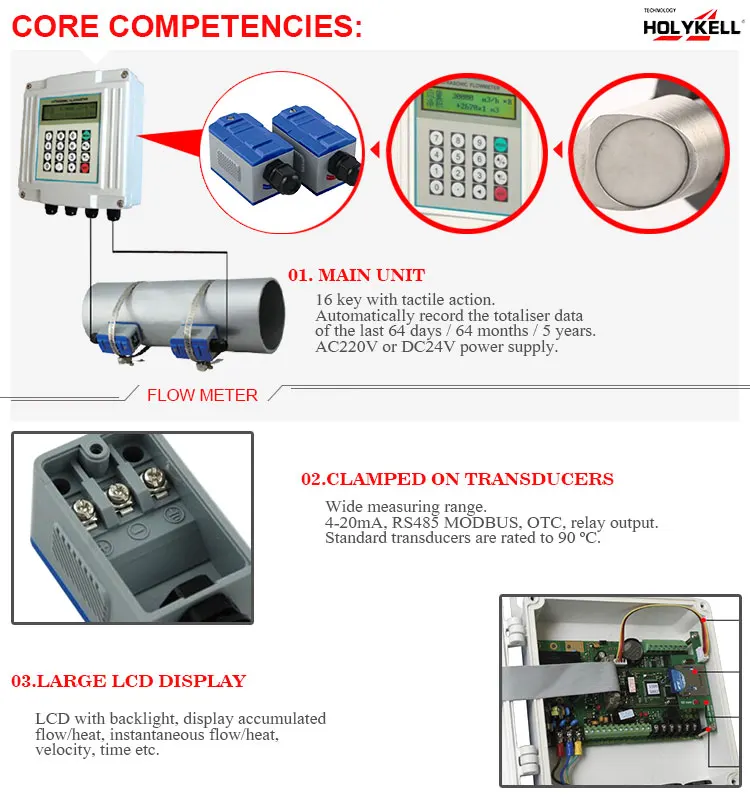

Other functions

Automatically record the totaliser data of the last 64 days / 64 months / 5 years;

The power-on time and corresponding flow rate of the last 64 power on and off events. Allow manual or automatic flow loss compensation

The instrument working status of the last 64 days

pipe

material

Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed

Size

15-6000mm

Straight pipe section

In the upstream it must be beyond 10D, in the downstream it must be beyond 5D, in the upstream the length must be beyond 30D from the access of the pump. (D stands for pipe diameter)

Liquid

Types

Water, sea water, industrial sewage, acid & alkali liquid, alcohol, beer, all kinds of oils which can transmit ultrasonic single uniform liquid

Temperature

Standard: -30C - 90C ,High-temperature:-30C - 160C

Turbidity

Less than 10000ppm, with a little bubble



Flow Direction

Bi-directional measuring, net flow/heat measuring

Environment

Temperature

Main Unit: -30C - 80C

Transducer: -40C -110C, Temperature transducer: select on enquiry

Humidity

Main Unit: 85% RH

Transducer: water-immersible, water depth less than 3m

Cable

Twisted Pair Line, standard length of 20m, can be extended to 500m (not recommended); Contact the manufacturer for longer cable requirement.

RS-485 interface, transmission distance up to 1000m

Power Supply

AC220V or DC24V

Power Consumption

Less than 1.5W

Protocols

MODBUS, M-BUS, Fuji extended protocol and other factory protocol

Applications of Ultrasonic water flow meters

The wall-mounting flow meter can be applied to a wide range of pipe flow measurements. Applicable liquids include pure liquids as well as liquid with small quantity of tiny particles.

Examples are:

  •  Water (hot water, chilled water, city water, sea water, waste water, etc.);
  •  Sewage with small particle content;
  •  Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.);
  •  Chemicals (alcohol, acids, etc.);
  •  Plant effluent;
  •  Beverage, liquid food;
  •  Ultra-pure liquids;
  •  Solvents and other liquids
