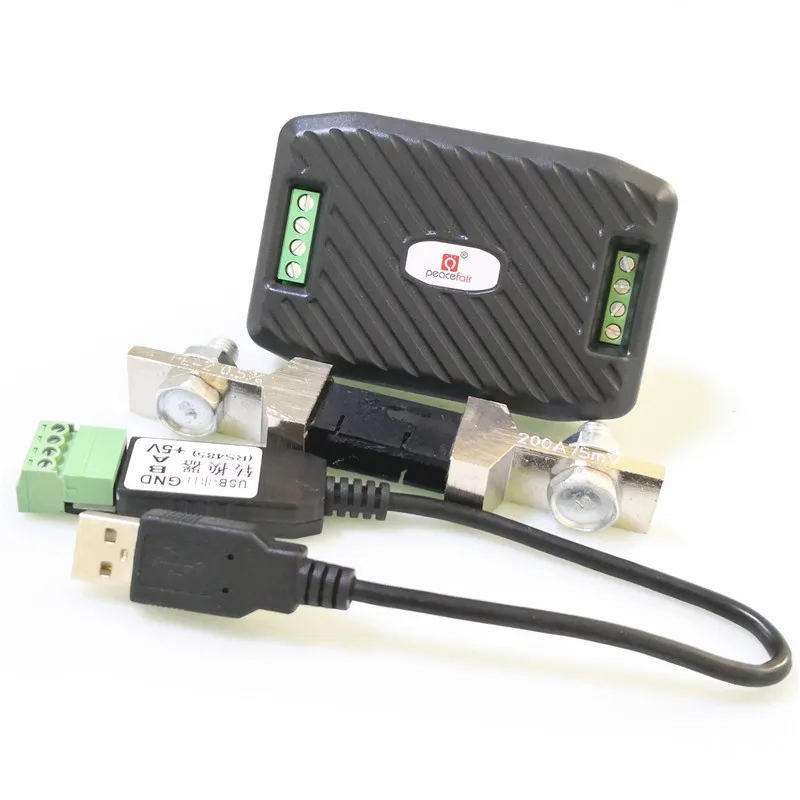

PEZM-017 0-300V DC Digital Current Voltage Meter Electric Energy Meter RS485 Modbus With 200A shunt And USB Cable

Supplier: Ningbo Peacefair Electronic Technology Co., Ltd.
Region: Zhejiang, China
Price: $10.50 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Operating Temperature:	-20'C ~ +60'C;	Voltage test range:	0.05-300V;
Package Type:	The size of the inner carton:14114cm The size of outside carton:463838cm(100pcs/one carton);	Voltage resolution:	0.01V;
Single package size:	14X11X4 cm;	Brand Name:	Peacefair;
Power resolution:	0.1W;	Energy test range:	0-9999kwh;
Certificate:	CE FCC;	Selling Units:	Single item;
Place of Origin:	Zhejiang China;	Power test range:	0.1-3kW;
Dimensions:	9060.523mm(LWH);	Measuring Range:	0.05-300V;
Single gross weight:	0.24 KG;	Communication:	RS485 Port MODBUS-RTU Protocol;
Current resolution:	0.01A;	Display Type:	Digital Only;
Model Number:	PZEM-017;	Energy resolution:	1wh;
Accuracy Class:	1.0grade;	Accessory:	200A shunt+USB cable;

PEZM-017 0-300V DC Digital Current Voltage Meter Electric Energy Meter RS485 Modbus With 200A shunt And USB Cable

Product Type	PZEM-017 DC communication module with RS485 interface
Function	This document describes the specification of the PZEM-003/017 DC communication module, the module is mainly used for measuring DC voltage, current, active power, frequency and energy consumption, the module is without display function, the data is read through the RS485 interface.
Function
Test Parameters Range	1. Voltage: 0.05-300V. (when the test voltage is <7V, please use the independent power supply mode).
	Resolution:0.01V
	2. Current: 0.02-300A(can be matched with 50,100,200,300A four kinds of shunt)
	Resolution:0.01A
	3. Power: 0.2-90kW
	Resolution: 0.1W
	4. Energy Consumption: 0-9999kWh
	Resolution: 1Wh
Over Voltage alarm	Voltage threshold can be set, divide into high voltage and low voltage threshold, when the measured voltage exceeds the threshold, it can alarm The default high voltage threshold is 300V, the default low voltage threshold is 7V.
Accuracy	1.0grade
Current resolution	0.01A
Power resolution	0.1W
Product Size	9060.523mm
Unit Weight	221g(PZEM-017 Module+200A shunt+USB cable)
package	Carton
Other instructions	1. RS485 interface is passive output, need external connect 5V power supply and the the external power supply should >100mA.
Other instructions	2. When the input test voltage is less than 7V, it must supply 5V independent work voltage through MICRO USB port
Note:	Do not use the USB port bring by your PC to be the independent power supply, otherwise it may damage your PC !
The soft ware and user manual	Link: https://pan.baidu.com/s/1V9bDWj3RK2u6_fbBJ3GtqQ Password: rq37
