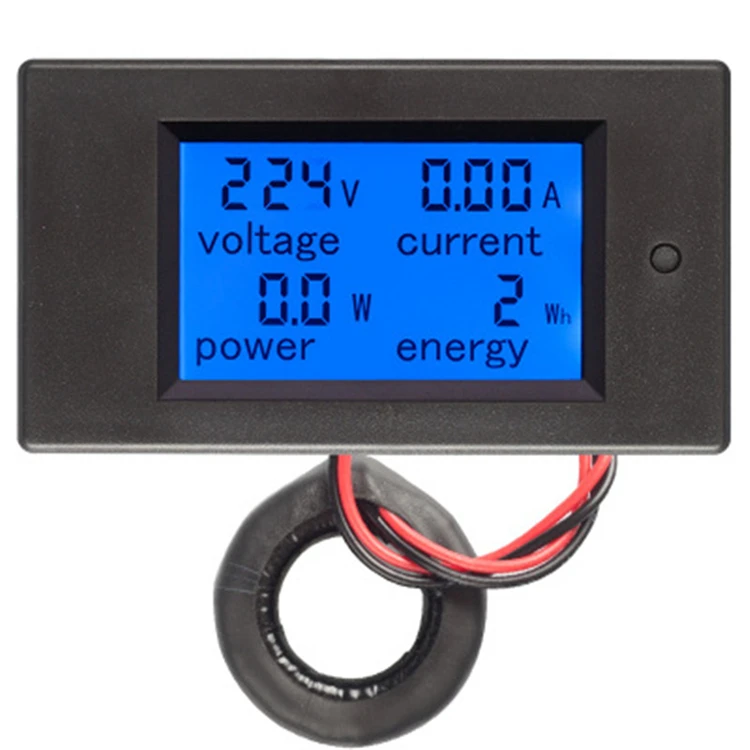

PZEM-061 AC Single Phase 80-260V 100A Voltage Current Watt Energy Electric Digital Power Meter

Product details
Display:LCD;Accuracy Class:1.0;
Phase:Single phase;Power Supply:80-260V AC;
Weight:105g;Power:0-22kw;
Name:Digital Power Meter;Model Number:PZEM-061;
Place of Origin:Zhejiang China;Single gross weight:0.13 KG;
Certificate:CE FCC;Accessory:Coil CT;
Selling Units:Single item;Package Type:The size of the inner carton:11*8*4cm The size of outside carton:46*38*38cm(200pcs/one carton);
backlight color:blue;Single package size:11X8X4 cm;
Measuring Current Range:0-100A;Brand Name:Peacefair;
Dimensions:89.6*49.6*24.4mm(L*W*H);Measuring Voltage Range:80-260V;
Operating Temperature:-10-60degree;Frequence:45~65Hz;


PZEM-061 AC Single Phase 80-260V 100A Voltage Current Watt Energy Electric Digital Power Meter

Product Type

PZEM-061     AC Single Phase electric Meter

Function

1. Electrical parameter measurement function (voltage, current, active power, energy)

2. Overload alarm function (over power alarm threshold, backlight and power flashing to alarm).

3. Power alarm threshold preset function (can set power alarm threshold).

4. The reset function of energy key.

5. Store data when power off.

6. Large-screen LCD (display voltage, current, active power, energy at the same time)

7. Backlight function.

Test Parameters Range

1. Voltage:  80~260V

2.  Current:  0~100A

3.  Power: 0~22000W

4.  Energy:  0~9999kWh

Accuracy

1.0 grade

refresh rate

1S

Display Size

51*30mm

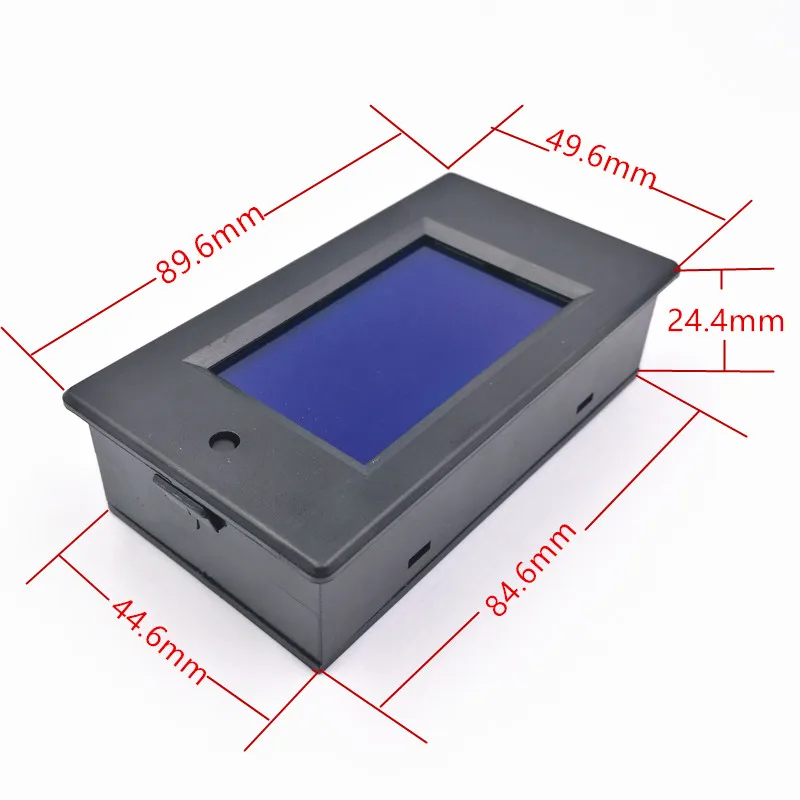

Product Size

89.6*49.6*24.4mm

Unit Weight

105g(with coil CT)

package

Carton

Precautions

1. This module is suitable for indoor, please do not use outdoor.

2. Applied load should not exceed the rated power.

3. Wiring order can’t be wrong.

Note

It can't be used in the circuit which has much  interference such as inverter,silicon controlled.otherwise will be easily to damage the meter
