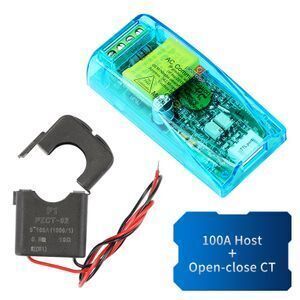

Peacefair PZEM-004T New Version 80-260V 100A TTL Modbus RTU Volt Amp Power Factor Frequency AC Ammeter Electrical Energy Meter

This document describes the specification of the PZEM-004T AC communication module, the module is mainly used for measuring AC voltage, current, active power, frequency, power factor and active energy, the module is without display function, the data is read through the TTL interface.

Very Important Notification:

For this product PZEM-004T, we have the update version to replace the old version. The old version has been sold out and no produce anymore. The update information as following:

1. the new version has the same size and TTL port as before

2. the software is new, we have English software as same as the PZEM-014,016, The communication protocol change to be Modbus–RTU, the display interface is changed. now it can test Voltage ,Current, Power, Power factor, Frequency and Energy 6 parameters.

3. the new version has higher precision, faster refresh speed and the more stability communication than the old version.

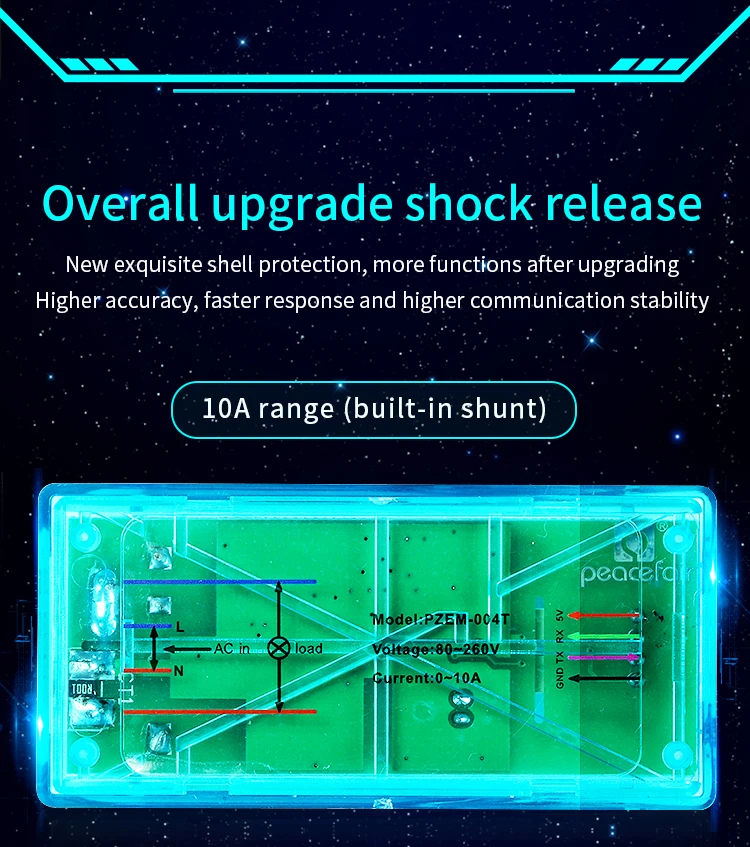

4. The new version increase a set for 0-10A

If there is any question, welcome to contact the service to get more information.

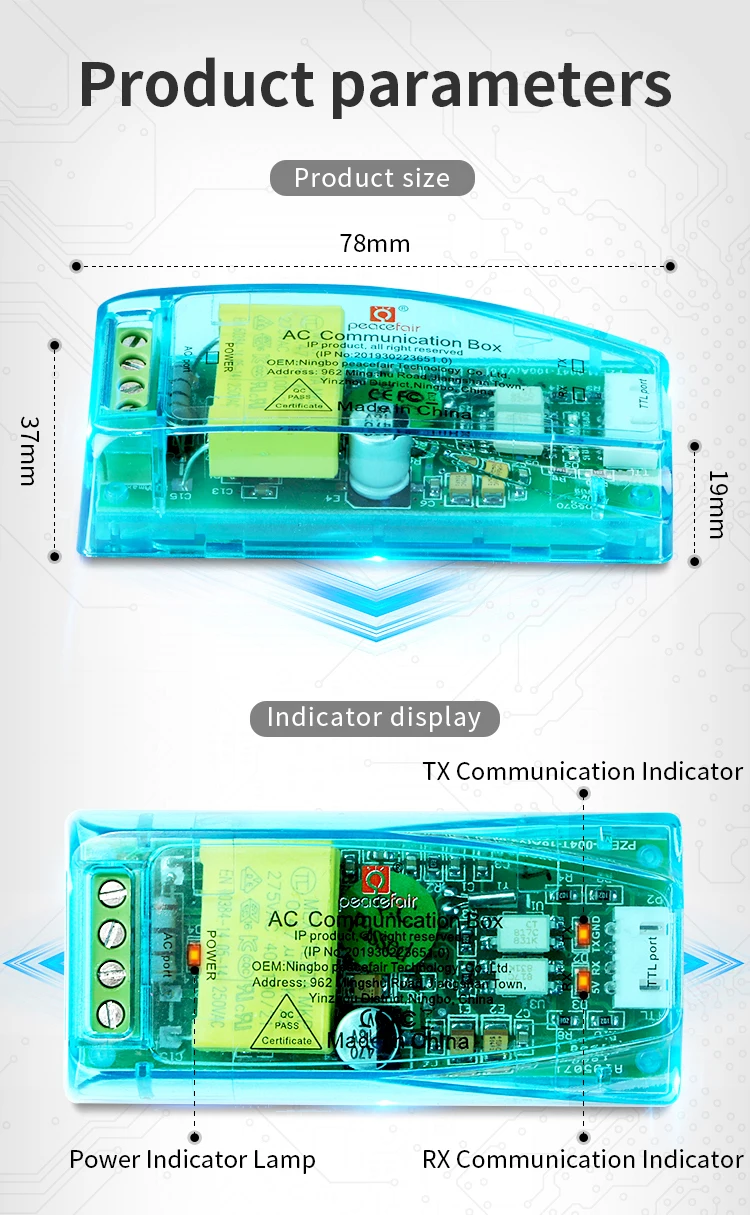

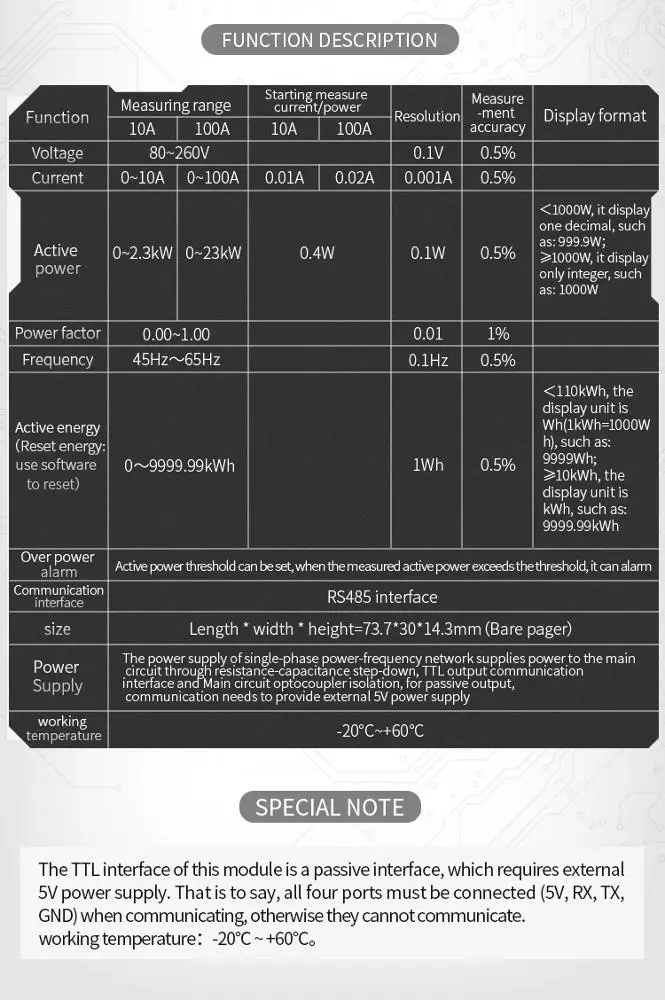

1.Function description

1.1   Voltage

1.1.1        Measuring range:80~260V

1.1.2        Resolution: 0.1V

1.1.3        Measurement accuracy: 0.5%

1.2   Current

1.2.1        Measuring range: 0~10A(PZEM-004T-10A); 0~100A(PZEM-004T-100A)

1.2.2        Starting measure current: 0.01A(PZEM-004T-10A); 0.02A(PZEM-004T-100A)

1.2.3        Resolution: 0.001A

1.2.4        Measurement accuracy: 0.5%

1.3   Active power

1.3.1        Measuring range: 0~2.3kW(PZEM-004T-10A); 0~23kW(PZEM-004T-100A)

1.3.2        Starting measure power: 0.4W

1.3.3        Resolution: 0.1W

1.3.4        Display format:

<1000W, it display one decimal, such as: 999.9W

≥1000W, it display only integer, such as: 1000W

1.3.5        Measurement accuracy: 0.5%

1.4   Power factor

1.4.1        Measuring range: 0.00~1.00

1.4.2        Resolution: 0.01

1.4.3        Measurement accuracy: 1%

1.5   Frequency

1.5.1        Measuring range: 45Hz~65Hz

1.5.2        Resolution: 0.1Hz

1.5.3        Measurement accuracy: 0.5%

1.6   Active energy

1.6.1        Measuring range: 0~9999.99kWh

1.6.2        Resolution: 1Wh

1.6.3        Measurement accuracy: 0.5%

1.6.4        Display format:

<10kWh, the display unit is Wh(1kWh=1000Wh), such as: 9999Wh

≥10kWh, the display unit is kWh, such as: 9999.99kWh

1.6.5        Reset energy: use software to reset.

1.7   Over power alarm

Active power threshold can be set, when the measured active power exceeds the threshold, it can alarm

1.8   Communication interface

RS485 interface.

2   Communication protocol

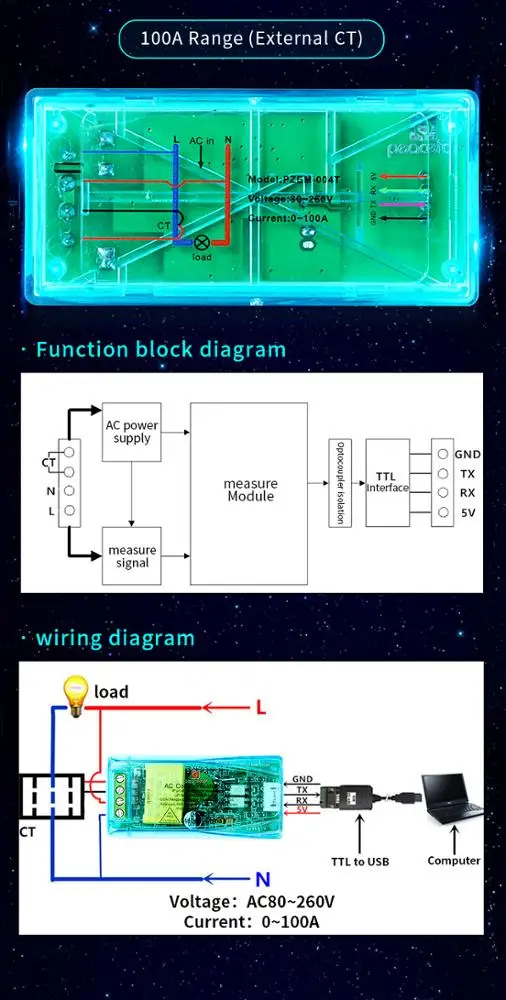

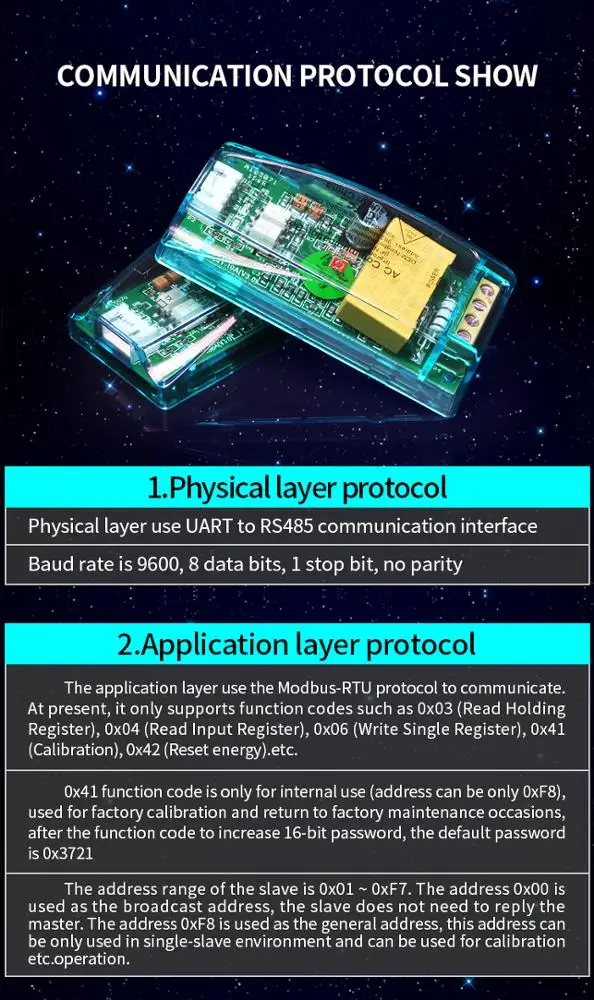

2.1   Physical layer protocol

Physical layer use UART to RS485 communication interface

Baud rate is 9600, 8 data bits, 1 stop bit, no parity
