2018 New AC RS485 Modbus Volt Amp Watt Kwh Frequency Power factor Electronic Power Meter with Open CT

Supplier: Ningbo Peacefair Electronic Technology Co., Ltd.
Region: Zhejiang, China
Price: $7.65 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

power factor:	0-1.0;	voltage range:	80-260V;
Measuring Energy Range:	0-9999.99kwh;	communication:	RS485 serial;
current range:	0-100A;	Output Voltage:	220V;
Selling Units:	Single item;	Brand Name:	PEACEFAIR;
Display Type:	Digital Only;	Operating Temperature:	-20-60;
Weight:	147g;	Frequency:	45-65Hz;
Package Type:	The size of the inner carton:11104cm The size of outside carton:463838cm(100pcs/one carton);	Single gross weight:	0.17 KG;
Place of Origin:	Zhejiang China;	Dimensions:	9060.523mm;
Single package size:	13X10X4 cm;	CT:	Split CT;
Type:	Modbus Power Meter;	Accuracy Class:	0.5;
Phase:	Single Phase;	Model Number:	PZEM-016;
power range:	0-23kw;	Certificate:	CE FCC;

2018 New AC RS485 Modbus Volt Amp Watt Kwh Frequency Power factor Electronic Power Meter with Open CT

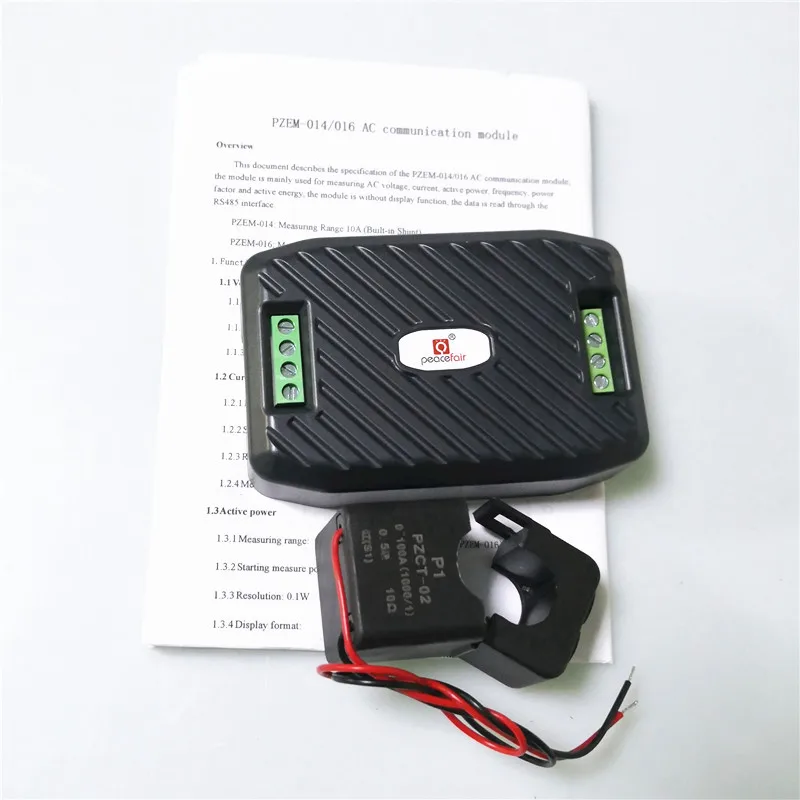

This document describes the specification of the PZEM-014/016 AC communication module, the module is mainly used for measuring AC voltage, current, active power, frequency, power factor and active energy, the module is without display function, the data is read through the RS485 interface

The PZEM-014 doesn't need the CT

The PZEM-016 must use with the CT, it can match with coil CT or split CT.

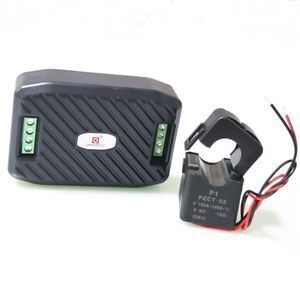

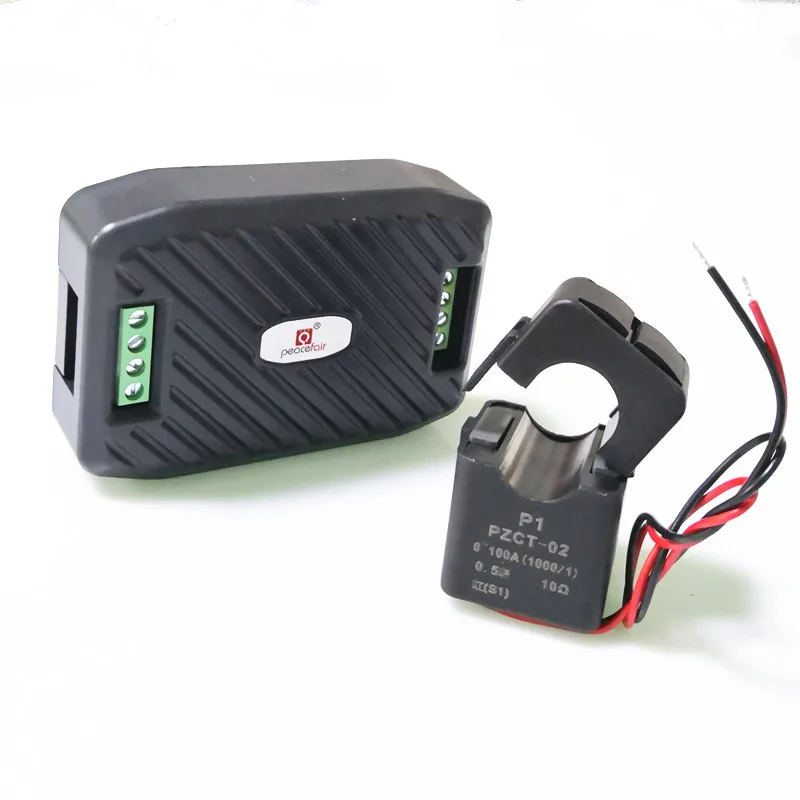

Package: one module +one Split CT

Please click this link to download the software, specification and more details about it.

Link: https://pan.baidu.com/s/1B0MdMgURyjtO1oQa2lavKw

Password: ytkv

Product Type	PZEM-016
Accuracy	0.5grade
Test Range	1. Voltage: 80~260V, resolution:0.1V,accuracy: 0.5% 2. Current: 0~100A , resolution:0.001A,Starting measure current: 0.02A,accuracy: 0.5% 3. Power: 0~23kW,resolution:0.1W,Starting measure power: 0.4W,accuracy: 0.5% 4. Power factor:0.00-1.00, resolution:0.01, accuracy: 1% 5. Frequency:45-65HZ, resolution:0.1HZ,accuracy: 0.5% 4. Energy: 0~9999.99kWh,resolution:1wh,accuracy: 0.5%,Reset energy: use software to reset
Current Range	100A
Function	1. Six electrical parameter measurement function (voltage, current, active power, power factor, frequency,energy) 2. Over power alarm (Active power threshold can be set, when the measured active power exceeds the threshold, it can alarm). 3. Communication interface RS485 interface. 4. Reset energy: use software to reset
