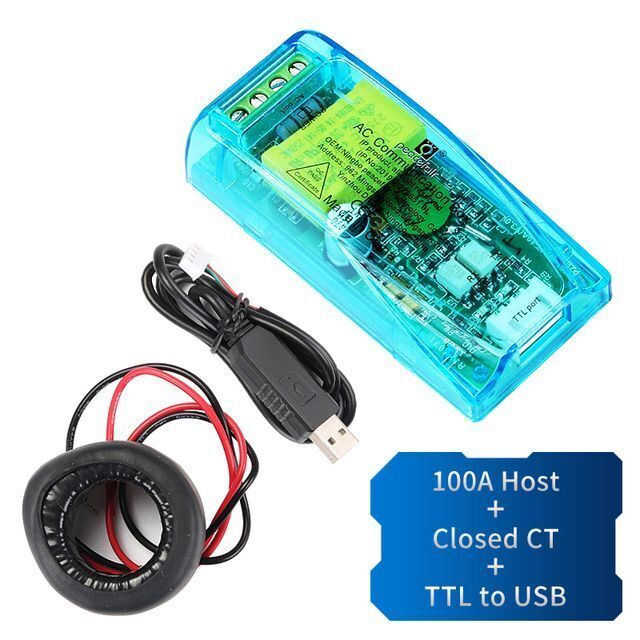

Peacefair PZEM-004T 3.0 Coil CT USB Cable 220V TTL Modbus AC Voltmeter Ammeter Smart Electric Watt Meter
-
Supplier: Ningbo Peacefair Electronic Technology Co., Ltd. -
Region: Zhejiang, China -
Price: $7.80 / 1 - 19 units
$7.30 / 20 - 49 units
$6.80 / 50 - 499 units
$6.00 / >=500 units -
Min. Order: 1 unit
Product details
| Type: | Single Phase Digital Energy Meter; | unit weight: | 109g; |
| Packaging Detail: | carton; | Measuring Current Range: | 0-100A; |
| Place of Origin: | Zhejiang, China; | Single gross weight: | 0.150 KG; |
| Certificate: | CE FCC; | Current test range: | 0-100A; |
| Energy test range: | 0-9999.99kwh; | Dimensions: | 78*37mm; |
| Single package size: | 13X10X6 cm; | Name: | Multifunction Power Meter; |
| Communication: | TTL; | Brand Name: | Peacefair; |
| Model Number: | PZEM-004T; | Operating Temperature: | -10-60degree; |
| Power Range: | 0-23kw; | Voltage test range: | 80-260V; |
| Accuracy Class: | 1.0grade; | accessory: | coil CT+USB cable; |
| Selling Units: | Single item; | Measuring Voltage Range: | 80-260V; |
Product Description
Peacefair PZEM-004T 3.0 Coil CT USB Cable 220V TTL Modbus AC Voltmeter Ammeter Smart Electric Watt Meter
Product Type | PZEM-004T 3.0v |
Function | This module is mainly used for measuring AC voltage, current, active power, frequency, power factor and active energy,without display, the data is read through the TTL interface. |
Voltage Range | AC 80-260V |
Current Range | 0-100A(with coil CT+USB cable) |
Active Power | 0-23KW |
Energy Range | Energy Range |
Power Factor | 0.00～1.00 |
Frequency | 45Hz～65Hz |
Weight | 109g |
Communication Port | TTL interface |
Physical layer protocol | Baud rate is 9600, 8 data bits, 1 stop bit, no parity |
Related Products
Company Introduction
Ningbo Peacefair Electronic Technology Co., Ltd. is founded in 2 0 1 4. The area of the factory is 1800square meters, has two assembly line. We are a professional manufacturer engaged in the research, development, production, sale and service of AC and DC Electric digital power meter, Voltage meter and Energy meter. Our products have the patent and C E, F C C certificates.
