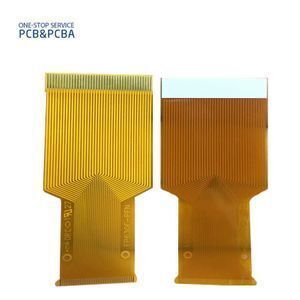

FPC Cable for Asus Eeeslate ep121 Thermal Cable Fpc r1.2g %2 0.5mm Pitch FPC Connector

Product details
Port:shenzhen;Surface Finishing:Enig;
Board Thickness:0.2-0.3 Mm;Min. Line Width:5/5mil;
Place of Origin:Guangdong China;Payment Terms:L/C,T/T,Western Union;
Min. Hole Size:0.2mm/0.3mm;Brand Name:OEM Service;
Application:for Asus Eeeslate ep121 Thermal Cable Fpc r1.2g %2;Type:oem;
Min. Line Spacing:6mil;Base Material:Polyimide;
Material:flexible printed circuit;Packaging Detail:Packed by self sealing plastic bag or Vacumn packing with desiccant, cartons for air outside for express.;
Stack Up:Double-sided FPC;Copper Thickness:1oz;
Item:Custom made FPC Cable;Model Number:FPC-014;
Supply Ability:10000 Piece/Pieces per Day;

FPC Cable for Asus Eeeslate ep121 Thermal Cable Fpc r1.2g %2 0.5mm Pitch FPC Connector



Product Description





The stack up of the flex is as following:







Our Manufacture Capacity



Item

Mass Production

Sample

Main Material Brand

DuPont Kapton, TaiFlex, AEM, 3M, Taiyo, Henkel, Rongda, Life Bond, Conductive Compound

Min Line Width

0.07mm

0.05mm

Min Line Space

0.07mm

0.05mm

Min Drilling Diameter

φ 0.15mm

φ 0.1mm

Drilling Tolerance

+/- 0.1mm

+/-0.05mm

Max Panel Size

250mm X 340mm

550mm X 630mm

Impedance Control Tolerance

+/- 10%

 Layers

1-12 layers, flexible or rigid-flexibe PCB





Max Drilling Aspect Ratio

5:1 (min hole diameter 0.1mm)

12:1 (min hole diameter 0.2mm)

16:1 (min hole diameter 0.3mm)

Production Per Month

20,000 m²



Production Lead time



Item

Sample

Mass Production

Single-Layer

2-4 days

6-7 days

Double-sided

3-5  days

7-9 days

Multi/Seperated Layer Boards

4-6 days

8-10 days

Ridig- Flexible

5-8 days

10-12 days

*working days

Buying Guides

Our Services

Company Information

Thanks for visiting Wonstron Electronics Co., Ltd!

We were founded a team with more than 20 years in the field. We own abundant experiences for serving overseas customers from industrial automatic control, communication, medical, Auto and consumer electronics,etc. We test our product strictly to guarantee the quality to our customers. We accumulate high reputation during our cooperation.You will achieve following value-added services when you cooperate with us:

  1.  One-stop PCB/PCBA Service

  2.  Optimizing your PCB design during production

  3.  Satisfied quality with competitive prices

  4.  Instant response in both quotation and delivery

  5.  Increase your business with our powerful support

Our Test Equipment


Our workshop

Packaging & Shipping
 We  can offer DDU express by DHL, Fedex, TNT UPS or by air and by sea for big quantity. We have our own forwarder who can offer competitive prices to save your logistic cost.

Packaging

Shipping
