Truck Top Loading Arms Factory Price

Product details
Quantity of swivel joint:4 Pieces;Color:Customer Request;
Port:Shanghai, Guangzhou, Shenzhen,Changsha;Material:carbon steel, stainless steel;
Packaging Detail:1. Outside package: wooden case, palywood case, iron case 2. Inner package: loading arms are wrapped with woven belt;After-sales Service Provided:Field installation, commissioning and training;
Weight:Variable;Dimension(L*W*H):Customized;
Place of Origin:China;Warranty:1 year;
Brand Name:CPEPT;After-sales Service Provided:Engineers available to service machinery overseas;
Application:Chemical Industrial, Refined oil products, Aviation Kerosene;Applicable Industries:Building Material Shops,Manufacturing Plant,Construction works ,Energy & Mining,chemical;
Transmission Length:1 km;Supply Ability:3000 Set/Sets per Year;
Transport medium:oil, LPG,asphalt,liquid acid and alkali, water, alcohol;Certification:ISO;
Type of Drive:Manual, Pneumatic;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,it is negotiable;
Function:fluid transfer, handling, loading;Condition:New;
Hoisting Height:1 m;

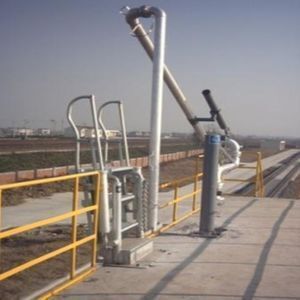

Truck Top Loading Arms



CPEPT is a professional manufacturer of loading equipment & system for liquid transfer in the petroleum and petrochemical industry.



CPEPT Loading Arms are available in many configurations and sizes. Whether you're transferring petroleum products, liquefied gases, asphalt, solvents or hazardous, corrosive chemicals from or to tank trucks and rail cars, CPEPT loading arms can meet all your needs and demands.







Model Instruction







Structure Drawing





 Design Parameters



Nominal Diameter

2"(DN50), 3"(DN80), 4"(DN100), 6"(DN150), 8"(DN200)

Design Pressure

0.6MPa-2.5Mpa

Design Temperature

-30 °C-+120 °C

Balancing Method

Compression spring cylinder

Material

Carbon steel, Stainless Steel304, SS316

Transfer Products

Crude oil, LPG, liquid acid and alkali, bitumen, diesel, aviation kerosene, chemicals, edible oil, liquor and water etc.





Structural Style of Loading Arms










Component Descriptions:

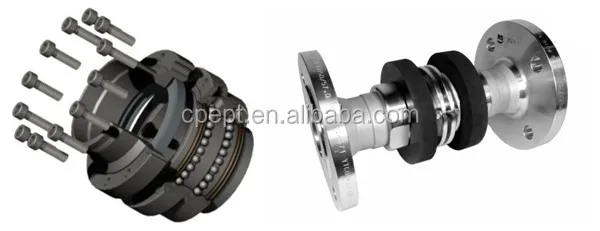

Swivel Joint:

  • The inner and outer tube is made of high-strenghth alloy steel, SS304 or SS316.
  • Each ball bearing is equiped with a straight hydraulic grease nippes and leak detection hole plug.
  • SS316L skeleton with RPTFE seal make it have good abrasion resistance, self-lubrication, abrasion self-compensation and long service life.

Inner Arm:

  • Standard material is carbon steel
  • Reach horizontal axis of 0~360°rotation without column

Outer Arm:

  • Standard material is carbon steel
  • Reach horizontal axis of 0~360°rotation, vertical axis of -30°~+60°rotation (it can be customized for special requirements)

Compression Spring Cylinder:

  • Made of carbon steel with galvanized treatment,
  • The spring cylinder in-built compression spring to balance the weight of primary arm and drop pipe,
  • Keep outer arm balance;
  • Adjust drop tube vertical position through changed amount of compression spring.







Benefits

  • Spring balanced for ease of use
  • Long service life without corrosion
  • Easy maintenance
  • Easily changed swivel joint product seal
  • Low cost of spares for a long economical life

Optional of Loading Arms

+

Column

Made of carbon steel.

Fix on the platform and use to support the loading arm

Improve the stress condition of swivel joint, so as to extend the service life of swivel joint.

Vapor Recovery System

Consists of airtight cover and vapor recovery pipe.

It is used for toxic, harmful and volatile products, to prevent the vapor emission and leakage.

Material of airtight cover contact with the product part can select NBR, Viton, and PTFE etc.

Vapor recovery pipe is metal hose in SS304, flanged connection. It also can be customized composite hose according to customer requirements.

Overfill Alarm:

When the liquid is filled over the safety liquid level, the sound & light alarm, and output switch signal, interlock control with control valve.

Electrostatic Alarm:

When bad grounding during loading, the sound & light alarm, and output switch signal, interlock control with control valve.

Heat Tracing

It is used for the product need heat tracing, such as bitumen, available in steam heat tracing and electric heat tracing.

Tefulong:

It is used for low concentration of sulfuric acid and corrosive product.

Stop Valve

It is used to cut off the loading pipe when loading is finished or any accident occurs on jobsite.

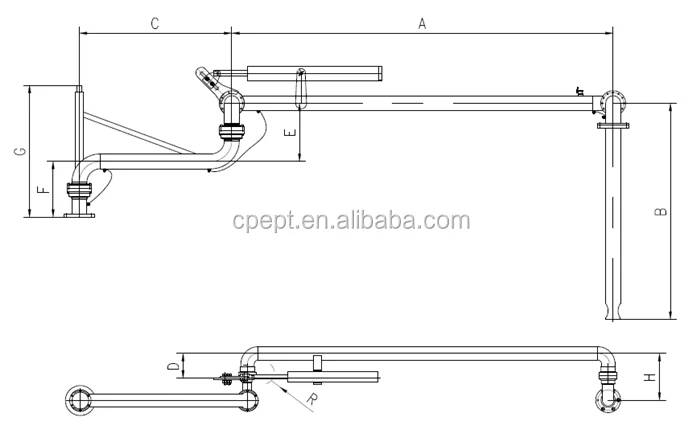

                                                           Standard Dimensions

Dimension

A

B

C

D

E

F

H

2”

2000

1700

800

150

290

290

290

3”

2000

1700

800

200

380

320

380

4”

2000

1700

800

230

440

360

440









  Arm dimensions and materials can be modified according to customer requirements.



Packaging & Shipping



Company Information

Hunan Changjiang Petrochemical Environmental Protection Technology Co., Ltd. (CPEPT) is a new high-tech manufacturing enterprise specialized in design, production, marketing, installation and service of petrochemical storage and transfer equipment & system.

CPEPT offers wide variety in products for the tank storage and fluid transfer in the petroleum and petrochemical industry. Our main products include:



Storage Tank Equipment

•      Internal Floating Roofs

•      Floating Roof Seals

•      Wax Scraper

•      Floating Suction Unit

•      Steam-water Separation Heater



Fluid Handling Equipment

•      Loading Arms

•      Folding Stairs

•      Skid mounted Loading Modules

CPEPT has been certified to ISO9001 Quality Management System, ISO14000 Environment Management System, OHSAS18001 Occupation Health Safety Management System and several national patents, and we has obtained several national patents.





Our Clients



With customers like SINOPEC, PETROCHINA, CNOOC, and China National Aviation Fuel, Sinochem Group, Energy China, Stolt, Vopak, Cargill, ChangChun Chemical, we have designed, manufactured and installed these products in Iraq, Iran, Syria, Ghana, Nigeria, Ireland, Singapore, New Zealand, Korea, Vietnam, Malaysia, Indonesia, Kazakhstan, Sudan and Yemen etc.
