Automatic pneumatic loading arms

Supplier: Hunan Changjiang Petrochemical Environmental Protection Technology Co., Ltd.
Region: Hunan, China
Contact: Ms. Ivy Tien
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Shanghai, Shenzhen, Guangzhou;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ,Energy & Mining,Chemical;
Transmission Length:	1;	Hoisting Height:	10;

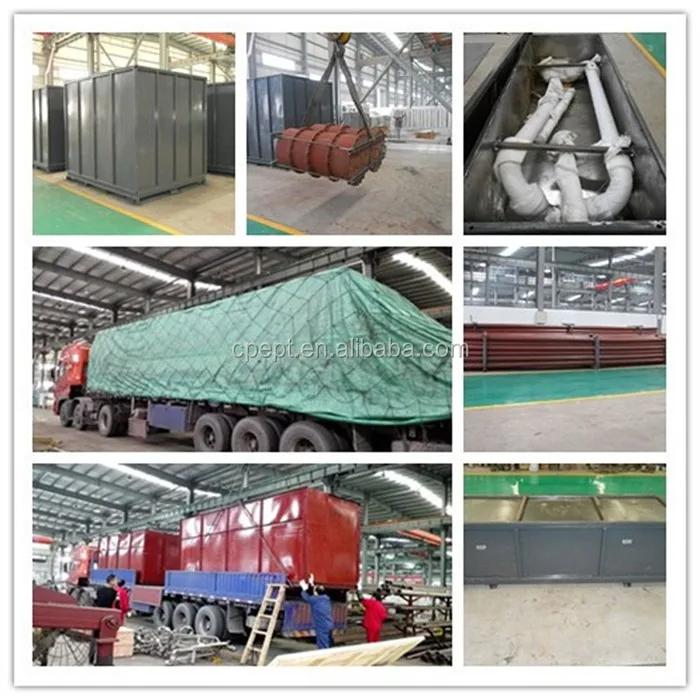

Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,it is negotiable;	Packaging Detail:	Wooden case;
After-sales Service Provided:	Field installation, commissioning and training;	Supply Ability:	5000 Set/Sets per Year;
Warranty:	1 YEAR;

Automatic pneumatic loading arms

Loading arms are used to transfer liquid or liquefied gas from one tank to another through an articulated pipe system consisting of rigid piping and swivel joints to obtain flexibility.

Transfer to or from a truck transported tank or rail transported tank requires a Top Loading Arm or a Bottom Loading Arm.

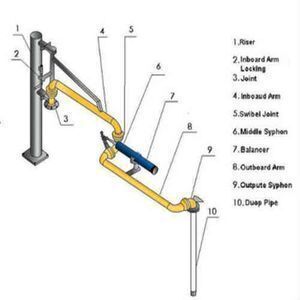

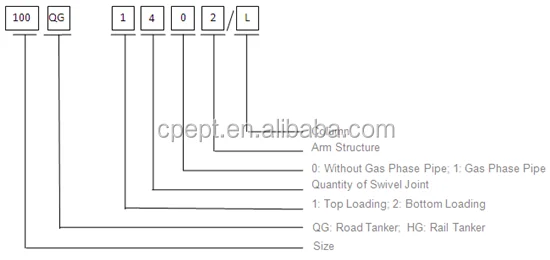

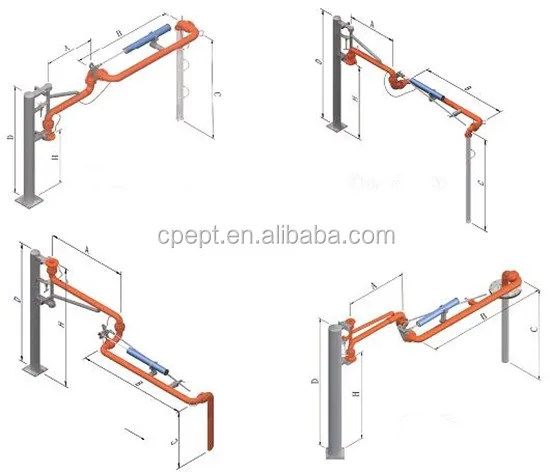

CPEPT 3Q202 series are automatic pneumatic top loading arms. This type of loading arms consists of inner arm, outer arm, drop pipe, swivel joints, pneumatic cylinder and lifting system of pneumatic motor. The size can be from DN50 to DN200. 2 sets of pneumatic cylinder respectively control inner arm and outer arm to move horizontally. Pneumatic motor control drop pipe to move downwards and upwards.

Design Features

Nominal Diameter	2"(DN50), 3"(DN80), 4"(DN100), 6"(DN150), 8"(DN200)
Design Pressure	0.6MPa-2.5Mpa
Design Temperature	-30 °C-+120 °C
Balancing method	pneumatic cylinder
Material	Carbon steel, Stainless steel
Type of Fluid	Crude oil, Refined oil products (petroleum, diesel, aviation kerosene, liquefied gas ect. ) and chemicals
