Dimension(L*W*H): | 3500*850*1700mm; | Voltage: | 380V/220V; |
Condition: | New; | Automatic Grade: | Automatic; |
Applicable Industries: | Manufacturing Plant; | After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support; |
Supply Ability: | 100 Unit/Units per Year mineral oil centrifuge for oil water and solid substances; | Certification: | CE, ISO; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,mineral oil centrifuge for oil water and solid substances; | Power(W): | 5.5kw; |
Port: | China; | Usage: | Suppository; |
Warranty: | 1 year; | Weight: | 2200kgs; |
Place of Origin: | China; | Material: | SS316L /304; |
Packaging Detail: | Exporting wooden case; | Control System: | PLC; |
Brand Name: | zonelink; | start way: | variable frequency starting; |

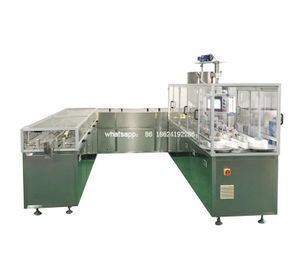

High-accuracy Pharmaceutical Automatic Suppository Filling Machine/suppository machine
1. Technique parameters:
Capacity | 18000-23000pcs/hour |
Chagred volume | 0.5-5ml |
Capacity of product tank | 50L |
Dosage allowed | <±2% |
Form | Bullet-head form, duck-mouth form and other special forms |
Capacity of the liquid barrel | 50L |
Voltage of power | Three phase AC380V |
Total power | 7.5kw |
Air pressure | 0.6Mpa |
Air consumption | 2.0m3/min |
Water quantity | 50kg/h dotv-cycle operation |
Total weight | 2600kg |
External size | 3480x3200x1800mm |
Packaging film | PVC/PE composite film |
2. Operating principle:
1) Foring part
film material on the film s plate(PVC/PE)through the gripping agences into forming area to preheating film——>forming mold——>blowing film——>blown film forming triangle knife cut edge technology, the dotted line cut
2) Filling part
seven nozzles filling, for forming suppository one time embedded filling, filling precision±1%, material barrel with electric-heating insulation system, top with a stirring motor so that drug keep uniform state, the drug in the barrel through cycle pump into filling nozzleis, one time filling the remaining drug cycle through the other end of a raw material barrel to do the next filling.
3) Cooling part
Filling the entire row of drug finished then into cooling frame,cooling box enternal with chiller block,cooling wind through four condensers in the cooling box to cooling suppository on the cooling rack.
4) Seal tail and type code
After cooling the solid suppository into sealing area:pre-heat mold——>seal mold——>type mold.Then cut the finished products a group for six granules or five granules (according to customers requirement)
3. Equipment advantage
1. PLC inspection function:through PLC online monitoring function can inspect automatic running fault and alarm as the same time show the reason of running fault its convenient operator to remove the fault timely
2. The filling part with removing static electricity system
Note:before forming shell reach filling place if without this device because trace drug filling and close shell top position will along the shell wall climb up a small hill under the static electricity function reach suppository sealing part will affect the quality of behind the seal
3. Stirring barrel speed adjustable system
Note: because of the drug material different and the viscosity different maybe the same stirring result can not mix drug uniform before filling so that affect finished suppository products drug content.
4. Cooling speed adjustable system
Note: because of different drug different components maybe need different cooling speed; when the cooling speed too slow will reduce the whole machine production efficieny;if the cooling speed too high maybe due to drug suddenly drop temperature then fracture therefore cooling speed need adjustable
5. Shearing granules quantity can adjustable system
Note: according to customer s requirement can convenient set up finished products granules as 4/5/6/7granules.

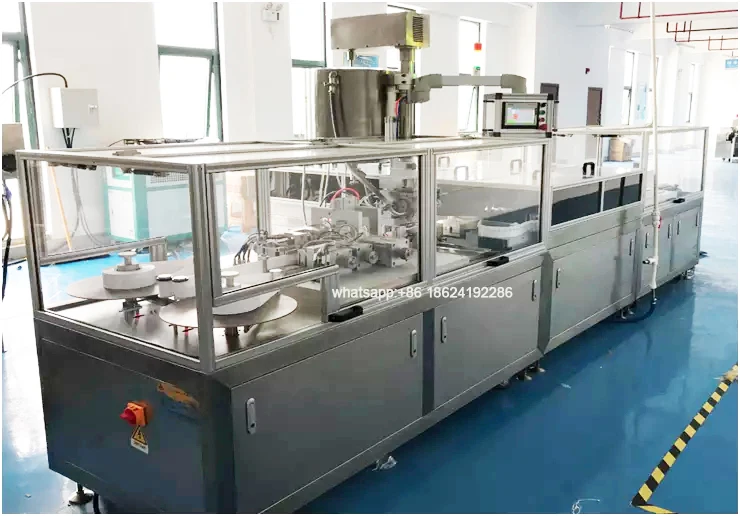

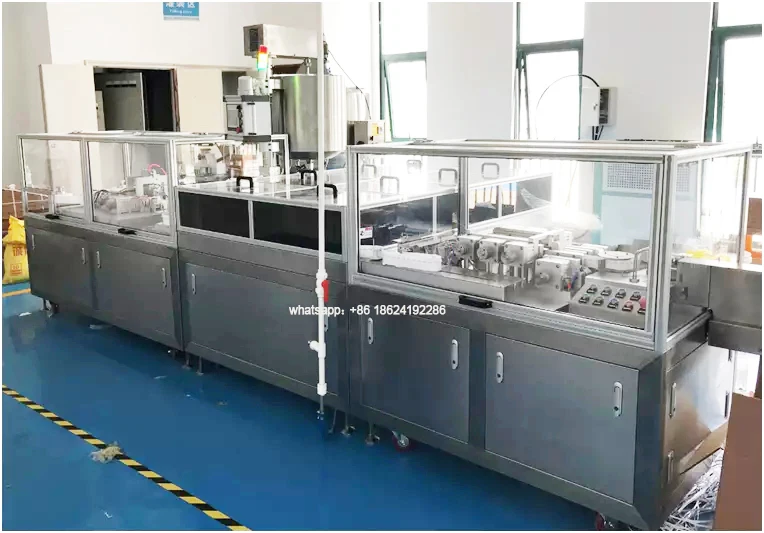

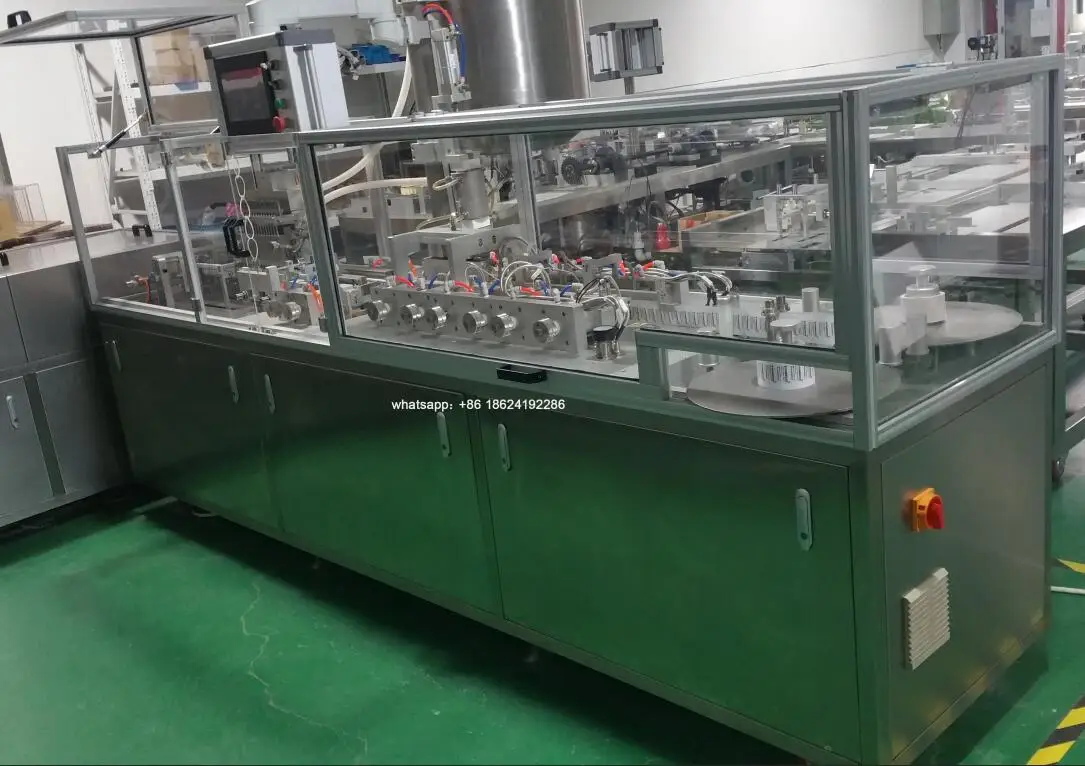

Details picture:
Liaoyang Zhonglian Pharmaceutical Machinery Co.,Ltd. ,belongs to ZHONGLINAN international Group. We are the professional manufacturer of pharmaceutical equipment and food equipment, which including separating equipment, filling equipment, packing equipment, dryer and relevant complete set of production line equipment.
Group was founded in 2001, the headquarters is located in Liaoyang city, Liaoning province. The factory covers an area of ten thousand square meters, production workshop seven thousand square meters. The factory own a professional r&d team and after-sales service team. In the same industry take the lead through the ISO9001:2008 international quality system certification, and get the certification of SGS, CE, GMP and so on.
At present, our products have been exported to the United States, Mexico, New Zealand, South Korea,Australia,Turkey,Japan,Thailand,Malaysia,Singapore,Indonesia,Canada,Kenya,Seychelles,Italy,Iran,Venezuela,Peru,India,Russia,Denmark,Spain,Finland,Greece,Colombia,and so on more than 30 countries. Our aim is saving your valuable time and cost, providing you with the workable solution!
Exhibition
1. How can our machine match client demand well?
We will send your the video or some question to confirm your demand. if the machine is suitable for you, we will make a detail project for you. You can send us sample to us and we will take a video for you. Or we also welcome you take the sample by yourself to our factory to see the machine effect.
2. We are a factory or a trading company?
We are the manufacturer, and have been in industry for more than 20 years. Welcome to visit us.
3.How about the payment way?
You can pay by T/T or LC, or by Alibaba`s trade assurance service, or by the West Union, or in cash.
4. How to ensure the machine’s quality after buyer put the order?
Before the delivery, we will test the machine. When we make sure it run faultlessly, we will send you machine’s pictures and videos. Or You can come to us to check by yourself, or by the third party inspection organization contacted by your side.
5. Worry us won't deliver the machine after you pay the cost.
We are the VIP member in ALIBABA. Please note our above business license and certificates. And if you don't trust us, you can use Alibaba’s trade assurance service or by LC.
6. Why choose us?
1) We have been engaged in the manufacturing for over 30 years, and we can not only supply you the single machine, but also can supply you the full line.
7. Basic after service.
1) Warranty period:12 months counting from the delivery date. Lifetime maintenance.
2) Solve the client question: The machine is delivered with the installation video and the instruction book. When client meet any questions in operation the machine, we will help client solve the problem within 24 hours by sending the video or picture.
3) Training and Installation: the buyer can come to the seller factory to learn how to use the machine. If the buyer need, we can also send our engineer to the buyer factory for installation,debugging and train the buyer` work.
4)The language in the machine: All the character showing in the machine in English or client language.
