Low Cost Ampoule Line

Low Cost Ampoule Line

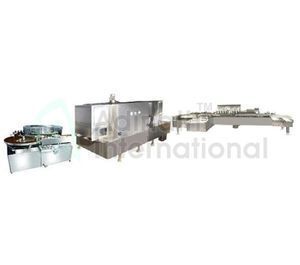

Small Scale Ampoule Filling Line comprises washing, sterilizing, filling sealing and labeling equipments synchronized to work as one system.

Automatic Rotary Ampoule Washing Machine

• Production output up to 240 Ampoules per Minute
• All contact parts with the internal surface of Ampoules and the wash media are made of Stainless Steel
• 316L
• All other parts are made from engineering plastic, AISI 304 or other FDA approved material
• All finishes, welding joints are processed, treated & equipment selected in accordance with cGMP standards

Ampoule Sterilization & Depyrogenation Tunnel

PLC controlled and equipped with touch screen colour graphics display for easy operator access to control screens and statistics, data storage and retrieval. Data management system is 21 CFR part II compliant. Ampoules are transported through a stainless steel wire conveyor entry from automatic washing machines (non-sterile) to the outlet filing line (sterile area)

Automatic Ampoule Filling and Sealing Machine

• Compact cGMP model
• AISI 316L dosing syringes without gaskets.
• Drip free adjustment for media of different viscosity
• “No Ampoule-No filling” function
• Dosing Syringes driven by separate brussless Motor
• Ampoule sampling unit without stopping the machine
• Higher out put up to 15000 Ampoules per hour
• Machine equipped with pre-warming station
• Minimum change over time, little maintenance, easy cleaning

Automatic Ampoule Sticker Labeling Machine

• Compact cGMP model
• Higher output up to 250 ampoules per minute
• Accurate label placement
• Servo based system
• Variable A.C. Frequency drive for speed adjustment
• Imported sensor for container & label
• Inbuilt speed indicator & counter
