Optional: | Three shanks ripper, Single shank ripper, AC; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; |
Supply Ability: | 20 Set/Sets per Month; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Hydraulic Cylinder Brand: | IMPORTED; | Hydraulic Valve Brand: | IMPORTED; |
Packaging Detail: | Main machine nude, attached parts and tools into standard export case.; | Moving Type: | Crawler Bulldozer; |
Brand Name: | Shantui; | Model Number: | SD32; |
After-sales Service Provided: | Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Free spare parts; | Condition: | New; |
UNIQUE SELLING POINT: | Best bulldozer manufacturer; | Dimension(Long * Breadth * High): | 6880*4130*3725mm; |
Local Service Location: | Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Thailand,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan; | Machine Weight: | 37200kg; |
Place of Origin: | Shandong China; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Showroom Location: | Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Thailand,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Malaysia,Australia,Morocco; | Port: | Shanghai; |
Hydraulic Pump Brand: | IMPORTED; | Warranty: | 1 year; |

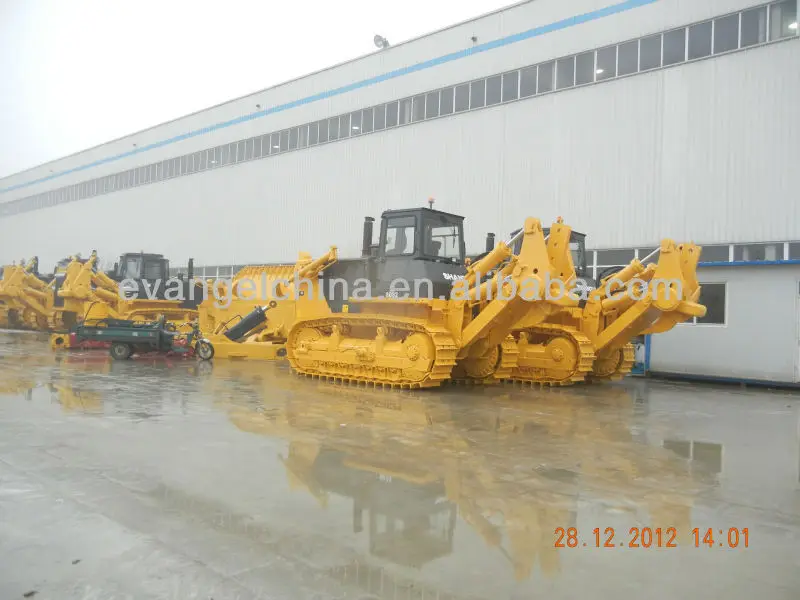

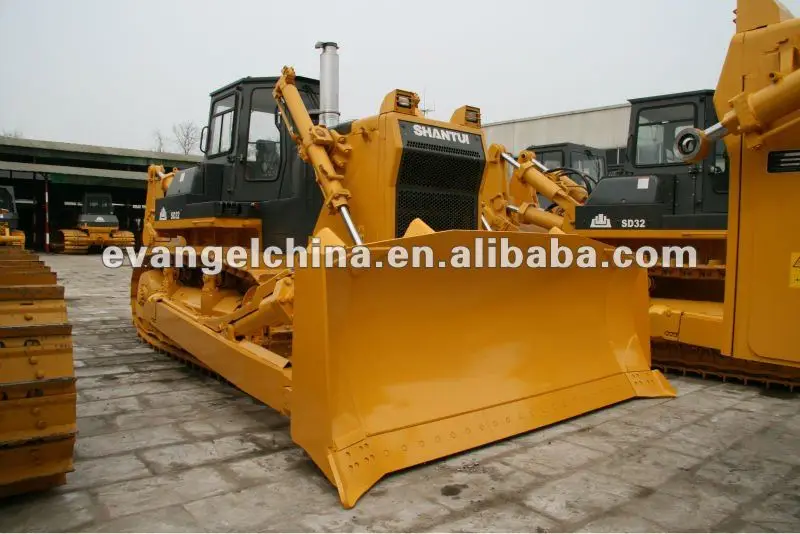

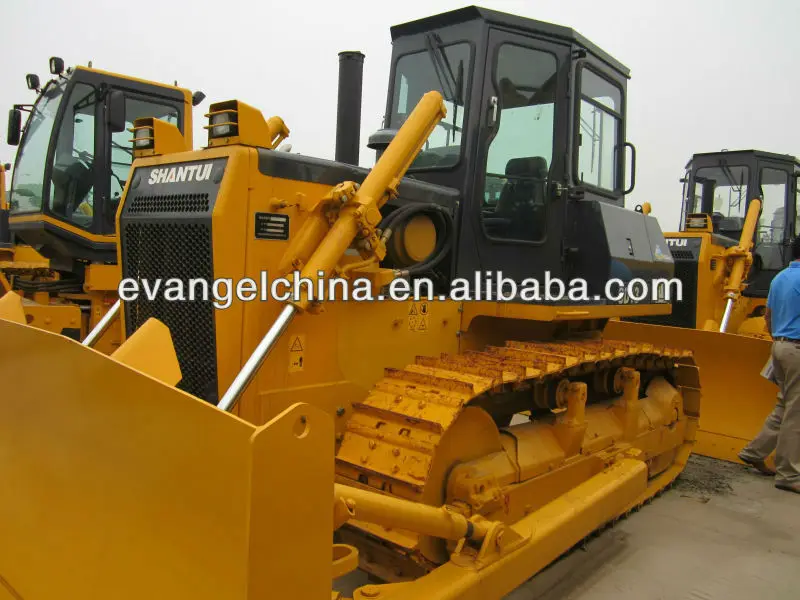

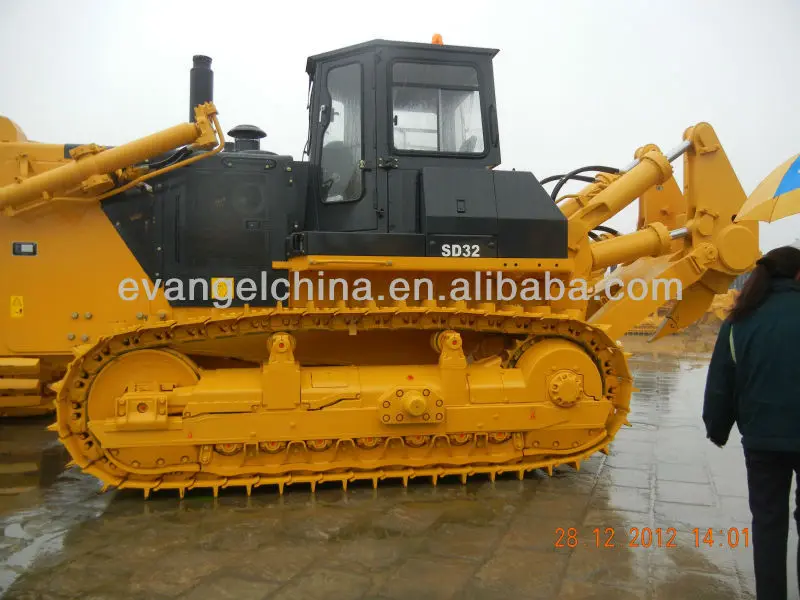

Shantui brand new 320HP crawler earth mover SD32
Yvonne Liu
Whatsapp : 86-158 21040156
wechat/mobile No.:+86-158 21040156
Based on the Shantui TY320B, the SD32 bulldozer was developed by Shantui for operation in earth moving projects with tough conditions. Equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provides reliable performance and convenient and flexible operation, the SD32 is the ideal medium size construction machine for earth moving projects.
ITEM | UNIT | SD32 |
---|---|---|
L×W×H (Ripper not included) | mm | 6880×4130×3725 |
Operating weight (Ripper not included) | t | 37.2 |
Engine | - | NTA855-C360S10 |
Rated power | kW/rpm | 235/2000 |
Gradeability | ° | 30 |
Blade type | - | Straight tilt bladeSemi-U bladeAngle blade |
Blade width | mm | Straight tilt blade 4130×1590Semi-U blade 4030×1720Angle blade 5000×1140 |
Dozing capacity | m3 | Straight tilt blade 10Semi-U blade 11.9Angle blade 6 |
Ma× drop below ground of blade | mm | 560 |
Lift height of blade | mm | 1560 |
Ripper type | - | Single ripperThree-shank ripper |
Ripping depth of ripper | mm | Single ripper 1250Three-shank ripper 842 |
Lifting height of ripper | mm | Single ripper 955Three-shank ripper 883 |
Number of carriers (each side) | - | 2 |
Number of track rollers (each side) | - | 7 |
Number of track shoes (each side) | - | 41 |
Width of track shoe | mm | 560 |
Track gauge | mm | 2140 |
Ground length and ground pressure | mm/MPa | 3150-0.105 |
Pitch | mm | 228.6 |
Forward speed | km/h | 0–3.6 |
0–6.6 | ||
0–11.5 | ||
Reverse speed | km/h | 0–4.4 |
0–7.8 | ||
0–13.5 |
Travel speed
Final drive
final drive--2-stage spur gear,speed reduction,splash lubrication
undercarriage system
suspension--swing type of sprayed beam, suspended structure of equalizer bar
NO. Of carrier rollers--2(each side)
NO.of track rollers--7(each side)
NO. Of idler--1(each side)
Track shoe
assembled type--single tooth
pitch--228.6mm
width--560mm
tooth height--80mm
NO. Of track shoes--41(each side)
track gauge--2140mm
ground pressure--0.105Mpa
weight
operating weight--37200kg
with multi-ripper--40975kg
hydraulic control system
Max. Pressure--14Mpa(140kg/m²)
type--gear pump
displacement--335.5L/min
control valve type--guiding valve,raise,hold,lower,float
hydraulic tank--control valve and oil filter inner-installed type
steering system
steering clutch--wet type,multi-disc,spring loaded,hydraulially separated,hand and hydraulic control operated
steering brake--wet type,band brake,foot operated(with hydraulic booster, interconnected with clutch)
coolant and lubricant capacity
working device and attachment
straight-tilt dozer--hydraulically actuated with servo valve
blade supporting method--brace type tilt cylinder on right side
width--4130mm
height--1590mm
Max. Lift above ground--1560mm
Max.drop below ground--560mm
Max.Tilt adjustment--1000mm
3-shank ripper
Max. Digging depth--542mm
Max.lift above ground--883mm
Standard digging angle--45°
variable within range between35°-63°
Max.digging depth of single ripper--1250mm
Max. Lift above ground--965mm
overall dimensions
LXWXH--6880X4130X3725
