ZOOMLION T6013-8 T6013A-8A construction hoisting flat-top tower crane hot sale in Cambodia

Supplier: Evangel Industrial (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Teresa Xuan
Price: $60000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Max. working radius:	40/50m;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;
Port:	Qingdao, Shanghai, Lianyungang, Tianjin;	Speed (m/min):	0~0.6;
Packaging Detail:	Nude package, attached parts and tools into standard export box or carton;	Brand Name:	ZOOMLION;
Rated Loading Capacity:	8000kg;	Max. Lifting Height:	39m;
Condition:	New;	Warranty:	1 YEAR;
Min. working radius:	9m;	Feature:	tower crane;
Applicable Industries:	Manufacturing Plant,Retail,Construction works ,Energy & Mining;	Certification:	ISO, CE;
Free-standing stationary crane:	90.2m;	Anchored crane:	315m;
Rated Lifting Moment:	800 t.m;	Application:	construction project, construction machinery;
Span:	6m;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Place of Origin:	china;	Supply Ability:	100 Unit/Units per Month;
Max. lifting capacity (t):	8t;

ZOOMLION T6013-8 T6013A-8A construction hoisting flat-top tower crane hot sale in Cambodia

Product Description

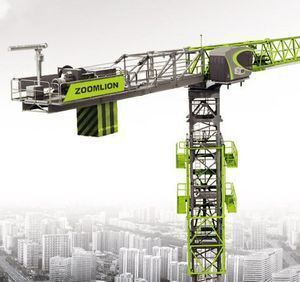

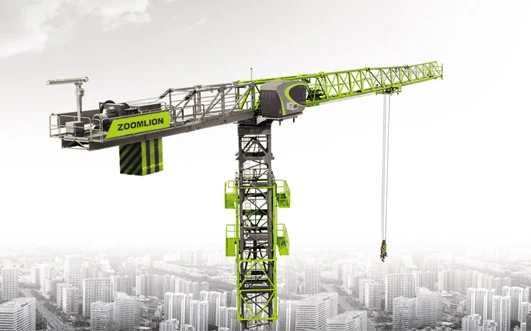

Flat-top Tower Crane T6013-8

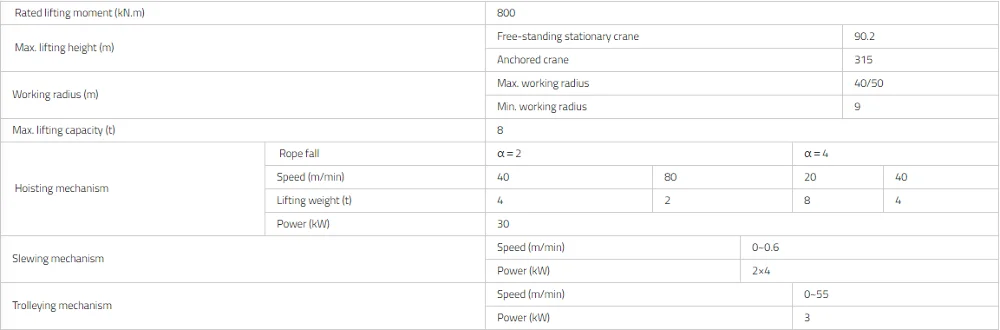

1. Performance parameters of T6013-8: performance parameters and technical indexes reach both domestic and international advanced level.
• Max. jib length: 60m; Jib length under different assembling modes can decrease progressively by 5 meters and the Min. jib length is 30 meters.
• Max. lifting capacity: 8t;
• Max. hoisting capacity at jib tip:3.33t;
• Max. lifting moment 800 t.m;
• Max. free-standing height: 39m; Max. working height of anchored crane: 216m;
• Hoisting mechanism: H30FP20-400; power:30kW; rope capacity: 400m;
• Slewing mechanism:S40CR-100A10/12A; power:2×4
• Trolleying mechanism: T30FC60; power: 3kW
• Types of tower crane: stationary crane with embedded outriggers, stationary crane with embedded bolts, stationary crane with under-frame and mobile tower crane.

2. Electrical control system
With PLC control, the electrical control system enjoys better reliability and safety. Produced by professional manufacturers with advanced foreign technology, the electrical elements feature service lives that are 3 or 4 times longer than that of domestic products, less faults, easy maintenance and repair as well as reliable operation.

3. Technical features

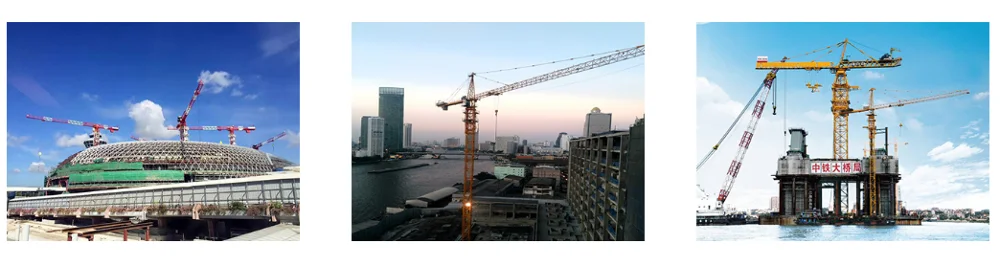

• The crane boasts of multiple operation modes and wide application; The crane can work in different forms: stationary crane with embedded outriggers, stationary crane with under-frame, stationary crane with embedded bolts and crane anchored to wall, thus being applicable to various construction projects.
• The complete machine adopts internationally well-received beautiful shape;
• The crane features high working speed and excellent speed regulation performance. Stepless speed regulation by frequency control, the world's most advanced solution, is adopted for the trolleying mechanism and slewing mechanism, thus ensuring more stable and reliable operation ;
• The cab is independently installed externally with good vision and large inner space, thus offering a good working environment for operators;
• A variety of safety devices are equipped, which are all mechanical or mechatronic products that are applicable to severe working conditions, so as to ensure the tower crane's reliable operation.
