Machinery Test Report: | Provided; | Local Service Location: | Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan; |
Paving Width: | 4.5m; | Hydraulic Valve Brand: | Imported; |
Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | UNIQUE SELLING POINT: | Low Price; |
Showroom Location: | Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan,Malaysia,Australia; | Weight: | 14040KG; |
After-sales Service Provided: | Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service; | Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; |
Warranty of core components: | 1 Year; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; |
Port: | Shanghai/Qingdao; | Hydraulic Pump Brand: | Imported; |
Certification: | ISO CE; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Color: | Optional; | Brand Name: | CLW; |
Supply Ability: | 50 Unit/Units per Month; | Warranty: | 1 Year; |
Tank Volume: | 16m3; | Place of Origin: | Hubei China; |
Condition: | New; | Engine Brand: | Imported; |
Marketing Type: | New Product 2020; | Dimension(L*W*H): | 9.9*2.5*3.45m; |
Power: | 273KW; | Video outgoing-inspection: | Provided; |
Production Capacity: | 950L/MIN; | Max. Paving Thickness: | 2.5cm; |
Packaging Detail: | 1 set for 40HQ container or RORO shipment or Bulk break shipment.; |

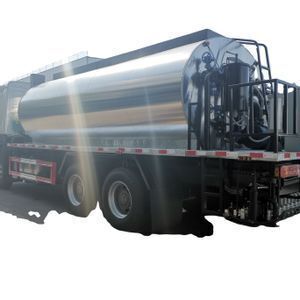

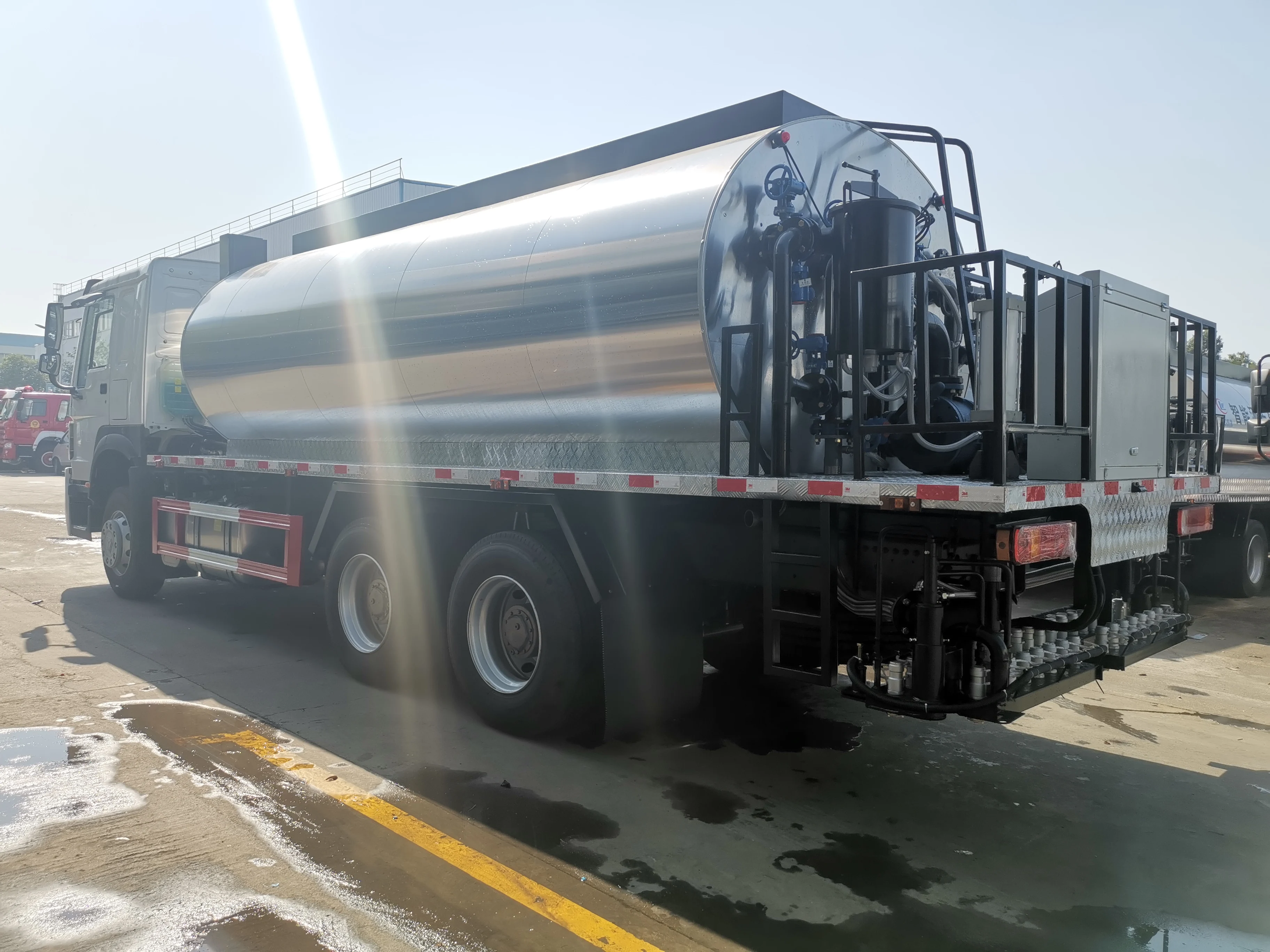

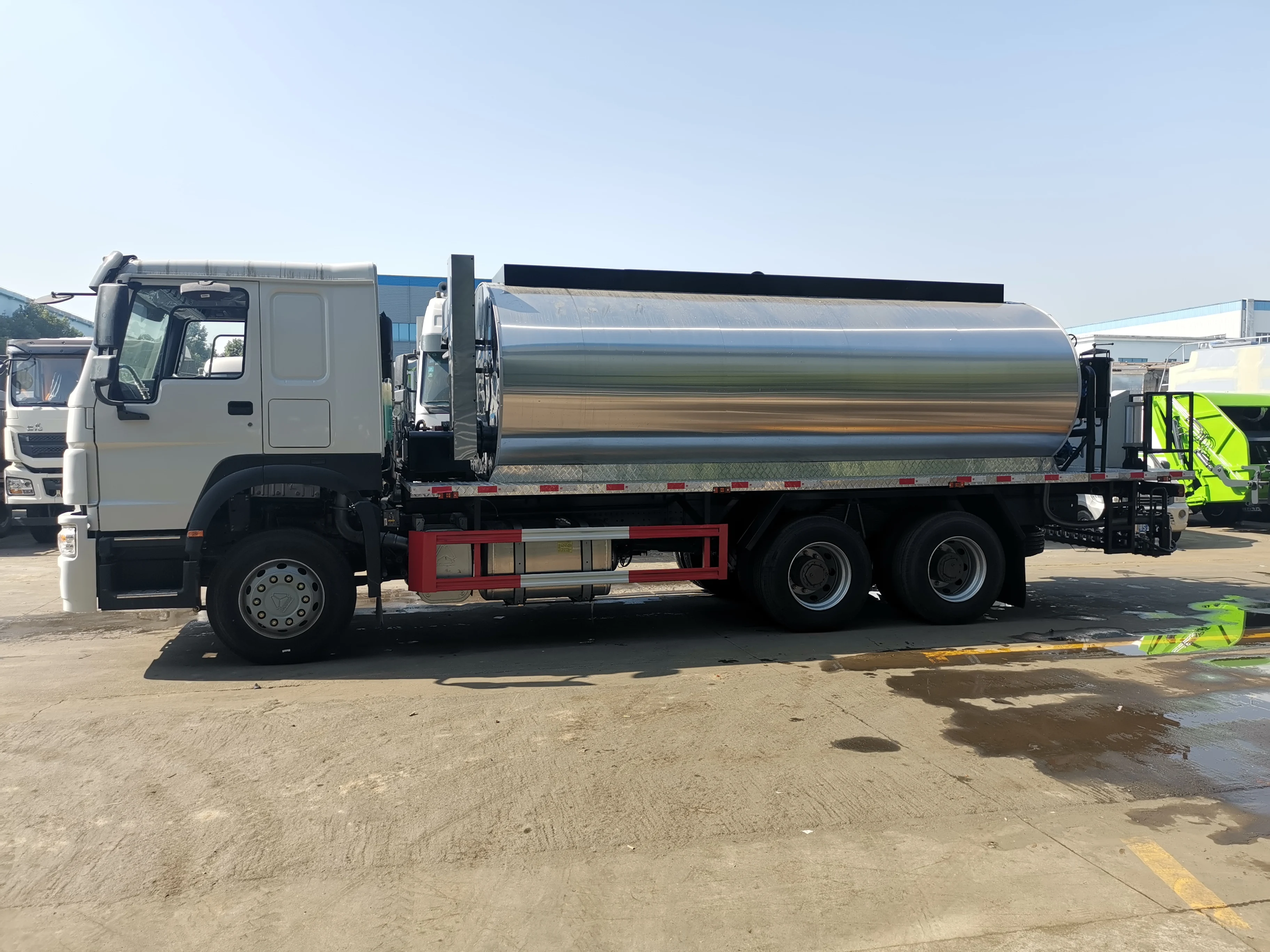

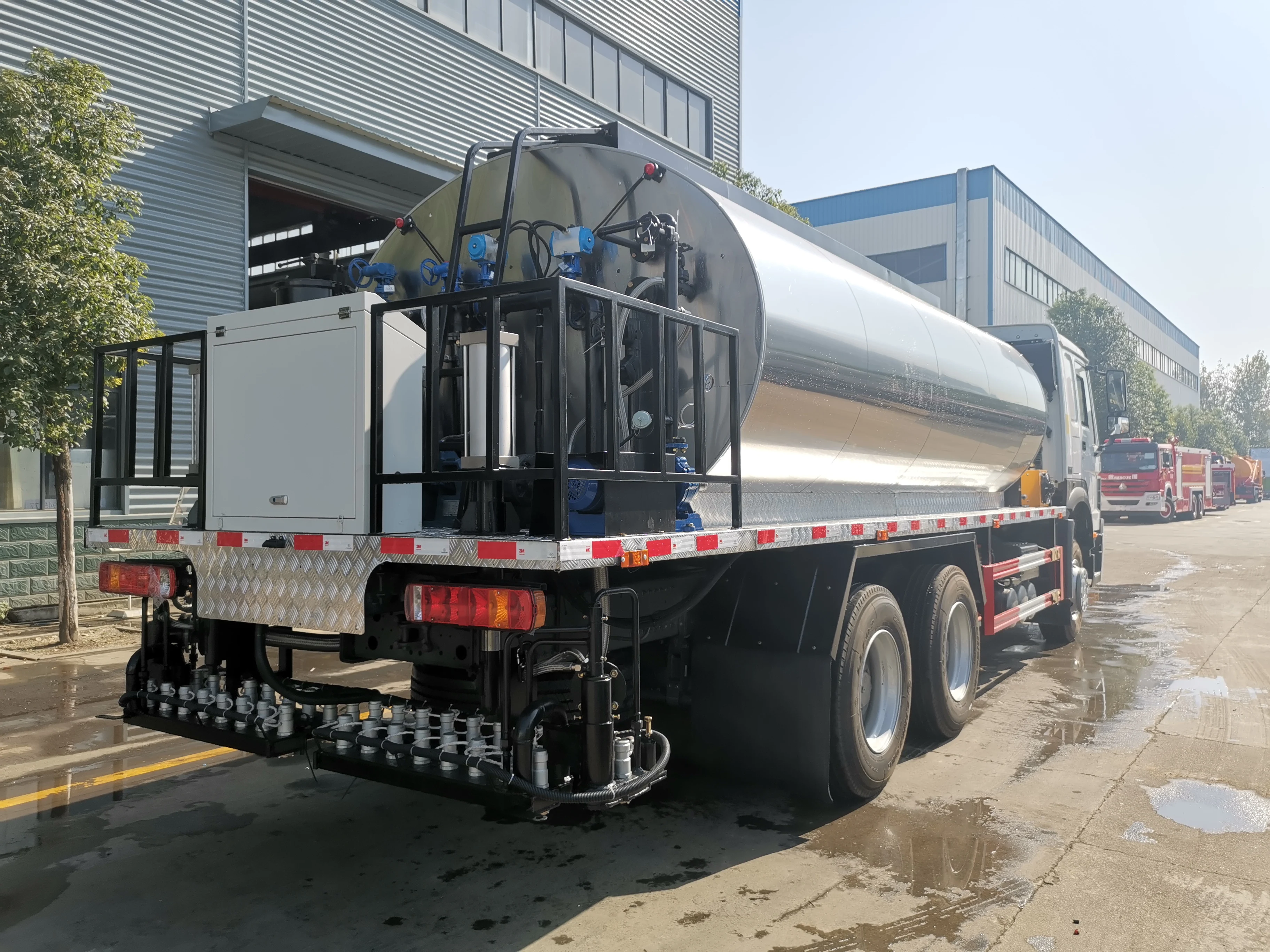

4.5M Asphalt Distributor Truck 16CBM
6x4 16m3 asphalt distributor truck
Color: Red ,White, Yellow or optional
SINOTRUK HOWO 6x4, right/left hand drive
Tank volume 16m3
Control method: Semi intelligence control
Spray width: 4.5m
Asphalt intelligent nozzle:36units
Heating method Heat conducting oil automatic heating
Burner G20, imported from Italy
SINOTRUK HOWO 6x4 16m3 asphalt distributor truck |
|||
Chassis |
ZZ1257 |
||
Color |
Red ,White, Yellow or optional |
||
Drive type |
6x4,left hand drive |
||
Dimensions |
|||
Wheel base |
4325+1350mm |
||
Overall Dimension |
10200x2500x3450mm |
||
Tank volume |
16m3 |
||
Weights |
|||
Payload weight |
16000kg |
||
Curb weight |
16000kg |
||
Front /Rear tread |
2022/1830/1830mm |
||
Front/rear overhang |
1500/2750mm |
||
Approach/Departure angle |
16/13(°) |
||
Engine |
|||
Engine model |
WD615.47 ,Euro 2 |
||
Engine horsepower |
371HP |
||
Engine manufacturer |
SINOTRUK Group |
||
Displacement |
9726L |
||
Drive Line |
|||
Cluth description |
Dry single plate, hydraulic control booster, mechanical operation |
||
Transmission |
HW19710/10 forwarder,2 reverse gear, Manual operation |
||
Braking system |
Service brake |
air brake |
|
Axles |
|||
Front Axle-Model |
HF7, 7 ton |
||
Rear Axle(drive axle)-Model |
Double ST16, 16 ton x 2 |
||
Tire specification |
295/80R22.5, 10 tires+1 spare tire |
||
Special function of asphalt distribution truck |
|||
Asphalt tank |
Material: |
4mm steel plate.120mm insulation layer, stainless steel outside .it can prevent the heating losing |
|
Tanker volume |
16m3,one φ440mm manhole |
||
Thermal asphalt |
160-180 centigrade |
||
Asphalt pump |
Model |
QGB950 |
|
Flow |
950L/min |
||
Rated speed |
583rpm/min |
||
Resolve pressure |
0.8MPA |
||
Hydraulic pump |
CBQ550-L |
||
Control method |
Semi intelligence control |
||
Spray width |
4.5m |
||
Asphalt intelligent nozzle |
36units |
||
Heating method |
Heat conducting oil automatic heating |
||
Burner |
G20, imported from Italy |
