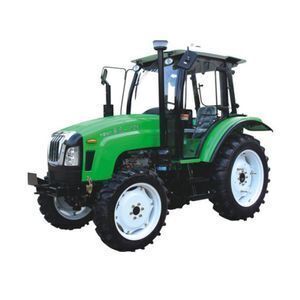

Chinese Agricultural equipment 40HP Lutong Wheeled small Farm Tractor LT400 2WD

Supplier: Evangel Industrial (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Ms Teresa Xuan
Price: $3300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	TUTONG;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash;
Usage:	FARM TRACTOR;	Certificate:	ce;
Showroom Location:	philippines,brazil,pakistan,INDIA,Thailand,kenya,UAE,Colombia,BANGLADESH,south africa,NIGERIA,uzbekistan,Australia,Morocco;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support,Engineers available to service machinery overseas;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Condition:	New;
Packaging Detail:	by container;	Key Selling Points:	CHEAP;
Drive Type:	gear drive;	Supply Ability:	5000 Set/Sets per Month;
Local Service Location:	philippines,brazil,pakistan,INDIA,Thailand,japan,kenya,argentina,Colombia,algeria,south africa,KAZAKHSTAN,uzbekistan,Tajikistan;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,farms,restaurant,HOME USE,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Type:	Wheel Tractor;	Place of Origin:	Henan China;
Port:	Shanghai;	Warranty:	1 YEAR;
color:	red;	By wheel:	2wd;

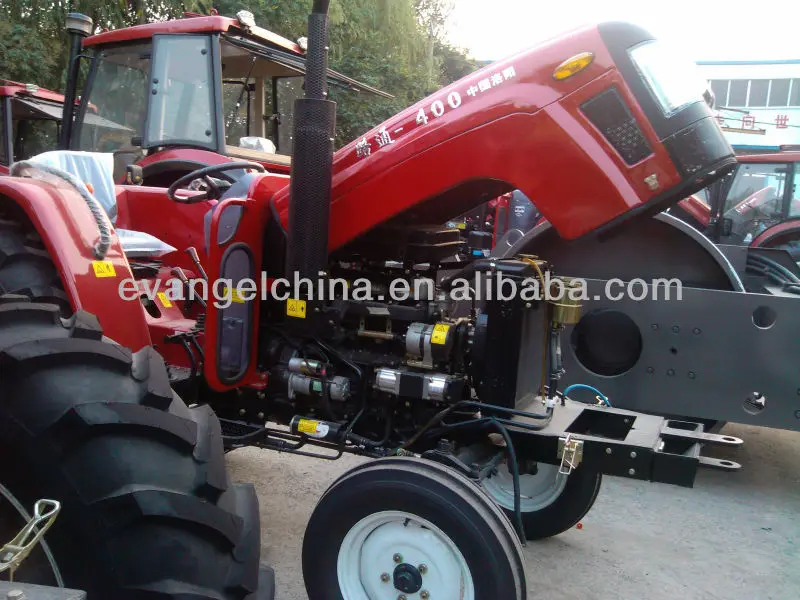

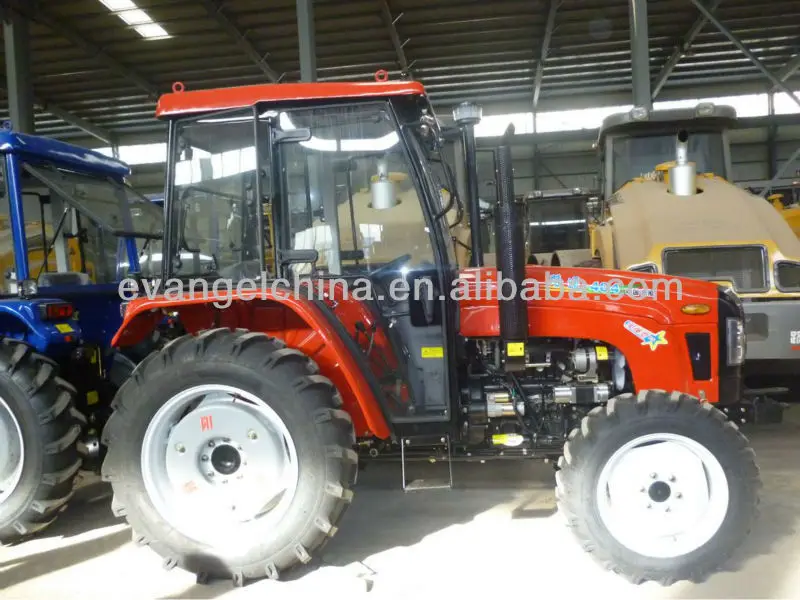

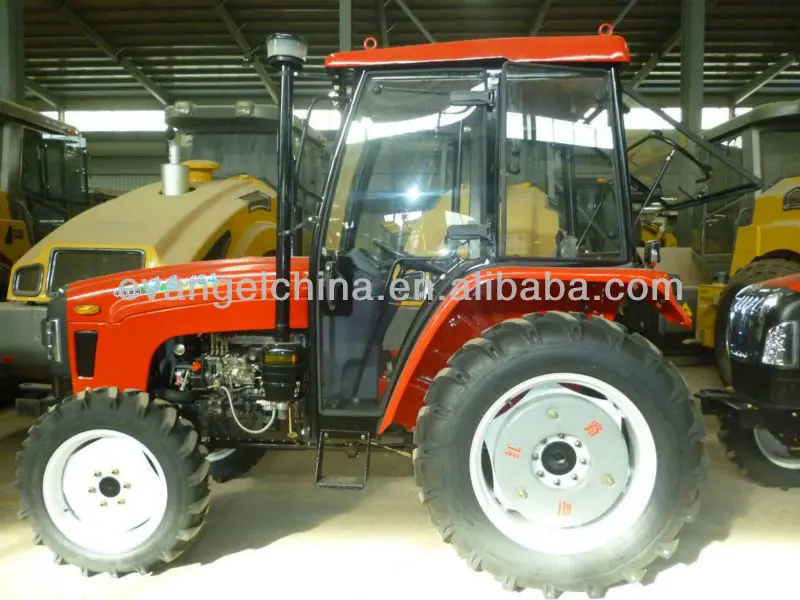

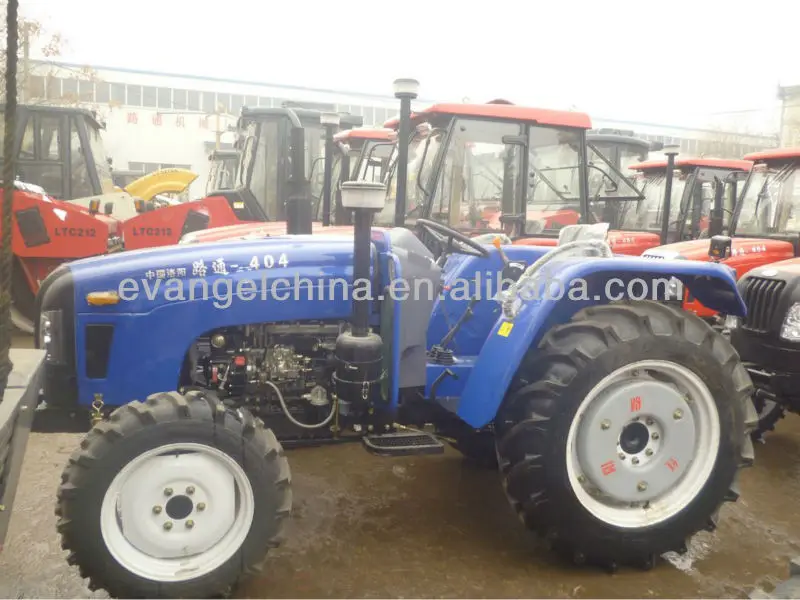

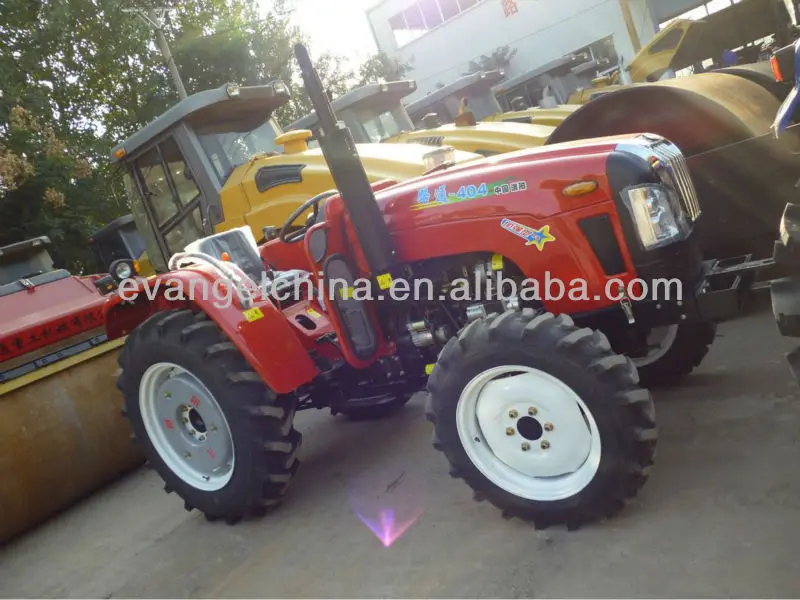

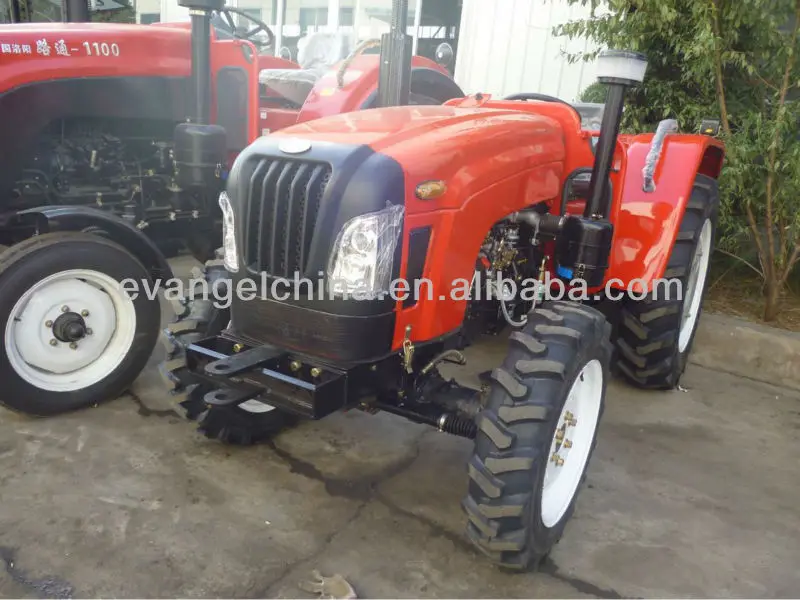

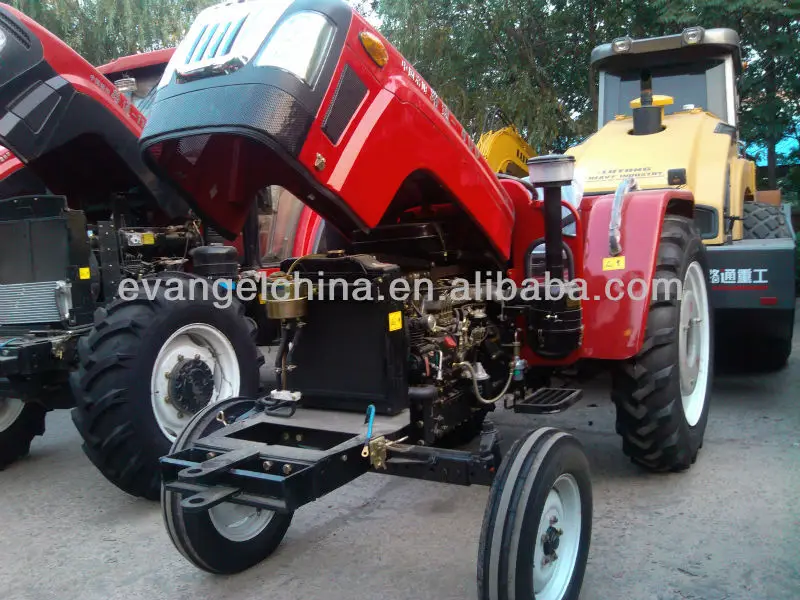

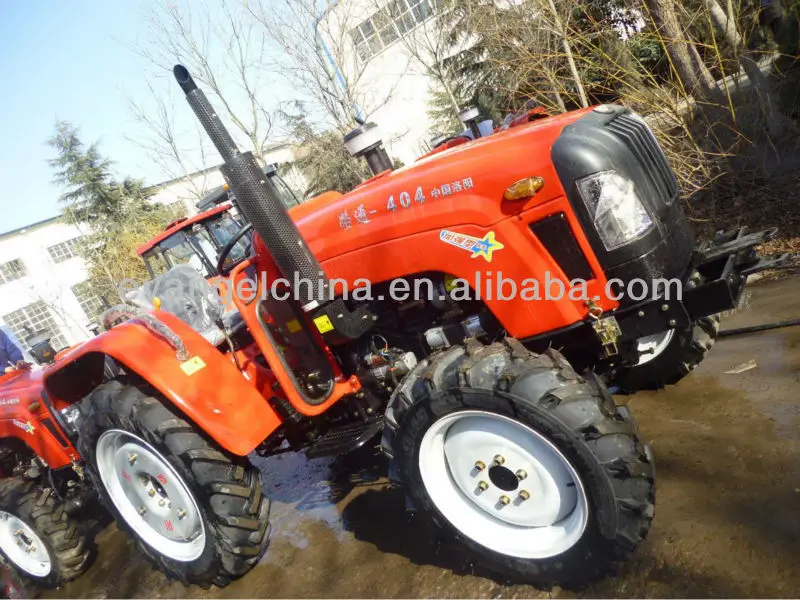

40HP Lutong Wheeled Tractor LT400 2WD

Lutong 40 series wheel-style tractors, which are more advanced than the same types of machines in China, which are developed by Luoyang Lutong Agricultural Equipment Limited.

1. Adopt Zhejiang Xinchai diesel engines, better reliability,more back coefficient for torsion

2. The whole tractro is beautiful,taste,modern, fashion

3. 10 inch clutch with double actions

4. the final driving is planet-gear style,smaller volume,bigger decelerating ratio.

5. Installed adjustable chair with elasticity and shock absorption,confortable driving

		LYH400	LYH404	LYH450	LYH454

Diesel Engine
Diesel model		xinchai490BT		xinchai495BT
Rated power		29.4		33.1
Driving output axis		540/760(optional540/1000)
Weight
Operating mass (structure/the smallest using mass		1665/1840	1890/2080	1665/1840	1890/2080
Transmission system
Turning radius(apply brake without single side)	m	3.1/3.5	3.4/4.1	3.1/3.5	3.4/4.1
Rated traction	Kn	9	12	9	12
clutch	10inch dry style single action or double action
Gear box	shift combination style. Mesh cover shift
Speed range	2.4-31.9
centre transmission	spire and taper sub-gear
Different speeder	double planet wheels close style
Different speed lock	Post and pin style
Final transmission	Planet gear style
Front driving bridge	full closed prick gear style(for types with 4-wheel driving)
Independent driving box	column gear with straight teeth(for types with 4-wheel driving)
Machine parameters
Wheelbase	mm	1880	1924	1946	1990
Ground clearance	mm	400	325	400	325
Agriculture ground gap	mm	450	375	450	375
Front wheel spec.		6.0-16	8.3-20	6.0-16	8.3-20
Rear wheel spec.		12.4-28
Redirector type		mechanical or liquid-pressure turning
Arrester type		Arrester with double pieces of oil-bath tray(mechanical style)
Lifter type		Semi-separation
Control way to plough depth		Force place and floating control
Hanging device type		Three point hanging with postposition
Machine dimensions
Overall dimension		351318232130	351317502130
Front wheel tread		1200~1500	1250	1200~1500	1250
Rear wheel tread		1200~1500(1300 in common use)
