Supply Ability: | 100 Unit/Units per Month; | Machinery Test Report: | Provided; |
Engine Brand: | top brand; | Hydraulic Valve Brand: | top brand; |
Local Service Location: | Malaysia,Australia,Argentina,South Korea,Chile,Colombia,Algeria,Kazakhstan; | Condition: | New; |
Reverse Speed(km/h): | 29.8; | Forward Speed(km/h): | 39.6; |
Rated power: | 118 kW/2200 rpm; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
Maximum cutting depth: | 500mm; | Color: | yellow; |
Working diameter: | 3660mm; | Packaging Detail: | Nude package, attached parts and tools into standard export box or carton; |
Port: | Qingdao, Shanghai, Lianyungang, Tianjin; | Place of Origin: | Shandong China; |
Certification: | ISO; | Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; |
Hydraulic Cylinder Brand: | top brand; | Warranty of core components: | 1 Year; |
Minimum ground clearance: | 430mm; | Video outgoing-inspection: | Provided; |
Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Min. Turning Radius: | 7800mm; |
Brand Name: | SHANTUI; | Operating weight: | 15.4 t; |
Dimension(L*W*H): | 8900*2625*3470mm; | After-sales Service Provided: | Video technical support,Online support,Field maintenance and repair service,Field installation, commissioning and training,Free spare parts; |
Engine model: | Cumins 6BTAA5.9-C160; | Gradeability: | 20; |
Package Preview: | ; | Maximum lifting height: | 440mm; |
Minimum ground clearance: | 430 mm; | Warranty: | 1 Year; |
UNIQUE SELLING POINT: | High operating efficiency; | Marketing Type: | Ordinary Product; |
Hydraulic Pump Brand: | top brand; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Showroom Location: | Sri Lanka,Romania,Uzbekistan; |

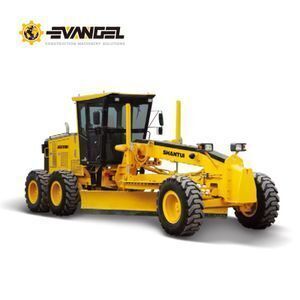

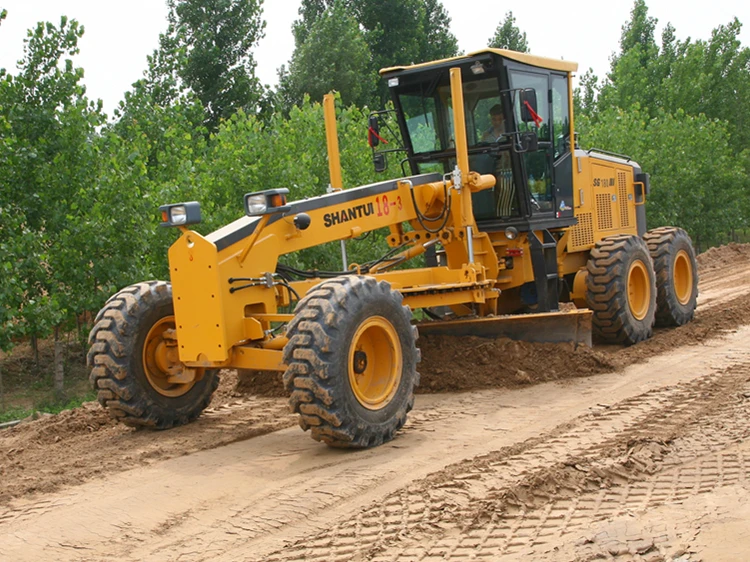

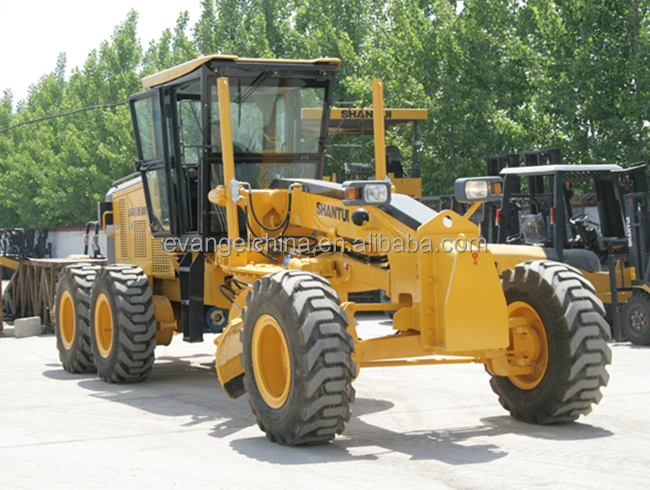

Shantui factory direct sale motor grader SG16-3 with operating weight 15.4ton
SHANTUI brand motor grader for sale!
Model | SG14 | SG16-3 | SG18-3 | SG21(A)-3 | |
Basic parameter |
Operating Weight | 11600kg | 15400kg | 16200kg | 17000kg |
Max. traction | 65kN | 86kN | 91kN | 96/122kN | |
Minimum ground clearance | 430mm | 430mm | 430mm | 430mm | |
Gradeability | 20° | 20° | 20° | 20° | |
Min. Turning Radius | 6600mm | 7800mm | 7800mm | 8200mm | |
Front wheel steering angle | ±45° | ±45° | ±45° | ±45° | |
Chassis steering angle | ±25° | ±25° | ±25° | ±25° | |
The front axle tilt angle | ±17° | ±17° | ±17° | ±17° | |
The front axle swing angle | ±15° | ±15° | ±15° | ±15° | |
Rear axle swing angle | ±15° | ±15° | ±15° | ±15° | |
Brake pressure | 10MPa | 10MPa | 10MPa | 10MPa | |
Working pressure | 16MPa | 16MPa | 16MPa | 16MPa | |
Front axle load | 3480kg | 4600kg | 4800kg | 5000kg | |
Rear axle load | 8120kg | 10800kg | 11400kg | 12000kg | |
Engine | Engine Model |
Cu m mins 6BTAA5.9-C150 |
Cu m mins 6BTAA5.9-C160 |
Cu m mins 6BTAA5.9-C180/ SC8D190.1G2 |
Cu m mins 6CTAA8.3-C215 |
Type |
Inline six cylinder, turbocharged, air cooled diesel engine |
Inline six cylinder, turbocharged, |
|||
Rated Power |
112kW/ 2200rpm |
118kW/ 2200rpm |
132kW/2200rpm // 140kW/2300rpm |
160kW/ 2200rpm |
|
Maximum torque |
670N.m/ 1400rpm |
690N.m/ 1300rpm |
770N.m/1500rpm // 720N.m/1300rpm |
980N.m/ 1500rpm |
|
Displacement | 5.9L | 5.9L | 5.9L/8.3L | 8.3L | |
Minimum fuel consumption |
202g/kW.h | 205g/kW.h |
206g/kW.h // 200g/kW.h |
202g/kW.h | |
Travel speed | Froward 1-6 |
0-5.4km/h 0-8.3km/h 0-13.2km/h 0-20.6km/h 0-29.6km/h 0-44km/h |
0-5.4km/h 0-9.3km/h 0-12.2km/h 0-20.7km/h 0-25.6km/h 0-39.7km/h |
||
Reverse 1-3 |
0-5.4km/h 0-13.2km/h 0-29.6km/h |
0-5.4km/h 0-12.2km/h 0-25.6km/h |
|||
Blade | Blade width | 3660mm | 3660mm | 3660/3965mm |
3660/3965/ 4270mm |
Blade height | 615mm | 635mm | 635mm | 635mm | |
Turning angle | 360° | 360° | 360° | 360° | |
Swing angle | ±90° | ±90° | ±90° | ±90° | |
Blade cutting angle sdjustment range |
30-68° | 44-91° | 44-91° | 44-91° | |
Maximum cutting depth |
500mm | 500mm | 500mm | 500mm | |
Maximum lifting height | 460mm | 440mm | 440mm | 440mm | |
Unit cutting force | 17.76kN/m | 23.5kN/m | 24.86/22.95kN/m |
26.23/24.21/ 22.48kN/m |
|
Maximum lateral distance |
1700/2000mm | 1900/1950mm | 1900/1950mm | 1900/1950mm |
