2x800mm Aluminum plate round card cutting machine

Product details
Brand Name:QK;Payment Terms:L/C,T/T,Western Union;
Condition:New;Warranty:1 year;
Weight:120kg;Function:Cuting Sheet Metal;
Material:Iron,steel;Place of Origin:China;
Dimension(L*W*H):1660x500x880mm;Voltage:220V/380V;
Color:Customer Requirement;Packaging Detail:wooden case packing;
Cutting mode:Machenical;Rated Power:2.2KW;
Port:Qingdao or Shanghai port;Supply Ability:11000 Piece/Pieces per Month;
After-sales Service Provided:No overseas service provided;Pressure feeding way:hand wheel;
Product name:plate round card cutting machine;Cutting diameter:150-800mm;
After-sales Service Provided:No after-sales service;Certification:ISO;
Type:Shearing Machines;Cutting thickness:3mm;
Cutting material:Iron Sheet;

2x800mm Aluminum plate round card cutting machine





Product Description


1. Manual or pneumatic pressing, the thin plate does not need to be drilled or punched in the center hole before cutting.

2. The rounding function is achieved by setting the center of the circle and the shape of the slash.

3. The outer circle cutting of the metal sheet is completed at one time, which greatly saves manpower and improves work efficiency.

4. The cut disc has a uniform shape and a smooth curve, which eliminates the defect that the traditional rounding device is prone to straight edges.



Applications: Widely used in industrial wheels, pressure vessels, cookware, stoves, filters, pressure vessels, pressureless vessels, iron drums, end caps, bellows, fans, air conditioning compressors, centrifuges, etc. Production of equipment accessories.

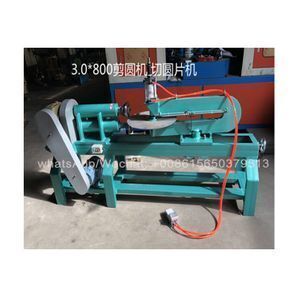

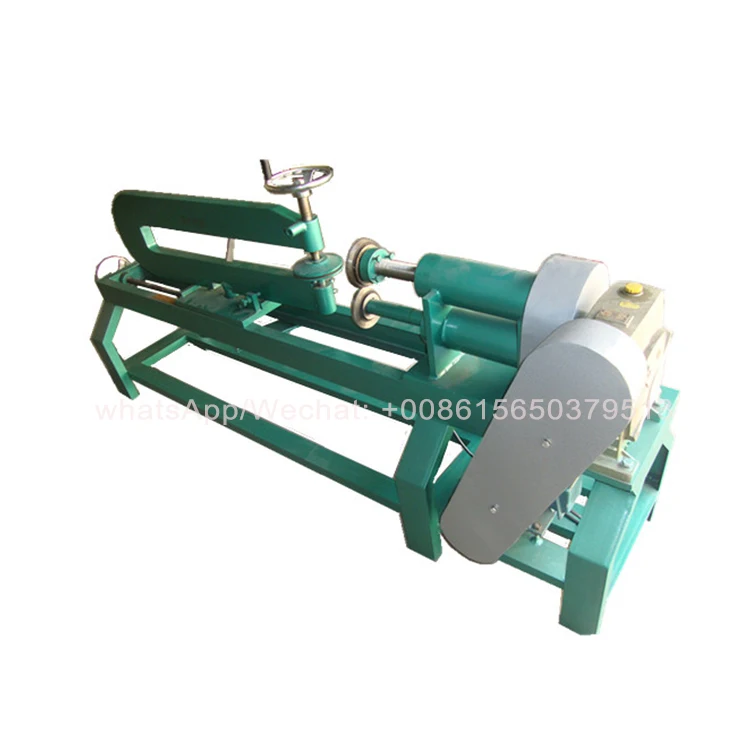

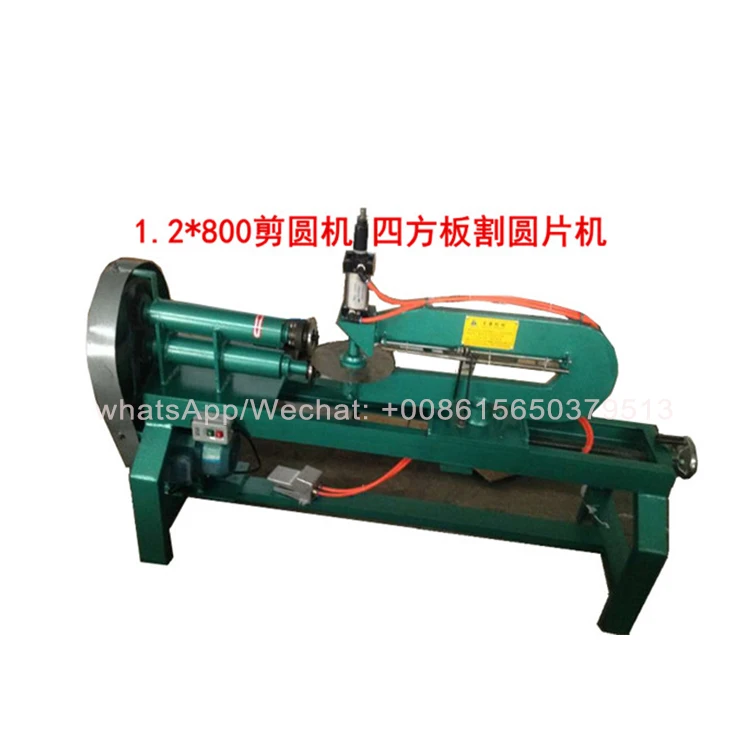

Product Photos



Specification



Model

Plate thinkness

Cutting diameter

Weight

Dimension

Pressure feeding way

YM-B-1.2*800

≤1.2mm

150-800mm

120kg

1660*500*880

hand wheel

YM-B-2*800

≤2.0mm

150-800mm

180kg

1900*500*880

hand wheel

YM-B-2*1200

≤2.0mm

150-1200mm

250kg

2200*500*900

hand wheel

YM-B-4.5*800

≤4.5mm

150-800mm

450kg

2000*700*1200

hand wheel

YM-B-3.5*1200

≤3.5mm

400-1200mm

550kg

2300*700*1200

hand wheel

Packaging & Shipping



Our Services



Pre-sale Service
1.Supply item design,process design.
2.Help you to chose the fit machine.
3.Making the machine according to your requirement.


Sale Service
1.Acceptance equipment together with you.
2.Help you to make the method statement and the details of the process.


After Service
1.Guarantee for a year.
2.Quality problem,we will send you the accessories.
3.Free repair whole using life(without the freight and accessories charge).

Company Information



Jining Qingke Machinery Co., Ltd established in July 29, 2015, registered capital of 5 million.

This is our new branch. Our factory has 6 years history. We have CNC machining center, CNC

lathe, boring machine, and milling machine.



Main products: plate round card cutting machine, Bending machines, Straightening machines, Steel arc bending machine, Ground polishing machines, Terrazzo machines, Solar water pump, Garden Machinery(including tree spade & lawn mower), Construction machinery and accessories, Road marking and Mining equipment, Mining tools and so on.



We have passed the ISO9001:2000 certification. Our products have been exported to Europe, Russia, south America, Africa & the Middle East, more than 20 countries. We sincerely hope to have the opportunity to co-operate with you.





FAQ



Are you manufacture?

Yes. We are one of leading manufacturers



Do you have Stock productions to sell?

Yes, of course. But we also offer OEM service. Please send us some drawing.



What information do you want to know if i want to get a quotation?

a). The model/size of your products.

b). The application for your products.

c). Special package methods if you needs.

d). Raw material.



Do you inspect the finished products?

Yes.Each step of products will be carried out inspection by QC department until shipping



What advantages do you have?

(1) Punctual: Have your orders met with the latest delivery?

We are a manufacturer with so many advanced and new machines.

It ensures we have the ability to carry out the production schedual for punctual delivery.

(2) 20year production experience. We have over 20 years exprerience in this industry.

That means we can preview the problems for the orders and production.

Therefore, it will make sure to deduce the risk of bad situation to happen.

(3) Point to point service.

There is two sales departments who will serve you from inquiry to products shipped out. During the process, you just need to discuss with him for all the problems and the way sames much times.
