Small mini lab wool and cotton sample carding machine for spinning line

Supplier: Anytester (Hefei) Co., Ltd.
Region: Anhui, China
Contact: Mr Eric Qin
Price: $7000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Features:	New;	Speed:	Adjustable (Frequency converter control);
Production Capacity:	high speed;	Cylinder diameter:	450mm;
Warranty:	12 Months;	Condition:	New;
Automatic Grade:	Automatic;	Application:	carding machine;
Working width:	360mm;	Doffer diameter:	220mm;
Port:	China Seaport;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Dimension(LWH):	180110110;	After-sales Service Provided:	Engineers available to service machinery overseas;
Working roll diameter:	110mm;	Power(W):	1000w;
Brand Name:	Anytester;	Packaging Detail:	Standard Export Wooden Case;
Output capacity:	5~10kg/h;	Certification:	ISO9001;
Place of Origin:	Anhui China (Mainland);	Licker-in diameter:	165mm;
Feeding width:	400mm;	Voltage:	220V 50Hz or customized;
Max. fiber length:	about 100mm;	Weight:	650;
Villus bucket power:	1.5KW;	Supply Ability:	10 Set/Sets per Month;

Product Description

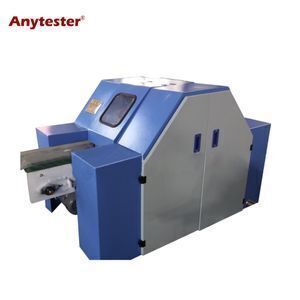

HY1002 Laboratory Carding Machine is part of the mini spinning system. It's mainly used in university, researching center, etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between differential moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.

Specifications
Feeding width		400mm
Working width		360mm
Cylinder diameter		Φ450mm
Doffer diameter		Φ220mm
Licker-in diameter		Φ165mm
Working roll diameter		Φ110mm
Wipe roll diameter		Φ90mm
Speed		Adjustable (Frequency converter control)
Max. fiber length		about 100mm
Villus bucket power		1.5KW
Output capacity		5~10kg/h
Maine machine power		AC220V/380V, 50/60Hz, 2.2KW
Dimension		1350mm950mm900mm (main machine)
Weight		650Kg

Detailed Images

★ Mini type machine, save researching cost and easy to operate and maintain

★ With full-closed protective cover.

★ Imported frequency converter control, high efficiency.

★ It is driven by a 2.2 kw motor, equipped with a electric control cabinet and frequency converter to adjust the running speed.

★ Can be used for wool fiber or chemical fibers.

★ Can equipped with villus bucket or hopper to improve the quality of output sliver/web

★ It can produce web or sliver according to customer's selection.

Packing & Delivery

Packaging
Size(cm)	180(L) * 110 (W) * 110 (D)
Weight	650 Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.
